Industrial-Grade 5-Axis CNC Compound Mitre Saw
This 5-Axis CNC Compound Mitre Saw redefines precision in profile fabrication, offering complete servo-driven control over mitre, bevel, and compound angle cuts. Engineered for high-end curtain wall, aluminum, and UPVC window manufacturing, it automates complex cutting sequences with ±0.1mm accuracy. The intelligent CNC interface and robust pneumatic clamping system ensure burr-free finishes, zero material waste, and maximum throughput. Designed for industries demanding flawless joints and repeatable accuracy, this machine is the ultimate solution for modern architectural metalworking.
Manufactured by Lebulang Machine, a specialized China-based manufacturer with close to 30 years of factory experience in window and door processing machinery, this 5-axis CNC compound mitre saw is designed for cutting aluminum profiles used in cabinet frames, curtain wall facades, and architectural extrusions. The machine covers horizontal miter angles from 22.5° outward to 135° inward and vertical bevel angles from 45° to 90°, allowing compound angle cuts in a single operation.
This 5-Axis CNC Compound Mitre Saw redefines precision in profile fabrication, offering complete servo-driven control over mitre, bevel, and compound angle cuts. Engineered for high-end curtain wall, aluminum, and UPVC window manufacturing, it automates complex cutting sequences with ±0.1mm accuracy. The intelligent CNC interface and robust pneumatic clamping system ensure burr-free finishes, zero material waste, and maximum throughput. Designed for industries demanding flawless joints and repeatable accuracy, this machine is the ultimate solution for modern architectural metalworking.
22.5°--135° Aluminum Cabinet Frame Features & Benefits
1. 5-Axis CNC Intelligent Control System
- Equipped with industrial CNC controller and brushless servo motors for all 5 axes, ensuring smooth, precise, and repeatable movements.
- 15-inch touchscreen with user-friendly interface: Program angles, lengths, and cutting modes in minutes; supports USB/LAN data transfer.
- Built-in auto-compensation for length and angle errors, eliminating manual adjustments and reducing material waste.
2. Unmatched Angle Versatility (22.5°--135°)

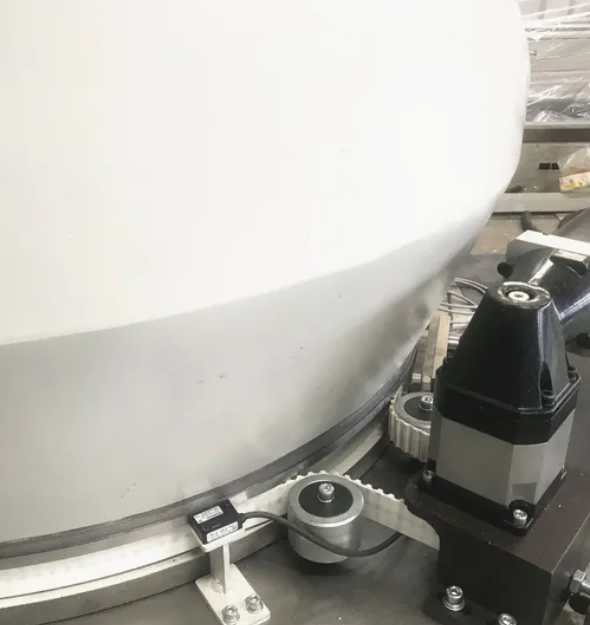

- Horizontal rotation: 22.5° (outward) to 135° (inward) for unlimited miter angle combinations.
- Vertical tilt: 45°--90° for bevel cuts, enabling complex 2D compound angle cutting in one pass.
- Perfect for aluminum cabinet frame corners, door frame miters, and custom architectural profiles.
3. Dual-Head High-Efficiency Cutting

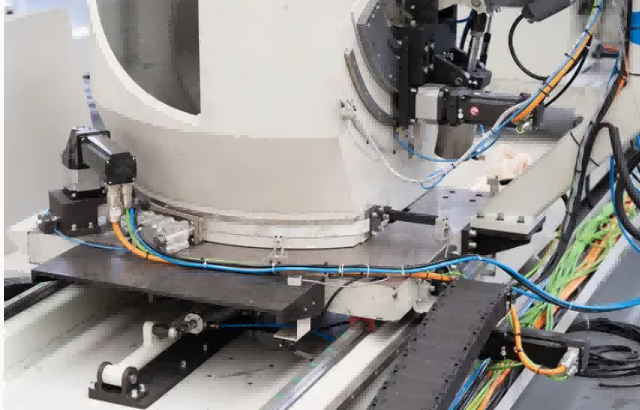

- Two independent cutting heads (fixed left, motorized right) with synchronous or individual operation.
- Max cutting length: 6000mm; handles large aluminum profiles for cabinet frames and curtain walls.
- Up-stroke cutting cycle with radial feed: Combines pivoting and linear movements for maximum cutting capacity.
Key Features
Complete control over saw head rotation, tilt, and profile positioning eliminates manual adjustments, ensuring consistent precision across complex angles.
Unmatched Cutting Accuracy
Achieves ±0.1mm positional accuracy, delivering perfect mitre, bevel, and compound cuts for high-end architectural projects.
Intelligent CNC Interface
A user-centric touchscreen control system simplifies programming, stores cutting patterns, and reduces operator training time.
Superior Surface Finish
High-speed carbide-tipped blades combined with vibration-damping construction produce clean, burr-free cuts that require no secondary processing.
Robust Pneumatic Clamping
Multi-point clamping secures profiles firmly during cutting, minimizing vibration and maximizing safety.
Heavy-Duty Industrial Build
A reinforced steel frame and anti-corrosion coating ensure long-term stability, even in high-volume production environments.
Optimized for Efficiency
Automated workflows and rapid cutting cycles significantly increase daily output while reducing material waste.
22.5°--135° Aluminum Cabinet Frame
| Model NO. | LBL2H-5CNC-600*6000 |
| Automatic Grade | Automatic |
| CNC or Not | CNC |
| Voltage | 380V |
| Double-Head Cutting Saw CNC | Aluminum Window and Door |
| Application Industry | Curtain Wall Facade Manufacture Industry |
| CNC Axis Number | 5 |
| Sawing Blade Feeding Direction | From Bottom Side |
| Sawing Blade Diameter | 600mm |
| Aluminum Raw Material Length Maximum | 5000mm |
| Servo System | Schneider |
| Transport Package | Standard Export Package |
| Specification | Double-Head Cutting Saw CNC |
| Trademark | Tianchen |
| Origin | Jinan, Shandong, China |
| HS Code | 84614090 |
Application
This 5-Axis CNC Compound Mitre Saw is widely used in:
Curtain wall and facade profile fabrication
Aluminum window and door manufacturing
UPVC / PVC window profile cutting
Industrial aluminum extrusion processing
Composite material profile cutting
High-precision metal fabrication workshops
Why Choose Us
Professional CNC Machine Manufacturer
Over 10 years of experience in CNC cutting machinery for window, door, and facade industries.
Strict Quality Inspection
Every machine undergoes full-function testing and precision calibration before delivery.
Global Export Experience
Machines supplied to Europe, Southeast Asia, the Middle East, and South America.
Customization Capability
Voltage, cutting length, blade size, and software functions can be tailored to your production needs.
Comprehensive After-Sales Support
Remote technical support, operation training videos, and spare parts supply ensure long-term reliability.
5-Axis CNC Compound Mitre Saw 22.5°--135° Aluminum Cabinet Frame Technical Parameters
- ☆ Power supply voltage: 380V±10% 50Hz±2% three-phase four-wire system
- ☆ sawing motor power: 3kW 2800rpm
- ☆ Working pressure: 0.6~0.8MPa
- ☆ Saw blade specifications: Φ600 × Φ38 × 4.8 × 4.2 × 144P
- ☆ Saw blade angle: 45°~90° arbitrary angle
- ☆ Table rotation angle: 45 ° ~ 135 ° arbitrary angle
- ☆ Cutting Section range: 200mm × 200mm (cutting angle at 90°, width × height, see the cutting section range)
- ☆ Cutting length: 700mm~5000mm (90°)
- ☆ Blade feed rate: 0~3m/min
- ☆ Cutting surface roughness: ≤ Ra12.5μm
FAQ
5-Axis CNC Servo Control
Fully automated control of saw head rotation, tilt, and profile positioning ensures precise compound angle cutting without manual adjustment.
High-Precision Cutting Performance
Delivers ±0.1mm accuracy with clean, burr-free cuts, ideal for high-end aluminum and UPVC profile fabrication.
Compound Mitre & Bevel Cutting
Supports complex angle combinations, including mitre, bevel, and compound cuts, for curtain wall and architectural profiles.
Pneumatic Profile Clamping System
Multi-point clamping ensures stable and secure holding during cutting, minimizing vibration and improving safety.
Industrial-Grade Machine Structure
Heavy-duty steel frame with anti-corrosion coating provides long-term stability and durability in demanding workshop environments.
User-Friendly CNC Interface
Intuitive touchscreen control with pre-set cutting programs simplifies operation and reduces training time.
High-Speed Cutting Efficiency
Optimized spindle and servo system enable fast cutting cycles, increasing daily output for window and door manufacturers.
Safety Protection System
Equipped with safety guards, emergency stop, and automatic fault alarm to ensure operator safety
