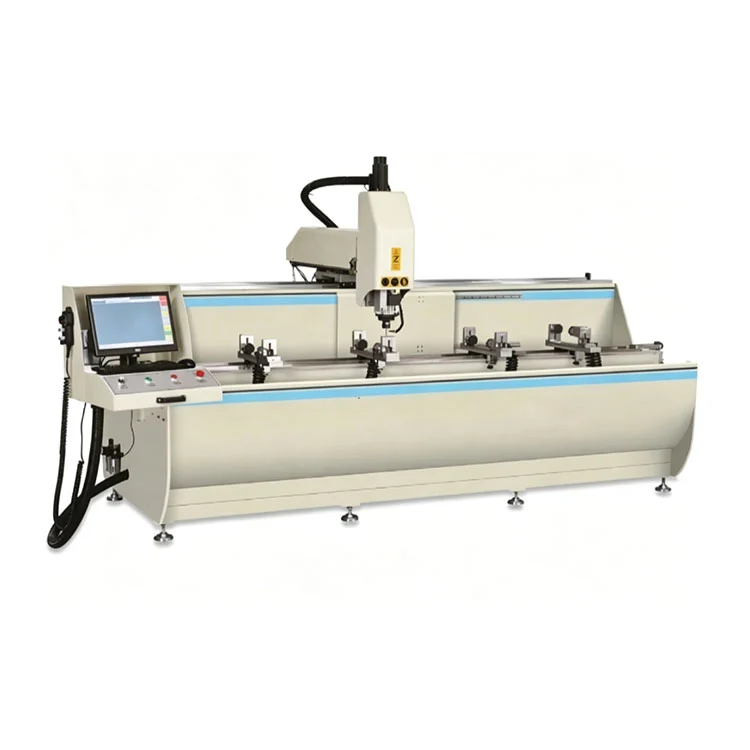

3 Axis CNC Aluminum Profile Machining Center for Curtain Wall Facade

3 Axis CNC Aluminum Profile Machining Center for Curtain Wall Facade is a professional, high-efficiency CNC processing equipment specially developed for the curtain wall and building facade industry. It integrates drilling, milling, tapping, grooving, and end-milling functions, and completes all processing of aluminum curtain wall profiles in one clamping, which greatly improves production efficiency, ensures consistent processing accuracy, and is the core equipment for mass production of unitized curtain walls, stick curtain walls, and building facade aluminum components. Shandong Lebulang Precision Machinery Co., Ltd. is located in Jinan, our Brand is LBL. hope to cooperate with you.

High Precision 3 axis Aluminum Window Door Facade Curtain Wall CNC Profile Machining Center Price China

1. Glasino CNC high-speed drilling and milling center is suitable for aluminum doors and windows and curtain wall installation hole, water tank, and the keyhole shaped hole, tapping and end milling.
2. Using the German PA control system, the intelligent CNC system and the simple and intuitive human-computer interface make the operation more convenient and quick.
3. Inside blades storage can hold 6-8 sets blade.
4. 1200mm/3000mm/3200mm/3500mm/4000mm Workbench can turn 180°, -90°~0 °~+90°; It can realize three-sides processing by clamping one time; it can process deep and special-shaped holes through workbench; high efficiency and precision.

3 Axis CNC Aluminum Profile Machining Center for Curtain Wall Facade Features & Advantages

1. High-Performance 3-Axis Linkage System

Adopt X/Y/Z 3-axis full linkage design, equipped with high-precision HIWIN linear guide rails and ball screws, matched with Japan Yaskawa / Taiwan Delta servo motors, to achieve fast and stable positioning, positioning accuracy ±0.08mm, repeat positioning accuracy ±0.05mm, fully meeting the high-precision processing requirements of curtain wall profile connection holes, mounting holes, and lock holes.

2. Powerful High-Speed Spindle

Standard 9kW high-speed electro-spindle (12kW optional), maximum speed up to 24000RPM, ISO30 taper, strong cutting capacity, stable operation at high speed, no chatter, can complete high-quality drilling, milling, tapping of aluminum alloy profiles, and the processed surface is smooth and burr-free, no secondary polishing is required.

3. Efficient Automatic Tool Changer (ATC)

Standard 10-position linear tool magazine (12/16 positions optional), fast tool change speed <2 seconds, one-time clamping can complete the processing of multiple processes with different tools, no need to manually change tools frequently, greatly reduce non-processing downtime, and improve the overall production efficiency by more than 60% compared with traditional equipment.

Technical Specifications

FAQ

1. Are you a factory or a trading company?

We are one factory making door and window equipment, and is a well-known supplier of door and window equipment in the industry. Our company specializes in producing two series of products: high-end aluminum alloy equipment and insulated glass equipment. It is a high-tech enterprise that integrates research and development.

2. How long is the equipment warranty?

One year.

3. How to provide after-sales service?

Provide on-site installation, commissioning and training. Free accessories within one year. Provide remote service and video guidance.

4. How long is the delivery time?

30days after receive the deposit.
