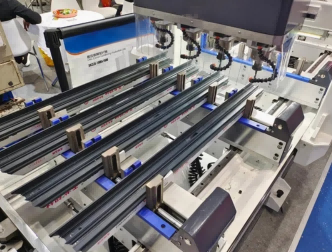

High-Precision 4-Head CNC Aluminum Curtain Wall Drilling Machine
.This 4-Head CNC Aluminum Curtain Wall Drilling Machine is engineered for high-precision, high-efficiency drilling of aluminum curtain wall profiles and facade components. Equipped with four independent CNC-controlled drilling heads, it delivers simultaneous multi-point drilling operations with exceptional accuracy and repeatability. Designed as a compact yet heavy-duty alternative to larger 8-head systems, this machine is ideal for manufacturers seeking to balance throughput, floor space, and investment cost.
This 4-Head CNC Aluminum Curtain Wall Drilling Machine is engineered for high-precision, high-efficiency drilling of aluminum curtain wall profiles and facade components. Equipped with four independent CNC-controlled drilling heads, it delivers simultaneous multi-point drilling operations with exceptional accuracy and repeatability. Designed as a compact yet heavy-duty alternative to larger 8-head systems, this machine is ideal for manufacturers seeking to balance throughput, floor space, and investment cost.
Technical Specifications
| Item | Parameter |
| Model | 8‑Head CNC Aluminum Curtain Wall Drilling Machine |
| Number of heads | 8 pcs（0.75 kW each） |
| Power supply | 380V / 50Hz / 3‑phase |
| Max drilling diameter | 13 mm |
| Drilling feed stroke | 125 mm |
| Working air pressure | 0.5--0.8 MPa |
| Max profile section | 250×250 mm |
| Max processing length | 5000 mm |
| Min distance between holes | 350 mm |
| Working table size | 300×300 mm |
| Overall dimension（L×W×H） | 5500×1100×1800 mm |
| Factory place | Jinan City |
Key Features（产品特点）
Four Independent CNC Drilling Heads — Each head operates with independent CNC control, enabling simultaneous drilling at multiple positions without manual repositioning.
High-Speed Spindle Motors — Equipped with high-RPM precision spindles for clean, burr-free holes in aluminum profiles.
Automatic Profile Positioning — Servo-driven positioning system ensures accurate and repeatable hole placement across long profiles.

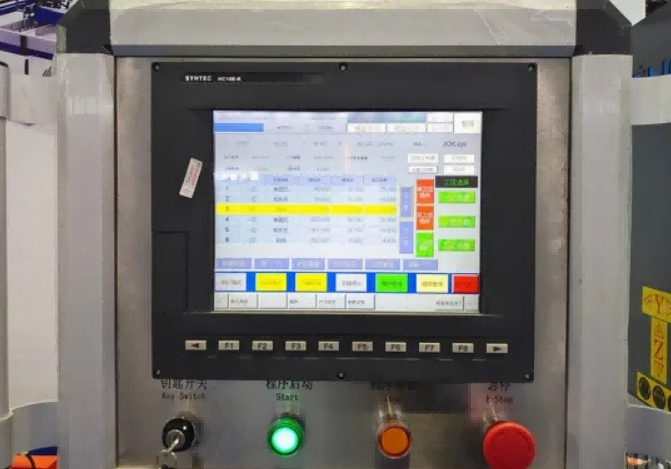

User-Friendly CNC Interface — Intuitive touchscreen control panel with pre-loaded drilling patterns and easy program editing.
Heavy-Duty Machine Frame — Rigid welded steel construction minimizes vibration and maintains accuracy under continuous operation.
Compact Footprint — Space-saving design fits smaller workshops while delivering output comparable to larger machines.
Multi-Function Capability — Supports drilling, tapping, and light milling operations on aluminum curtain wall profiles.
Quick Tool Change System — Reduces downtime between different drilling tasks and profile types.
Applications
Aluminum curtain wall mullions and transoms drilling
Architectural facade profile fabrication
Window and door frame production
Aluminum cladding panel processing
Custom architectural aluminum components
Industrial aluminum extrusion machining
FAQ
1. Are you manufacturer?
Yes, we are the professional manufacturer with more than 30 years experience in this area.
2. What's the delivery time for the machines?
Normal machines our delivery time is 20 days after getting deposit, customized machines should confirm with our sales persons.
3. How about the after-sale service?
- 1). reply it at once when machines break down, it reply it within 12 hour
- 2). if clients need, we can appoint engineers to help install the machines and train the workers
4. What's the guarantee time?
- 1). All machines guarantee time is one year, not including wearing parts.
- 2). If machines parts broken, we will give for free, but clients should afford courier fees.
- 3). 24 hours on line service each day, free technical support.
5. Do you provide equipment operation training?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. Also support online training.
6. What is the payment terms?
Any payment method you want, such as T/T, L/C and so on.
