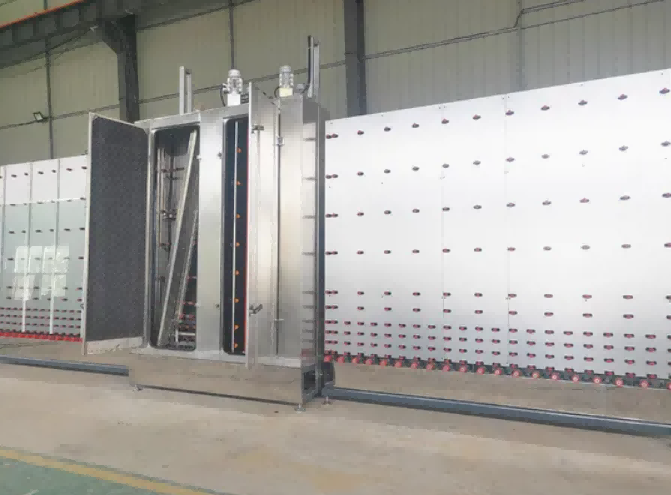

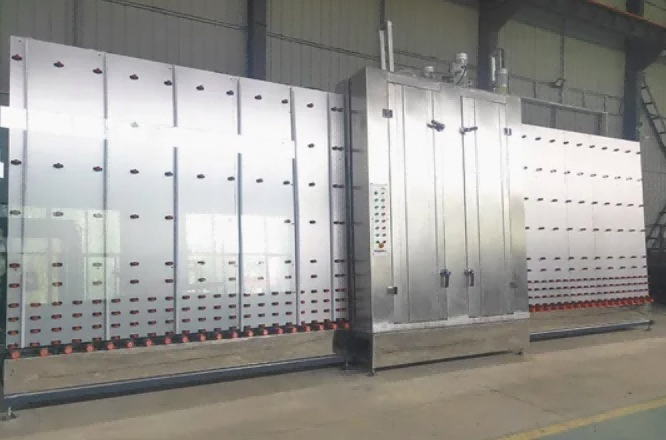

High-Efficiency​ 1800 Vertical Washing Drying Machine for Insulated and Tempered Glass

Key Features

Maximum Working Width: 1800mm, accommodating standard architectural glass sizes

Vertical Conveyor Design: Space-saving and easy to integrate with existing production lines

Stainless Steel Construction: Corrosion-resistant body for long service life and easy maintenance

Multi-Stage Cleaning System: Brush scrubbing, high-pressure water rinsing, and demineralized water final rinse

Hot Air Circulation Drying: Efficient and uniform drying across the entire glass surface

Low-E Compatible Option: Gentle brush and water pressure settings protect low-emissivity coatings

Adjustable Speed Control: Variable conveyor speed to match different production requirements

Automatic Operation: PLC-controlled system for consistent, unattended performance

Energy Efficient: Optimized water and power consumption reduce operating costs

Control and Energy Use

• PLC with HMI: A touchscreen interface provides access to washing speed, brush pressure, water temperature, air knife heater settings, and alarm logs. Operators can save parameter sets for different glass types and recall them when changing production batches.
• Variable frequency drive: The main conveyor motor is inverter-driven, with speed adjustable from 0 to 8 m/min. This allows the operator to match the feed rate to the required cleaning intensity and the downstream process speed.
• Installed power: Total power consumption is 15 kW, distributed across brush motors, water pumps, heating elements, and the air knife blower. Energy use is reduced in standby mode when no glass is detected on the conveyor.

Low-E and Coated Glass Handling

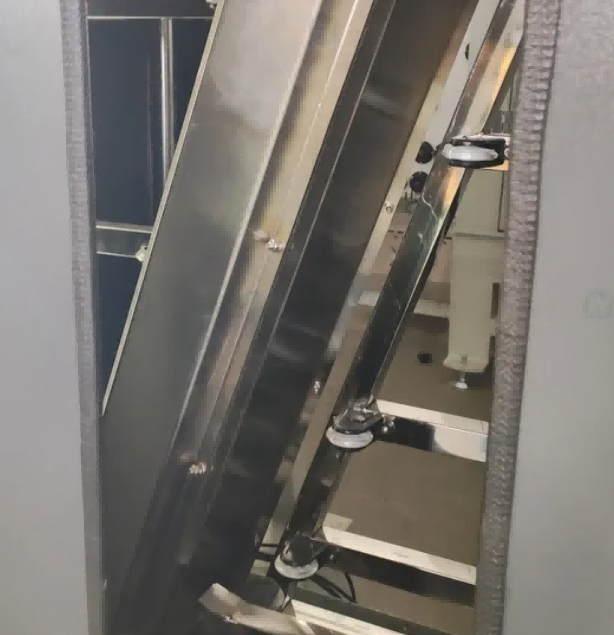

• Adjustable brush pressure: The brush height and contact pressure can be reduced for sensitive Low-E or coated glass surfaces. Soft-bristle brush sets are available as an option. This allows the machine to clean coated glass without removing or degrading the functional layer, provided the correct parameters are set.

Technical Specifications

Applications

The 1800 Vertical Washing and Drying Machine for Insulated and Tempered Glass is used in glass processing plants for cleaning flat glass before further manufacturing steps:

• Architectural curtain walls: Prepares large-format glass panels for structural glazing and insulating glass unit assembly.
• Insulated glass production: Performs the cleaning step before spacer placement and butyl coating, where surface contamination could weaken the primary seal.
• Tempered and laminated glass: Removes dust and residues prior to heat treatment or lamination to reduce the risk of surface defects and optical distortion.
• Automotive and specialty glass: Suitable for windshields, sunroofs, and decorative glass where a particle-free surface is required.

Why Choose Us?

Shandong Lebulang Precision Machinery Co., Ltd., operating as Lebulang Machine, has manufactured glass and window processing equipment at its Jinan facility since 1996. The company handles R&D, machining, assembly, testing, and sales in-house, supplying equipment directly from the factory. The 1800 Vertical Washing Drying Machine for Insulated and Tempered Glass is built under this integrated structure, with CE and ISO 9001 certification. A one-year warranty applies to the machine structure, and remote technical support is provided for the lifetime of the equipment. Spare parts are stocked and can be dispatched with regular freight. Detailed operation manuals and video guidance are included with each delivery.

FAQ

Q1: Can this machine safely wash Low-E or coated glass?

Yes. The 1800 Vertical Washing and Drying Machine allows adjustment of brush height and pressure. Soft-bristle brush sets are available as an option, and with the correct settings the cleaning process does not remove or degrade the functional coating.

Q2: What is the maximum glass size this model can handle?

The maximum glass size is 1800 mm wide by 2500 mm high, which covers common commercial and residential insulating glass unit dimensions.

Q3: How does the vertical design benefit insulated glass production?

Vertical washing allows water to drain off the glass surface by gravity during the rinse and drying stages. This reduces the likelihood of water pooling, which can leave residue after drying. A dry surface before butyl coating and assembly helps maintain the integrity of the primary seal.

Q4: Do you provide installation and technical support?

Shandong Lebulang Precision Machinery provides English-language manuals and installation videos. Remote guidance is available, and on-site installation support can be arranged at additional cost if required.

Q5: What is the power consumption of this machine?

The total installed power is 15 kW. Actual consumption depends on the selected water heating temperature, conveyor speed, and how many brush and blower motors are active during operation.
