High-Precision 800mm Heavy-Duty CNC Machining Center for Industrial Aluminum Profiles

Product Summary

The 800mm CNC machining center is purpose-built for industrial aluminum profiles, system window/door sections, curtain-wall extrusions, and light metal frames. It completes drilling, milling, slotting, chamfering, tapping and surface machining in one clamping — no manual repositioning between stations, no accumulated tolerance from repeated fixturing. Compact footprint, servo-driven axes, and an aluminum-optimized spindle make it a practical upgrade from standalone drill presses, manual mills and hand deburring.

Overview

Unlike a steel-jobbing VMC retrofitted for aluminum, this machine starts from the aluminum profile workflow: long stock, thin walls, tight hole patterns, clean end faces, fast feed rates. The reinforced machine body and stress-relieved frame keep vibration low, while the high-speed electric spindle removes aluminum cleanly without burning the section or leaving heavy burrs.

For workshops running short- to medium-length profiles, hardware brackets, connector plates, frame nodes and curtain-wall fittings, the 800mm stroke is the sweet spot — enough working length for most fabricated parts, small enough to sit beside your cutting and assembly line.

Technical Specifications



Key Features

Aluminum-first 3-axis design — optimized spindle speed, feed logic and chip evacuation for 6061 / 6063 extrusions

One-clamping multi-process — drill, mill, tap, countersink, chamfer and engrave without moving the profile

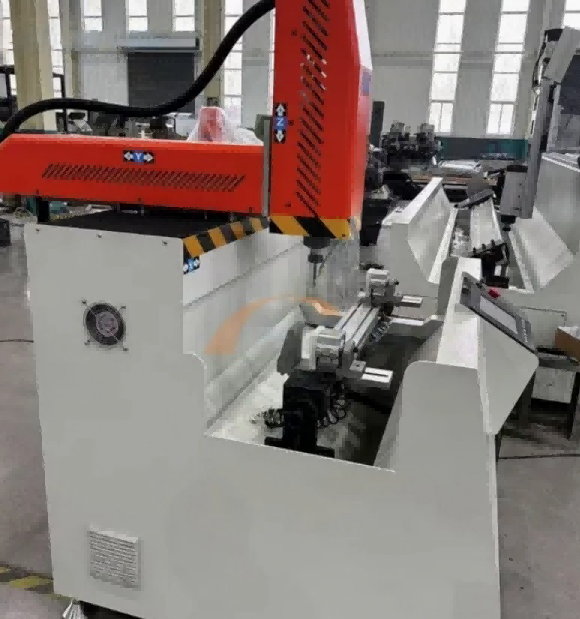

Tilting / rotatable worktable (-90° / 0° / +90°) — top and both side faces machined in a single setup

Servo-driven X/Y/Z — stable positioning, repeatable hole patterns, smooth contour milling

High-speed electric spindle — air-cooled or liquid-cooled options, tuned for aluminum chip load

Graphic CNC programming — select hole/slot type, enter dimensions, generate toolpath; CAD/G-code import on request

Pneumatic profile clamps — fast loading, secure holding, minimal deformation on thin-wall sections

Mist / spray cooling — keeps cutter cool, clears long aluminum swarf, protects anodized or powder-coated surfaces

Compact industrial build — fits window-door shops, facade workshops, automation-frame makers and OEM profile processors

Machining Capabilities

Round holes, oblong holes, keyholes, square holes, special-shape cutouts

End-face milling and squaring

Slot milling, hinge pockets, lock cases, hardware holes

Thread tapping (optional rigid tapping)

Chamfering, countersinking, light engraving

Deep through-holes via table tilt

Short industrial extrusions, bracket plates, T-slot rails, machine-frame nodes

800mm CNC Machining Center for Industrial Aluminum Profiles Intelligent CNC Control System, Easy Operation For Non-Professional Workers

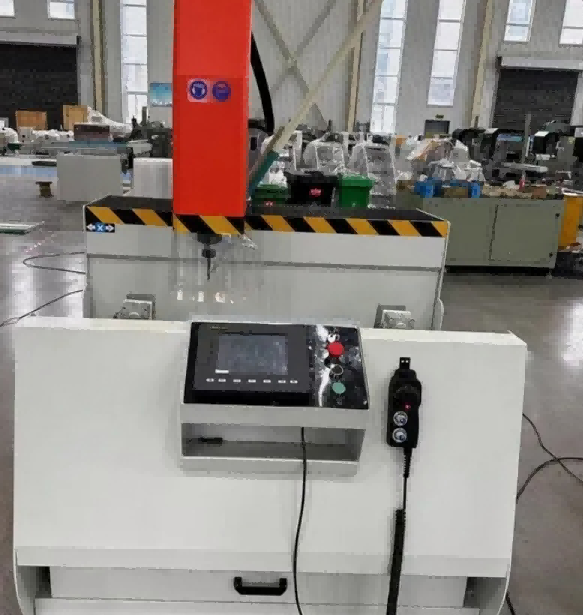

• 10-inch multi-language touch screen CNC controller (English, Spanish, Arabic, Russian optional)
• Built-in dedicated aluminum profile process library: pre-stored parameters for curtain wall connectors, window hinge holes, solar bracket mounting holes, one-click call
• Support DXF CAD drawing import via USB flash drive, system auto-generates NC machining program without complex manual programming
• Optional remote IoT module: online remote debugging, fault diagnosis and production data statistics 24/7

800mm CNC Machining Center for Industrial Aluminum Profiles

We are one leading enterprise located in Jinan, China, specializing in the design, manufacturing, and distribution of high-quality Aluminum window door machine, UPVC window door machine, Glass processing machine. Our company is committed to providing innovative and customized solutions to meet the diverse needs of our global clientele.

Products and Services: We offer a comprehensive range of machinery that caters to the manufacturing of aluminum and UPVC windows, as well as double glazing solutions. Our products are engineered for precision, efficiency, and durability, ensuring that our customers can produce high-quality windows that meet international standards.

Market Presence: Our advanced machinery has found extensive applications across North America, South America, Europe, the Middle East, and other regions. Our global presence is a testament to our commitment to quality and customer satisfaction.

Research and Development: we place a strong emphasis on research and development. Our dedicated R&D team works tirelessly to innovate and enhance our product offerings.

Customization Capabilities: Understanding that every customer has unique requirements, we offer tailored solutions to address specific production needs.

FAQ

1. Technical training

Operation training: Provide equipment operation training to customers' operators to ensure that they can use the equipment correctly and safely.

Maintenance training: Provide equipment maintenance and maintenance training to customers' maintenance personnel to improve the service life and reliability of equipment.

2. Maintenance and maintenance

Regular inspection: Provide regular equipment inspection services to discover and solve potential problems and prevent failures.

Preventive maintenance: Provide preventive maintenance suggestions and services based on the use and characteristics of the equipment.

3. Maintenance services

Quick response: Establish a quick response mechanism to handle customer maintenance requests in a timely manner.

Remote support: Provide remote technical support through telephone, video and other means to solve equipment failures.

Spare parts supply: Ensure the timely supply of spare parts and reduce downtime caused by spare parts shortages.

4. Technical support and consulting

24/7 support: Provide round-the-clock technical support and consulting services to answer customer questions at any time.

Provide technical information, FAQs and real-time consultation.

5. Warranty service

Warranty period: longer warranty time - 12 months, provide lifelong after-sales service.
