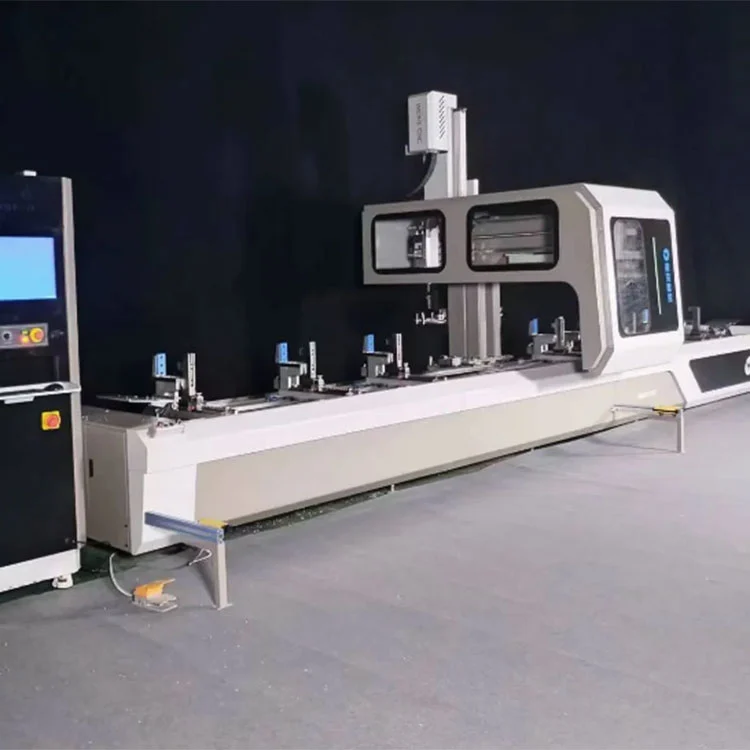

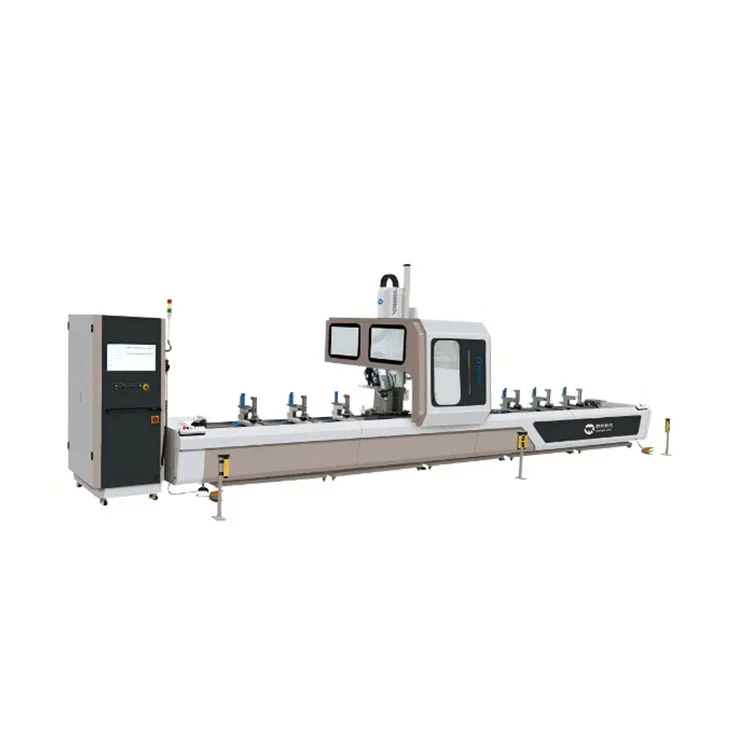

4-Axis CNC Curtain Wall Drilling Milling Center
4-Axis CNC Curtain Wall Drilling Milling Center is one high end multi functional CNC machine designed for aluminum curtain wall, window & door, and industrial profile processing. Famous Lebulang brand is one China machine Manufacturer, Featuring 4 axis linkage (X/Y/Z + A rotation), it completes drilling, milling, tapping, grooving, and end milling in a single setup, ideal for complex facade and unitized curtain wall projects.
Technical Specifications
| Item | Parameter |
| Model | 4-Axis CNC Curtain Wall Drilling Milling Center |
| Number of Axes | 4 (X, Y, Z + A‑rotary axis) |
| Spindle Power | 9 kW / 12 kW (optional) |
| Spindle Speed | 0--24,000 RPM |
| Tool Magazine | 12 positions (standard) |
| Max Drilling Diameter | 16 mm |
| X‑Axis Travel | 7,000 mm (optional 9,000 mm) |
| Y‑Axis Travel | 600 mm |
| Z‑Axis Travel | 400 mm |
| A‑Axis Rotation | ‑90° ~ +90° |
| Max Profile Size | 300 × 300 mm |
| Working Air Pressure | 0.6--0.8 MPa |
| Power Supply | 380V / 50Hz / 3‑phase |
| Overall Dimension (L×W×H) | 7,500 × 1,800 × 2,000 mm |
| Service | Good service, high quality, good price |
4-Axis CNC Curtain Wall Drilling Milling Center
- • 4‑Axis Linkage System: X/Y/Z linear + A‑axis rotation (‑90°~+90°), enables multi‑face & angular machining without repositioning.
- • Powerful Spindle: 9--12 kW high‑speed electro‑spindle (24,000 RPM), ISO30 taper, heavy‑duty cutting.
- • Automatic Tool Changer (ATC): Standard 10--12 tool positions, fast tool change (<2 sec), reduces downtime.
- • Precision Motion Components: HIWIN linear guides, ball screws, servo motors; positioning accuracy ±0.08 mm.
- • Heavy‑Duty Structure: Welded steel frame with vibration aging; cast iron beam for stability.
- • Dual Working Area: Two independent zones for interactive loading/unloading, non‑stop production.
- • Advanced CNC System: Siemens 808D / Taiwan SYNTEC; 3D programming, DXF import, offline simulation.

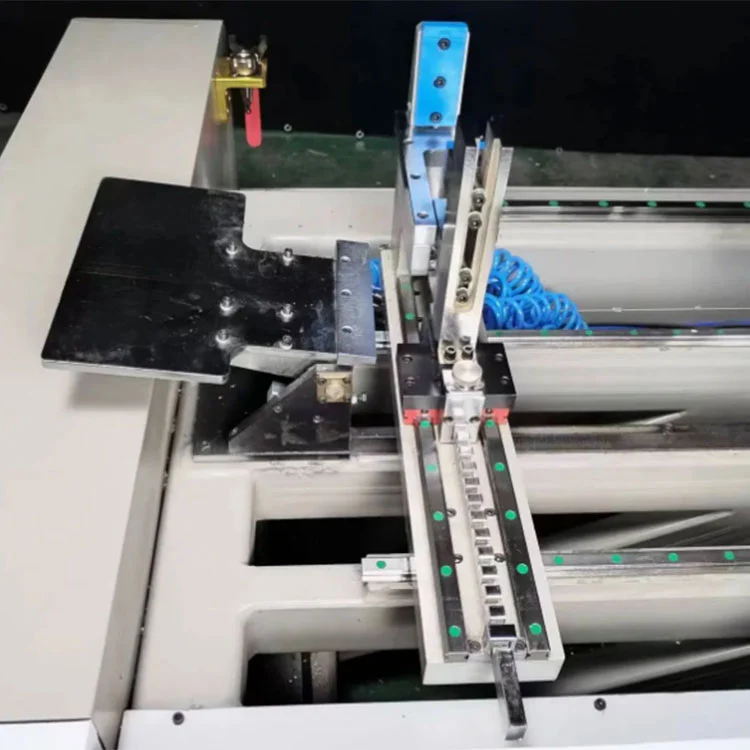

- • Profile Protection: Stationary workpiece design avoids surface damage; pneumatic adjustable fixtures.
FAQ
Q: What's the difference between 3‑axis and 4‑axis?
A: 4‑axis adds a rotary A‑axis, enabling ‑90° to +90° angular machining; one setup for all sides, no re‑clamping.
Q: Can it process long profiles?
A: Yes. Standard 7,000 mm X‑stroke, extendable to 9,000 mm for extra‑long curtain wall profiles.
Q: Is training included?
A: Yes. We provide free online/offline training for operation, programming, and maintenance.
