5-Axis CNC Window & Door Profile Cutting Saw

22.5°--135° Aluminum Cabinet Frame Features & Benefits

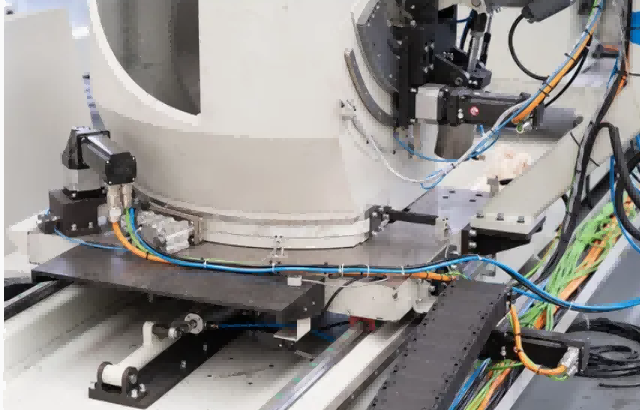

1. 5-Axis CNC Intelligent Control System

• Equipped with industrial CNC controller and brushless servo motors for all 5 axes, ensuring smooth, precise, and repeatable movements.
• 15-inch touchscreen with user-friendly interface: Program angles, lengths, and cutting modes in minutes; supports USB/LAN data transfer.
• Built-in auto-compensation for length and angle errors, eliminating manual adjustments and reducing material waste.

2. Unmatched Angle Versatility (22.5°--135°)

• Horizontal rotation: 22.5° (outward) to 135° (inward) for unlimited miter angle combinations.
• Vertical tilt: 45°--90° for bevel cuts, enabling complex 2D compound angle cutting in one pass.
• Perfect for aluminum cabinet frame corners, door frame miters, and custom architectural profiles.

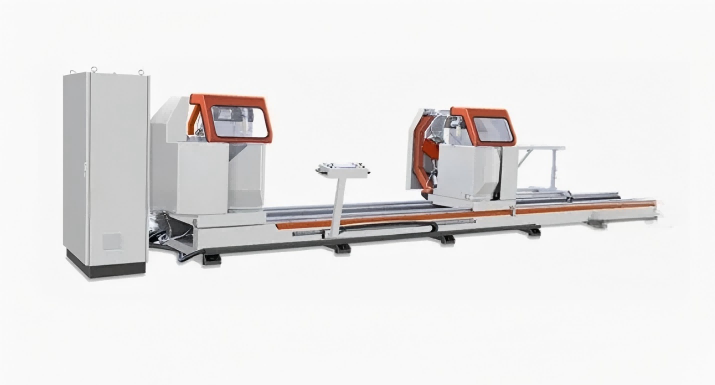

3. Dual-Head High-Efficiency Cutting

• Two independent cutting heads (fixed left, motorized right) with synchronous or individual operation.
• Max cutting length: 6000mm; handles large aluminum profiles for cabinet frames and curtain walls.
• Up-stroke cutting cycle with radial feed: Combines pivoting and linear movements for maximum cutting capacity.

Key Features

Complete control over saw head rotation, tilt, and profile positioning eliminates manual adjustments, ensuring consistent precision across complex angles.

Unmatched Cutting Accuracy

Achieves ±0.1mm positional accuracy, delivering perfect mitre, bevel, and compound cuts for high-end architectural projects.

Intelligent CNC Interface

A user-centric touchscreen control system simplifies programming, stores cutting patterns, and reduces operator training time.

Superior Surface Finish

High-speed carbide-tipped blades combined with vibration-damping construction produce clean, burr-free cuts that require no secondary processing.

Robust Pneumatic Clamping

Multi-point clamping secures profiles firmly during cutting, minimizing vibration and maximizing safety.

Heavy-Duty Industrial Build

A reinforced steel frame and anti-corrosion coating ensure long-term stability, even in high-volume production environments.

Optimized for Efficiency

Automated workflows and rapid cutting cycles significantly increase daily output while reducing material waste.



22.5°--135° Aluminum Cabinet Frame

5-Axis CNC Compound Mitre Saw 22.5°--135° Aluminum Cabinet Frame Technical Parameters

• ☆ Power supply voltage: 380V±10% 50Hz±2% three-phase four-wire system
• ☆ sawing motor power: 3kW 2800rpm
• ☆ Working pressure: 0.6~0.8MPa
• ☆ Saw blade specifications: Φ600 × Φ38 × 4.8 × 4.2 × 144P
• ☆ Saw blade angle: 45°~90° arbitrary angle
• ☆ Table rotation angle: 45 ° ~ 135 ° arbitrary angle
• ☆ Cutting Section range: 200mm × 200mm (cutting angle at 90°, width × height, see the cutting section range)
• ☆ Cutting length: 700mm~5000mm (90°)
• ☆ Blade feed rate: 0~3m/min
• ☆ Cutting surface roughness: ≤ Ra12.5μm

FAQ

Q1: What materials can this machine process?

A: It is optimized for aluminum, UPVC, and composite profiles. For steel or stainless steel, please contact us for a specialized model.

Q2: Can cutting programs be saved and reused?

A: Yes, the CNC system allows unlimited storage of cutting patterns, enabling fast recall for repeat orders.

Q3: Is operator training provided?

A: Yes. We supply detailed manuals, instructional videos, and remote training sessions to ensure a smooth start-up.

Q4: What is the typical lead time?

A: Standard machines require 15–25 working days. Customized CNC systems may require 25–35 working days.
