Precision 4-Head CNC Aluminum Curtain Wall Drilling Machine
Key advantages include automatic profile positioning, high-speed spindle motors, and a user-friendly CNC interface that minimizes setup time and operator skill requirements. The rigid machine frame and industrial-grade components ensure long-term reliability in demanding production environments. Whether you're fabricating standard curtain wall mullions, transoms, or custom architectural aluminum profiles, this 4-head drilling center offers the precision, flexibility, and cost-effectiveness required for modern aluminum facade manufacturing.
This 4-Head CNC Aluminum Curtain Wall Drilling Machine is engineered for high-precision, high-efficiency drilling of aluminum curtain wall profiles and facade components. Equipped with four independent CNC-controlled drilling heads, it delivers simultaneous multi-point drilling operations with exceptional accuracy and repeatability. Designed as a compact yet heavy-duty alternative to larger 8-head systems, this machine is ideal for manufacturers seeking to balance throughput, floor space, and investment cost.
Technical Specifications
| Item | Parameter |
| Model | 8‑Head CNC Aluminum Curtain Wall Drilling Machine |
| Number of heads | 8 pcs（0.75 kW each） |
| Power supply | 380V / 50Hz / 3‑phase |
| Max drilling diameter | 13 mm |
| Drilling feed stroke | 125 mm |
| Working air pressure | 0.5--0.8 MPa |
| Max profile section | 250×250 mm |
| Max processing length | 5000 mm |
| Min distance between holes | 350 mm |
| Working table size | 300×300 mm |
| Overall dimension（L×W×H） | 5500×1100×1800 mm |
| Factory place | Jinan City |
Key Features（产品特点）
Four Independent CNC Drilling Heads — Each head operates with independent CNC control, enabling simultaneous drilling at multiple positions without manual repositioning.
High-Speed Spindle Motors — Equipped with high-RPM precision spindles for clean, burr-free holes in aluminum profiles.

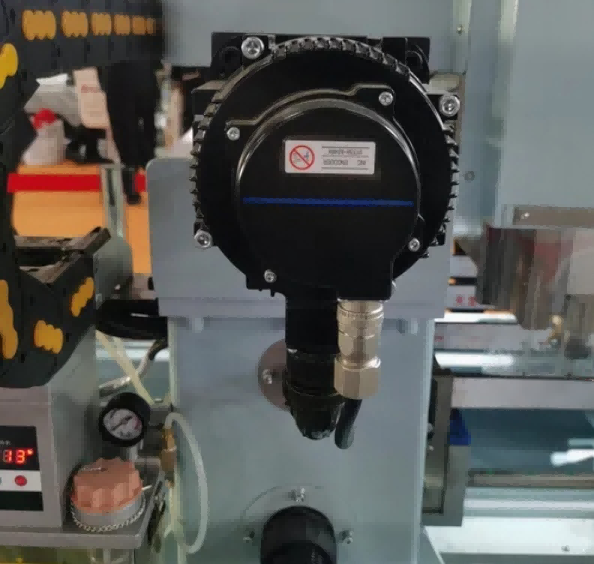

Automatic Profile Positioning — Servo-driven positioning system ensures accurate and repeatable hole placement across long profiles.

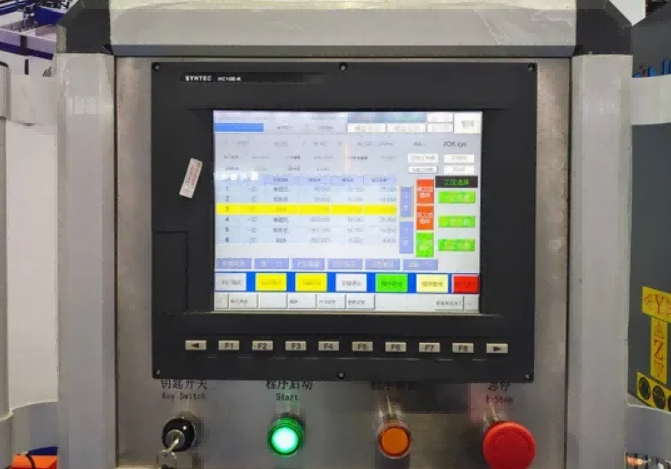

User-Friendly CNC Interface — Intuitive touchscreen control panel with pre-loaded drilling patterns and easy program editing.
Heavy-Duty Machine Frame — Rigid welded steel construction minimizes vibration and maintains accuracy under continuous operation.
Compact Footprint — Space-saving design fits smaller workshops while delivering output comparable to larger machines.
Multi-Function Capability — Supports drilling, tapping, and light milling operations on aluminum curtain wall profiles.
Quick Tool Change System — Reduces downtime between different drilling tasks and profile types.
Applications
Aluminum curtain wall mullions and transoms drilling
Architectural facade profile fabrication
Window and door frame production
Aluminum cladding panel processing
Custom architectural aluminum components
Industrial aluminum extrusion machining
Why Choose This Machine
1. Cost-Effective Alternative to 8-Head Models
Delivers comparable precision and automation at a lower investment cost and with less floor space required.
2. Proven Reliability
Built with industrial-grade components and a rigid frame to withstand demanding production schedules.
3. Easy Integration
Compatible with standard CAD/CAM software and existing production lines.
4. Comprehensive Support
Includes installation guidance, operator training, and after-sales technical support.
Optional Configurations
Extended profile length capacity (up to 8,000 mm or 12,000 mm)
Automatic tool magazine for multi-tool operations
Mist cooling system for extended tool life
Barcode scanning system for automated job recognition
Custom drill head spacing to match specific profile designs
Remote diagnostics and IoT connectivity
FAQ
Q: What is the difference between the 4-head and 8-head models?
A: The 4-head model is designed for compact production with moderate volume requirements, while the 8-head model is built for high-volume, continuous operations. The 4-head offers a more cost-effective entry point with a smaller footprint.
Q: Can this machine handle profiles longer than 6 meters?
A: Yes. The standard configuration supports up to 6,000 mm, but extended versions are available upon request.
Q: Is the machine suitable for materials other than aluminum?
A: It is optimized for aluminum alloys. With appropriate tooling, it can also process PVC and thin-wall steel profiles.
Q: What kind of training is provided?
A: We provide comprehensive operator training covering machine setup, program editing, routine maintenance, and troubleshooting.
