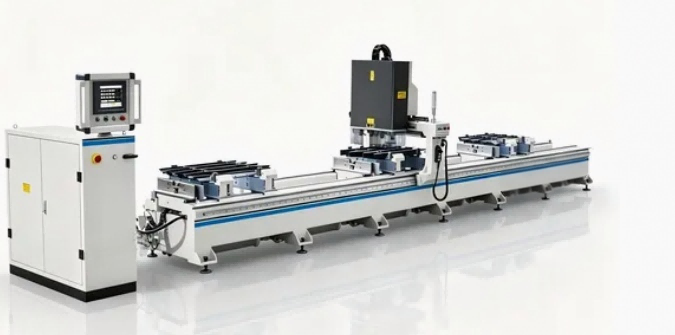

High-Precision Heavy-Duty 4-Head CNC Aluminum Curtain Wall Drilling Machine

Technical Specifications



What Makes It Different

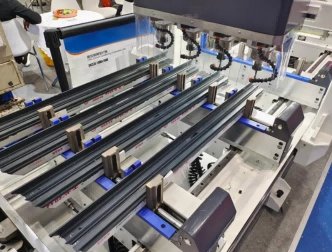

Four Heads. One Setup. Drill up to four holes simultaneously with independent CNC-controlled spindles. No manual repositioning. No wasted cycles.

Built for Aluminum Facade Work. From mullions and transoms to custom architectural profiles — this machine handles the full range of curtain wall drilling tasks with clean, burr-free results.

Compact Where It Counts. Half the floor space of an 8-head unit, same core precision. Perfect for shops that need high capability without sacrificing valuable production area.

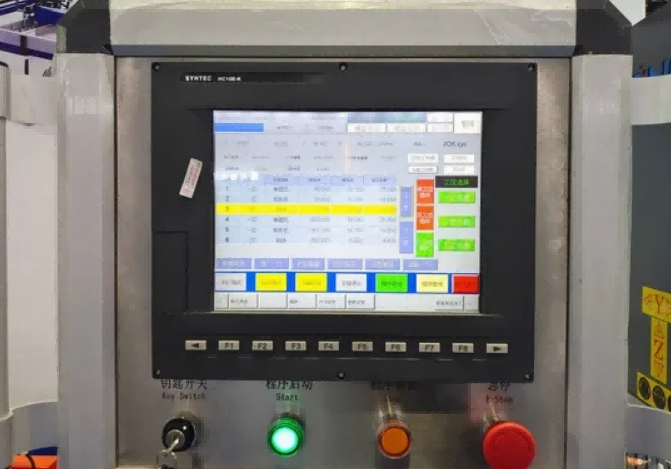

Operator-Friendly. Touchscreen CNC interface, pre-loaded drilling patterns, and straightforward program editing mean your team gets productive from day one — no specialized programming skills required.

Who It's For

Aluminum curtain wall fabricators upgrading from manual or semi-auto equipment

Window and door manufacturers adding facade capabilities

Job shops needing flexible, multi-point drilling without a full-scale machining center

Production facilities where floor space is at a premium

Optional Upgrades

Extended bed length (8m / 12m)

Automatic tool changer

Mist cooling system

Barcode job recognition

IoT remote monitoring

Why Buy From Us

Direct Manufacturer — no middleman markup

Factory Test Video provided before shipment

Installation & Training included

Spare Parts Support — fast shipping worldwide

Custom Configurations available on request

Why Choose This Machine

1. Cost-Effective Alternative to 8-Head Models

Delivers comparable precision and automation at a lower investment cost and with less floor space required.

2. Proven Reliability

Built with industrial-grade components and a rigid frame to withstand demanding production schedules.

3. Easy Integration

Compatible with standard CAD/CAM software and existing production lines.

4. Comprehensive Support

Includes installation guidance, operator training, and after-sales technical support.

Optional Configurations

Extended profile length capacity (up to 8,000 mm or 12,000 mm)

Automatic tool magazine for multi-tool operations

Mist cooling system for extended tool life

Barcode scanning system for automated job recognition

Custom drill head spacing to match specific profile designs

Remote diagnostics and IoT connectivity

FAQ

How does the 4-head compare to the 8-head model?

The 4-head delivers the same drilling accuracy in roughly half the footprint and at a significantly lower price point. Choose 8-head only if you're running high-volume, continuous-shift production.

Can it drill angles or just straight through-holes?

Standard configuration handles through-hole drilling. Optional angled drilling heads and light milling functions are available.

What software does it use?

Proprietary CNC control system with intuitive interface. Compatible with standard G-code. DXF import supported.

Lead time?

Typically 25–35 days from order confirmation to shipment.

Warranty?

12 months on mechanical and electrical components. Extended warranty options available.
