Fully Automatic Heavy Duty Curtain Wall Notching Saw

Overview

Product Overview

The Heavy Duty Curtain Wall Notching Saw is a robust, industrial-grade cutting machine purpose-built for high-precision notching of aluminum and UPVC curtain wall profiles. Designed for demanding fabrication environments, it combines a rigid structural frame with advanced CNC control to deliver repeatable accuracy, clean cuts, and long-term operational reliability.

Engineered to handle complex mullion and transom configurations, this machine streamlines the notching process for commercial facades, storefront systems, and architectural aluminum structures—significantly reducing manual labor while maintaining consistent, burr-free results.

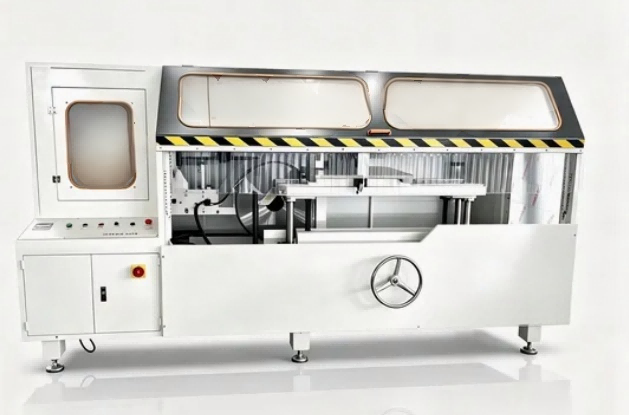

Heavy Duty Curtain Wall Notching Saw



Key Features

1. CNC Servo Precision

High-response servo drive system with programmable controller ensures positioning accuracy of ±0.1mm. Operators can store and recall multiple notch programs for rapid changeover between profile types.

2. Heavy-Duty Rigid Frame

Constructed from thick-walled steel with stress-relief treatment, the machine body resists vibration even during continuous high-speed operation—guaranteeing cut quality shift after shift.

3. Pneumatic Clamping System

Dual-action pneumatic cylinders provide secure, surface-safe clamping for anodized or powder-coated profiles. Quick-release function minimizes cycle time between workpieces.

4. Multi-Angle Notching

Adjustable cutting angles from 0° to 90° accommodate diverse curtain wall geometries. Angle adjustments are managed via digital readout or CNC interface for repeatable setup.

5. Integrated Chip Extraction

Built-in dust and chip collection port connects to standard industrial extraction systems, keeping the work area clean and extending blade service life.

6. Intuitive HMI

Touchscreen human-machine interface with multi-language support (English, Spanish, Russian, Arabic). Visual programming enables operators to input notch dimensions without specialized training.

How It Works

1. The operator places the aluminum profile onto the worktable and activates the pneumatic clamps, which secure the workpiece from both vertical and horizontal directions.

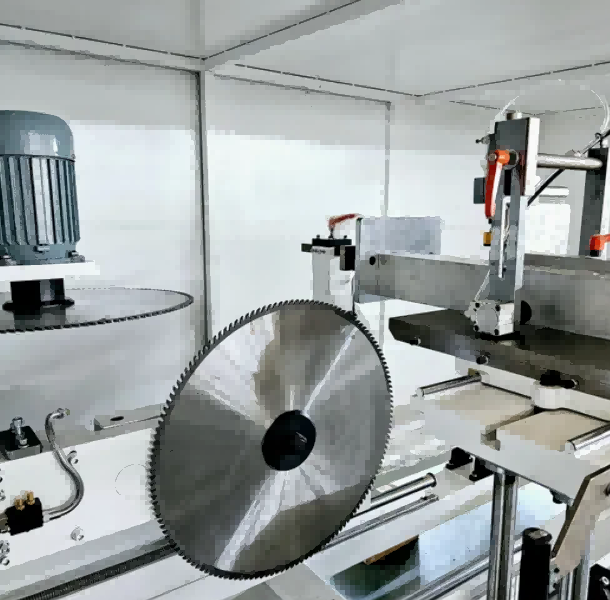

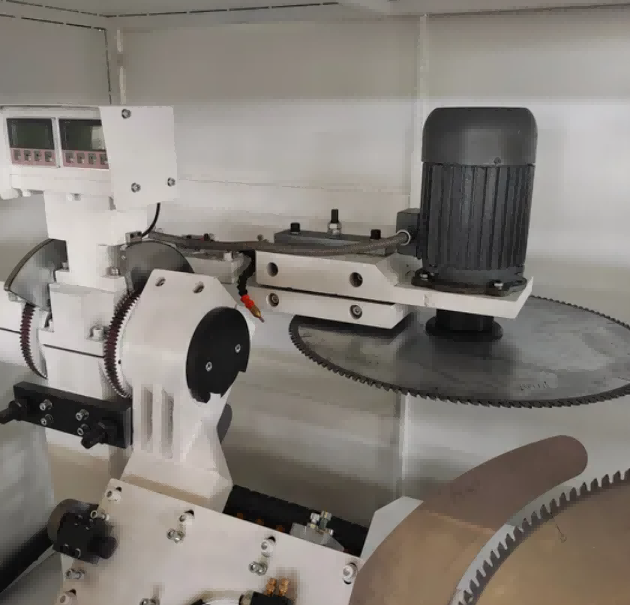

2. The desired cutting angle is set using the magnetic scale digital display, and the dual saw blades are positioned accordingly within the ±45° range.
3. The hydro-pneumatic feed system advances the spinning blades into the profile at a controlled rate (0–3 m/min), cutting notches, grooves, or compound angles in a single pass.
4. The CNC system supports CAD graphic import and graphic programming, allowing operators to define notch patterns, hole positions, and slot dimensions directly from design files.
5. The three-axis full servo motor configuration (X, Y, Z axes driven by rack and pinion and ball screws) enables true three-axis linkage for drilling, milling grooves, round holes, special-shaped holes, key holes, and countersinks in one clamping.
6. An optional three-sided flip worktable allows the profile to be machined on three faces without repositioning, improving processing efficiency for complex aluminum extrusions.
7. After the cutting cycle completes, the blades retract, the clamps release, and the machined profile is removed.

FAQ

Q: What types of profiles can this machine process?

A: It is designed primarily for aluminum curtain wall profiles but also handles UPVC and thin-wall steel extrusions with appropriate blades.

Q: Is training included?

A: Yes. We provide operation manuals, instructional videos, and remote video training for your operators. On-site training is available upon request.

Q: What is the warranty period?

A: [12] months from the date of shipment. Lifetime technical support and spare parts supply at cost price.

Q: Can the machine be integrated into an automated production line?

A: Yes. Optional automatic feeding and unloading systems are available for integration with upstream/downstream equipment.

Q: How do I choose the right saw blade?

A: We supply recommended blades based on your specific profile material and wall thickness. Replacement blades are available from our parts department.
