Premium 1600 Double Glazing Hot Press Machine

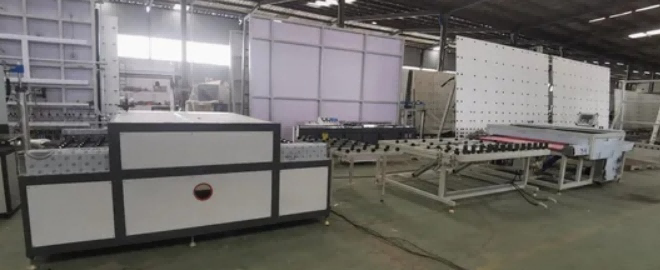

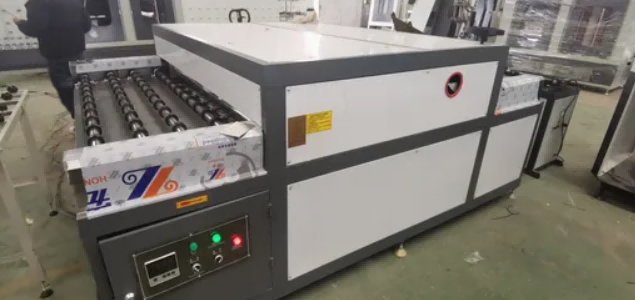

The 1600mm Insulating Glass Hot Press Machine is a core unit in insulated glass production lines, designed to bond glass panes with spacers into high-strength, airtight double glazing units (IGU). Equipped with PLC control, hydraulic pressing system, and precise digital temperature control, it ensures uniform pressure distribution and stable heating for superior bonding quality. With a maximum processing width of 1600mm,
The 1600mm Insulating Glass Hot Press Machine is a high-performance solution engineered for the production of insulated glass units (IGU), double glazing, and architectural curtain wall glass. Featuring a hydraulic pressing system, PLC-based automation, and precise digital temperature control, it ensures uniform pressure distribution and stable heating for superior bonding strength and airtight performance. Designed for durability, energy efficiency, and low maintenance, this machine is an essential unit in modern insulated glass production lines.
1600mm Max. Processing Width – Ideal for standard and large-format insulated glass
✅ Hydraulic Pressing System – Delivers strong, consistent pressure across the entire glass surface
✅ PLC + Touch Screen Control – Accurate, repeatable, and user-friendly operation
✅ Precise Temperature Control – Digital heating system ensures stable and uniform heat distribution
✅ Heavy-Duty Steel Frame – Rigid structure minimizes vibration and ensures long-term stability
✅ Energy-Efficient Design – Optimized heating zones reduce power consumption
✅ Customizable Configuration – Voltage, pressing time, and heating zones available upon request
✅ Easy Maintenance – Modular design simplifies servicing and reduces downtime
Technical Parameters
| Item | Specification |
| Input Voltage | 380V/50Hz (Customizable as required) |
| Input Power | 16.37Kw |
| Working Speed | 0~4.0m/min (Stepless adjustable) |
| Max. Glass Size | 1600*2000mm |
| Min. Glass Size | 350*350mm |
| Max. Insulating Glass Thickness | ≤50mm |
| Max. Insulating Glass Width | ≤1600mm |
| Overall Dimension | 2650*2000*1100mm |
Glass Loading – The glass and spacer assembly is manually or automatically placed on the press table.
Positioning & Alignment – The machine aligns the glass panels for precise bonding.
Heating Stage – The heating plates raise the temperature to activate the sealant.
Pressing Stage – Hydraulic cylinders apply uniform pressure across the entire glass surface.
Cooling & Unloading – The bonded IGU is stabilized and removed for next processing steps.
（Applications）
Curtain wall insulated glass units
Window and door double glazing
Architectural energy-saving glass
Commercial façade glass systems
Residential high-performance windows
Why Choose This Machine
Consistent Production Quality – Uniform pressure and temperature ensure reliable IGU performance.
High Output Efficiency – Fast heating and pressing cycles increase daily production capacity.
Built for Long-Term Use – Heavy-duty construction reduces wear and extends service life.
Lower Operating Costs – Energy-saving design and easy maintenance minimize running expenses.
Global Customer Support – Installation guidance, operator training, and after-sales service available.
FAQ
Q1: Is this machine suitable for double glazing production?
A: Yes. It is specifically designed for insulated glass units (IGU) and double glazing systems.
Q2: Can the machine handle large glass sizes?
A: Yes. The maximum processing width is 1600mm, suitable for both standard and oversized glass panels.
Q3: Is customization available?
A: Yes. We support custom voltage, heating zones, pressing time, and machine color.
Q4: Do you provide installation and training?
A: Yes. We offer remote guidance, operation manuals, and on-site support when required.
