High-Precision 3+2 Axis CNC End Miller for Special-Shaped Aluminum Mullions
3+2 Axis CNC Multi-Angle End Milling Machine for Special-Shaped Aluminum Mullions
Engineered for high-precision machining of complex aluminum mullions and curtain wall profiles, this 3+2 axis CNC end miller delivers multi-angle cutting in a single setup. It features a tilting spindle (0°–90°), servo-driven positioning, and automatic tool setting to process special-shaped, stepped, and angled profiles with ±0.1mm accuracy. Designed for window, door, and façade manufacturers, it reduces labor, minimizes setup changes, and ensures seamless mullion-to-frame assembly.
This 3+2 axis CNC end milling machine is designed for high-precision end-face machining of special-shaped aluminum mullions, system window mullions, reinforced transoms, and curtain wall profiles. The spindle can tilt / rotate for multi-angle milling, allowing flat milling, stepping, notching, chamfering and end cutting in one clamping. It is an ideal solution for system window, door and façade manufacturers that need tight splice tolerances and fast profile changeover.
A 4kW high-torque spindle running at 2800 rpm accepts diamond cutters from φ250 to φ300 mm. The cast iron frame and linear guide system maintain repeatability within ±0.02 mm during batch runs. The worktable accommodates four to six profiles per cycle, and the CNC controller stores over 100 preset programs, allowing fast switching between different special-shape profiles. Operation runs through a 10-inch user-friendly touchscreen with visual programming, keeping training requirements minimal. A fully enclosed safety guard, automatic lubrication system, and rubber-protected pneumatic clamps contribute to safe, low-maintenance daily operation.
CE and ISO certified. OEM and customized configurations are supported. The manufacturer supplies this machine on a factory-direct basis, with an emphasis on easy maintainability, and provides remote installation guidance at no additional cost.

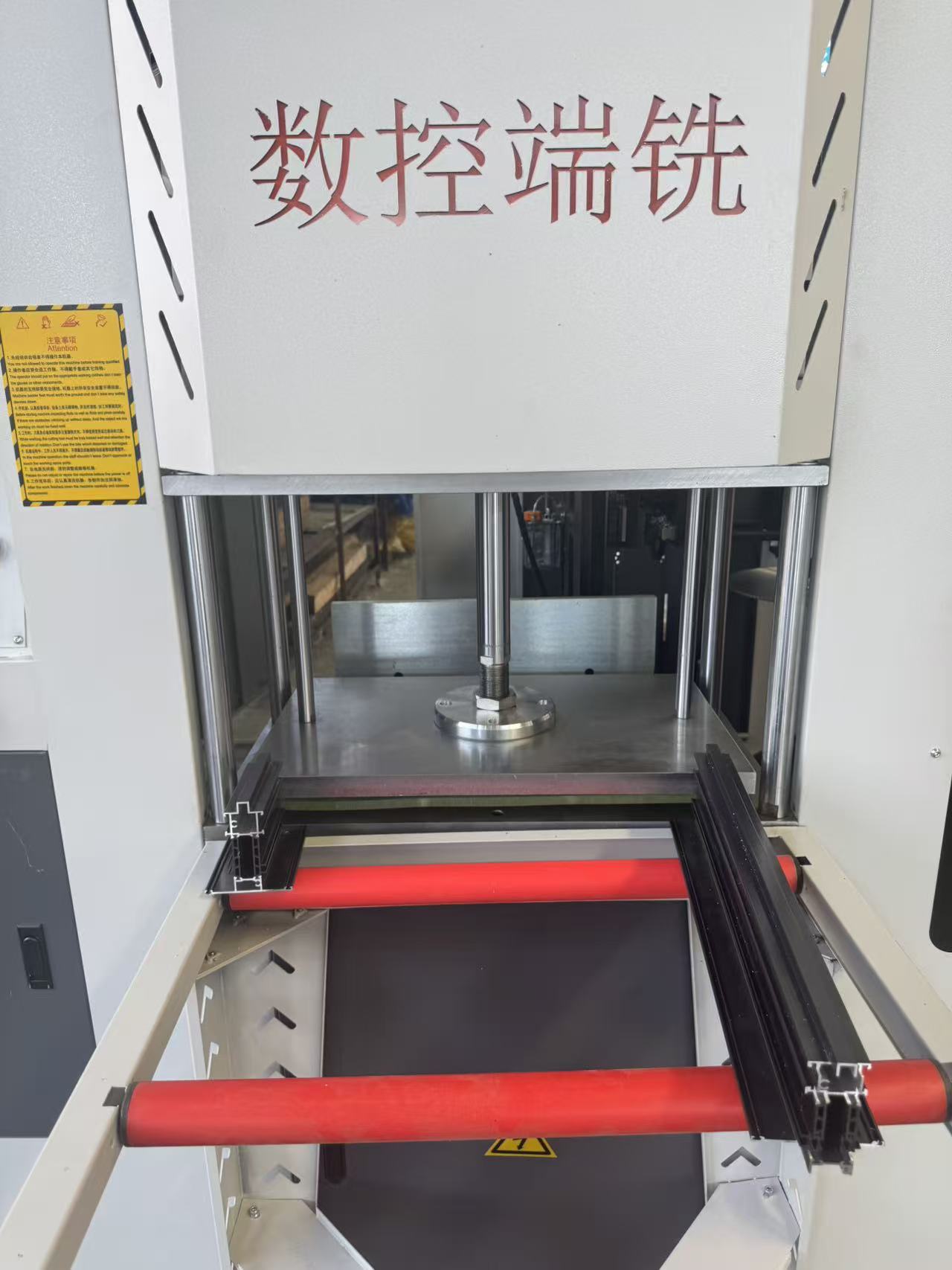

Multi-Angle 3+2 End Miller for Special Shape Aluminum Mullion
- • 3+2 Axis Multi-Angle CNC System 3 servo linear axes for precise positioning; 2 rotary axes enable ±45° spindle tilt + 0°/90° flip. Process angled ends, notches, tenons, and grooves in one pass---no manual re-clamping.
- • Special Shape Aluminum Optimized Designed for irregular, curved, and multi-angle mullions (thermal break, system windows, curtain walls). Eliminates need for custom cutting tools; reduces setup time by 60%.
- • High-Precision & Heavy-Duty Build 4kW high-torque spindle (2800 rpm) with diamond cutters; cast iron frame + linear guides ensure ±0.02mm accuracy even in batch production.
- • Batch Processing & Efficiency Wide worktable holds 4--6 profiles per cycle; full servo control + preset program storage (100+) enables fast changeover between different special shapes.
- • User-Friendly Operation 10-inch touchscreen CNC (Delta/ESTUN); English/Chinese interface; simple G-code or visual programming---minimal training needed.
- • Safe & Low-Maintenance Fully enclosed safety guard; automatic lubrication; pneumatic clamps with rubber protection prevent profile deformation.
Applications
-
Aluminum window & door mullions
Thermal-break system profiles
Curtain wall mullions / transoms
Reinforced center stiles
Flush frame-sash mullions
Arched / angled / special-section aluminum extrusions
Light industrial aluminum profiles
Technical Specifications
- Power Supply: 380V/50Hz/3Ph (customizable)
- Total Power: 5.5kW (4kW spindle + servo drives)
- Spindle Speed: 2800 rpm
- Milling Cutter Diameter: φ250--φ300mm (diamond)
- Working Air Pressure: 0.5--0.8MPa
- Max Milling Depth: 100mm (0°), 70mm (45°)
- Max Profile Size: W≤150mm × H≤200mm
- Machine Dimension: 2100×1100×1600mm
- Weight: ≈650kg
- Certification: CE/ISO
- Manufacture and sale
Why Choose This 3+2 Multi-Angle End Miller?
- Versatility Beyond 3+1 Machines: Handles special angles & complex shapes others can't.
- Factory Direct from China: Competitive price, 2-year warranty, fast delivery.
- Full Technical Support: Online training, video guides, spare parts supply.
Multi-Angle 3+2 End Miller -- The Ultimate Solution for Special Shape Aluminum Mullion Processing.
Advantages for Buyers
✅ Seamless mullion-to-frame splicing
✅ Less manual adjustment, less scrap
✅ Faster changeover for custom projects
✅ Stable quality for system windows & curtain walls
✅ Lower labor cost in profile-end machining
✅ Suitable for small batch + custom + mass production
Hot Tags: 3+2 axis end milling machine
aluminum mullion end miller
CNC end milling machine for aluminum
special shape aluminum mullion machine Manufacturer, Supplier, Factory
