Double Mitre Saw for Window Frame Production
45&90 Degree Double Mitre Saw for Window Frame Production is a heavy duty, high precision double head cutting machine designed for aluminum, PVC, UPVC and thermal break profiles in window, door and curtain wall manufacturing. It delivers accurate, repeatable 45° and 90° cuts with burr free edges, supporting both single head independent and double head synchronous operation for maximum productivity.Lebulang brand is making high quality machine .

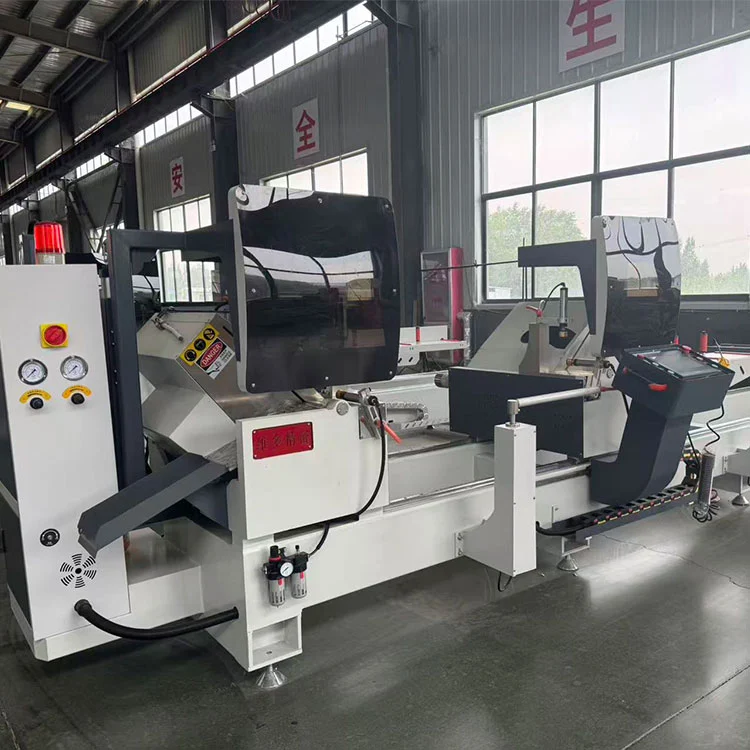

This Double Mitre Saw for Window Frame Production, built at Lebulang Machine’s China factory where aluminum and PVC processing equipment has been manufactured for close to three decades, cuts profiles at 45° and 90° for window, door, and curtain wall fabrication. It processes aluminum, PVC, UPVC, thermal break, and copper extrusions. Two cutting heads — T1 fixed and T2 motorized — sit on a shared precision guide rail and can operate simultaneously, with the right head moved by a servo drive for length positioning.
An integrated cast workbench and direct-connected spindle motors form the core structure. Each saw head is powered by a 3 kW motor spinning a ø500 mm carbide-tipped blade at 3000 rpm. Pneumatic clamps secure the workpiece, and an air-hydraulic damping cylinder controls the feed. The welded steel frame and cast iron base work together with HIWIN linear rails and Schneider electric components to keep repeated fixed-length accuracy within ±0.1 mm and cutting surface roughness at Ra 12.5 µm. Maximum cutting length is 5000 mm, with a short-cutting function that reaches down to 200 mm. At 45° the section capacity is 150 × 170 mm; at 90° it handles 150 × 345 mm, including square tubes up to 150 × 200 mm.
A fully enclosed safety guard, emergency stop, and overload protection are standard. A dedicated chip extraction and vacuum system captures around 70% of debris, and a patented rotary lifting support bracket prevents profile sag at mid-span. Data can be imported via LAN, USB, Bluetooth, or manual input, and the control system interfaces with common optimization software. A label printer and an error prevention function — which blocks cutting when a profile falls outside tolerance — are also built in. The machine runs on a 380V three-phase supply and requires 0.6–0.8 MPa air pressure.
CE certification applies, and custom OEM configurations are accepted. Lebulang Machine supplies the saw on a factory-direct basis with a design that aims for easy daily maintenance. Remote installation guidance is provided at no extra cost.
45&90 Degree Double Mitre Saw for Aluminum & PVC Window features:
- a. cutting industrial aluminum profiles, PVC profiles, aluminum doors and Windows, curtain wall materials.
- b. Operation without skilled workers, solve the factory recruitment difficulties
- c. label printing function,
- d. error prevention function: profile error beyond the range of no cutting.
- e. High-precision, integrated casting workbench, integrated spindle directly connected motor,
- f. air-liquid damping cylinder, T1, T2 heads are located on the integrated guide rail.
- g. Supports multiple data import modes: Internet, LAN, U disk, Bluetooth, manual input, etc.
- h. Can realize the market common optimization software data docking.
- i. Environmental protection function, unique chip removal, vacuuming design, vacuuming rate of 70%, clean site, reduce cleaning frequency, improve work efficiency.
- j. It is equipped with patented rotary lifting bracket to avoid cutting error caused by middle droop, and equipped with movable profile bracket.
- k. The latest arc cutting technology, sawing section is safer, faster and more reliable.
45&90 Degree Double Mitre Saw for Aluminum & PVC Window
✅ Dual‑Angle Precision Cutting
- • Auto adjustable angles: 45° / 90° (intermediate angles optional)
- • ±0.1mm positioning accuracy; clean, tight mitre joints for frames
✅ Multi‑Material Compatibility
- • Cuts aluminum, PVC, UPVC, thermal break, copper profiles
- • Optimized for window, door, curtain wall & architectural extrusions
✅ Double‑Head High Efficiency
- • Two synchronized heads; simultaneous cutting at both ends
- • Right head servo‑driven for fast, accurate length adjustment
- • 2--3× faster than single‑head saws; ideal for mass production
✅ CNC/Digital Control Options
- • Digital display: quick length readout, simple operation
- • CNC upgrade: 10″ touchscreen, program storage, USB import/export
✅ Heavy‑Duty & Stable Build
- • Robust welded steel frame + cast iron base; minimal vibration
- • Premium components: HIWIN linear rails, Schneider electrics, carbide‑tipped blades
✅ Safe & User‑Friendly
- • Fully enclosed safety hoods, emergency stop, overload protection
- • Automatic blade retraction; pneumatic clamping for secure profile holding
✅ CE Certified & Reliable
- • EU safety standards compliant; 24/7 continuous operation
- • 12--24 month warranty; long‑term spare parts supply
Technical Specification
| Power supply | 380v 50hz |
| Saw head motor | 2× 3KW/3000r/min |
| Working pressure | 0.6~ 0.8MPa |
| Air consumption | 60L/min |
| Cutting length | Max5000mm min 280mm(Short cutting function is the shortest 200mm) |
| Cutting width | Max 150mm |
| Max. Cutting slope | 45°150×170mm 90°150×345mm |
| Max. square tube cutting | 150×200mm |
| Cutting angle | 45 degree 90 degree |
| Feeding speed | continuously viable 0-4m/min |
| Saw blade specification | ø500 × ø30 × 4.4× Z120 |
| dimension | 6550× 1300× 1800 mm |
| weight | 2000kgs |
| Accuracy of repeated fixed length | ≤ 0.1mm |
| Allowance of section cutting angle | ± 3' |
| Flatness of cutting profile | ≤ 0.02m |
| Roughness of cutting profile | Ra12.5μm |
Key Components
- Saw Blades: Imported carbide‑tipped blades for smooth, burr‑free cuts
- Pneumatic Clamps: Horizontal/vertical clamps for firm profile holding
- Linear Rails: Taiwan HIWIN precision rails for smooth movement
- Control Panel: Intuitive digital display or 10″ CNC touchscreen
- Safety System: CE‑compliant guards, emergency stop, overload protection
After‑Sales Service
- Warranty: 1 years (free parts & technical support)
- Installation: Engineers available for overseas installation & training
- Spare Parts: Long‑term supply at factory cost
- Support: 24/7 online technical support (video call, remote diagnosis)
