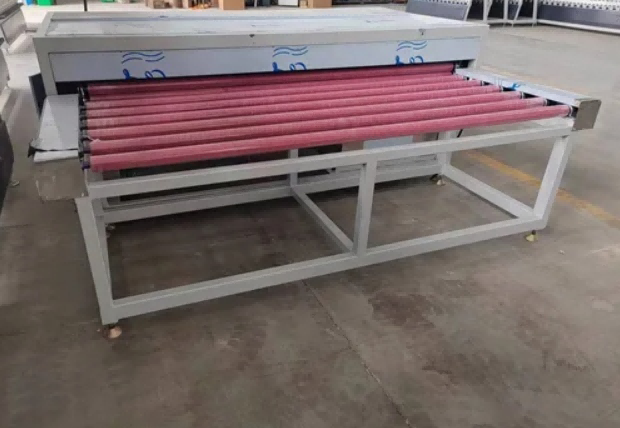

Heavy-Duty 1600 Insulating Glass Hot Press Machine

Key Features）

✅ 1600mm Processing Width – Suitable for standard and large-size insulated glass panels

✅ Hydraulic Pressing System – Delivers strong, uniform pressure for reliable bonding

✅ PLC Control System – Ensures accurate, repeatable production cycles

✅ Precise Temperature Control – Digital display with stable heating zones

✅ Heavy-Duty Frame – Rigid steel structure for long-term industrial use

✅ User-Friendly Operation – Simple interface, low training cost

✅ Energy Efficient – Optimized heating system reduces power consumption

✅ Customizable Options – Voltage, pressing time, and heating zones available



Technical Parameters



Glass Loading – The glass and spacer assembly is manually or automatically placed on the press table.

Positioning & Alignment – The machine aligns the glass panels for precise bonding.

Heating Stage – The heating plates raise the temperature to activate the sealant.

Pressing Stage – Hydraulic cylinders apply uniform pressure across the entire glass surface.

Cooling & Unloading – The bonded IGU is stabilized and removed for next processing steps.

（Applications）

Curtain wall insulated glass

Window and door double glazing units

Architectural energy-saving glass

Commercial façade glass

Residential insulated windows

FAQ

Q1: What is the maximum glass size for this machine?

A: The maximum processing width is 1600mm, with customizable length options.

Q2: Is the machine suitable for double glazing production?

A: Yes, it is specifically designed for insulated glass units (IGU) and double glazing.

Q3: Can the voltage be customized?

A: Yes, we support different voltage and frequency requirements based on your local standard.

Q4: What after-sales service do you provide?

A: We offer installation support, operation training, spare parts supply, and remote technical assistance.
