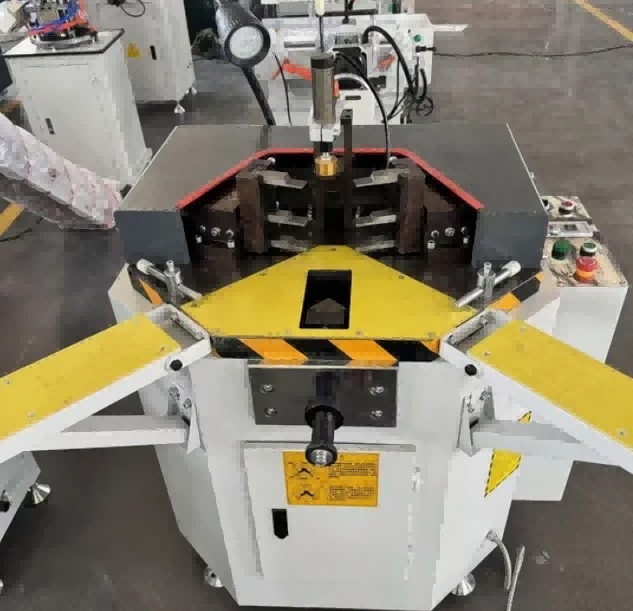

Heavy-Duty 140mm Aluminum Profile Corner Crimping Machine

• Adjustable combining parameters: Combining pressure, tool stroke, and working position can be set to match the profile cross-section. This allows the 140mm Aluminum Profile Corner Combining Machine to work with various aluminum and thermal break profiles within the 140 mm width range without extensive changeover.
• Welded steel frame: The main structure is fabricated from thickened steel plate and welded into a single unit. This construction resists the vibration and reaction forces generated during the combining cycle, so the machine maintains alignment during extended runs and 24-hour operation.

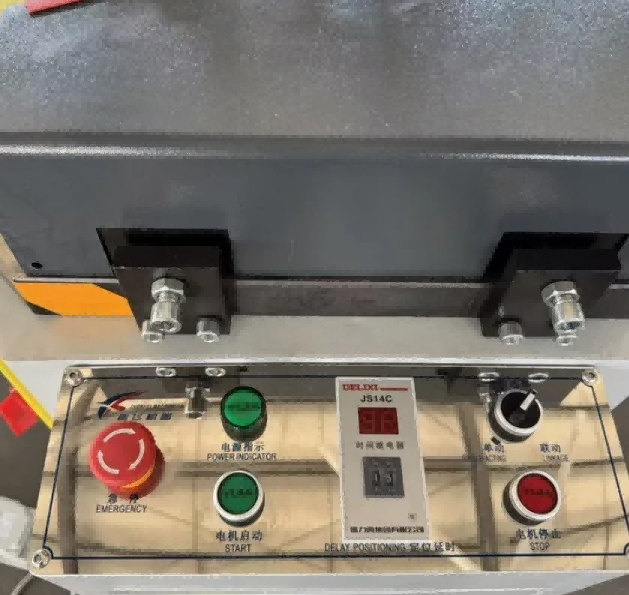

• Operator safety and controls: A guarding system with an anti-misoperation interlock prevents the combining cycle from starting while the operator's hands are in the work zone. The pneumatic clamping and combining sequence is controlled by push buttons, with no programming required. Most new operators can learn the loading and cycle-start routine after a short demonstration.



Key Features

140mm Profile Capacity – Handles large and thick-walled aluminum profiles with ease.

High-Power Hydraulic System – Delivers strong, consistent crimping force for gap-free joints.

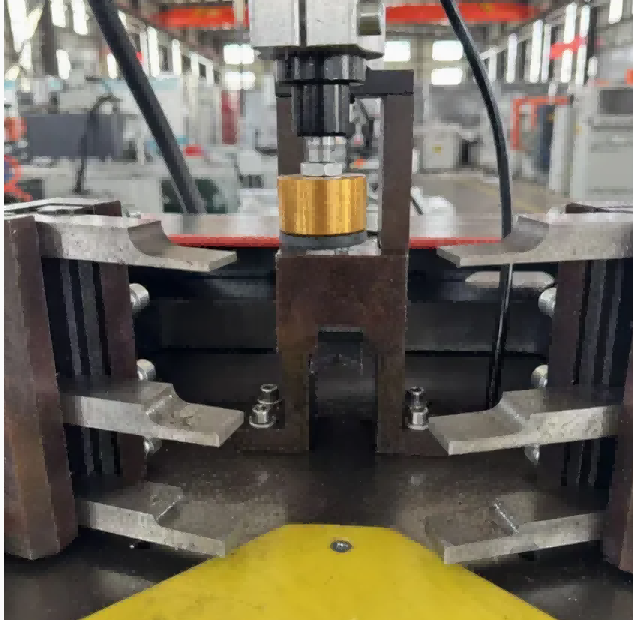

Precision Positioning Blocks – Ensure accurate 90° corners and repeatable results.

Heavy-Duty Frame – Reinforced steel structure minimizes vibration and extends service life.

Pneumatic Clamping – Securely holds profiles in place during crimping.

Adjustable Crimping Depth – Adapts to different profile sizes and corner key types.

User-Friendly Operation – Simple controls and quick setup reduce training time.

Safety Protection – Equipped with safety guards and dual-hand operation for operator safety.

How It Works

Profile Loading – Place the aluminum profile and corner key into the positioning block.

Pneumatic Clamping – Profile is securely clamped to prevent movement.

Hydraulic Crimping – High-pressure crimping head locks the corner joint.

Precision Forming – Profile corners are formed to a perfect 90° angle.

Automatic Release – Clamps release, and the finished profile is removed.

.

Applications

Widely used in aluminum fabrication industries:

Aluminum window & door profiles

Curtain wall and facade systems

Sunroom and conservatory profiles

Industrial aluminum frames

Furniture aluminum profiles

Display and showcase frames

FAQ

What profiles can this machine crimp?

A: It is designed for aluminum window, door, and curtain wall profiles up to 140 × 140 mm. Custom models are available for larger profiles.

Q2: Is the crimping force adjustable?

A: Yes. The hydraulic system allows for crimping force adjustment to match different profile thicknesses and corner key types.

Q3: Does it support angles other than 90°?

A: Standard models are fixed at 90°. Custom models with adjustable angles (e.g., 45°) are available upon request.

Q4: What is the typical crimping accuracy?

A: Positioning accuracy is ±0.1 mm, ensuring consistent, high-quality corner joints.
