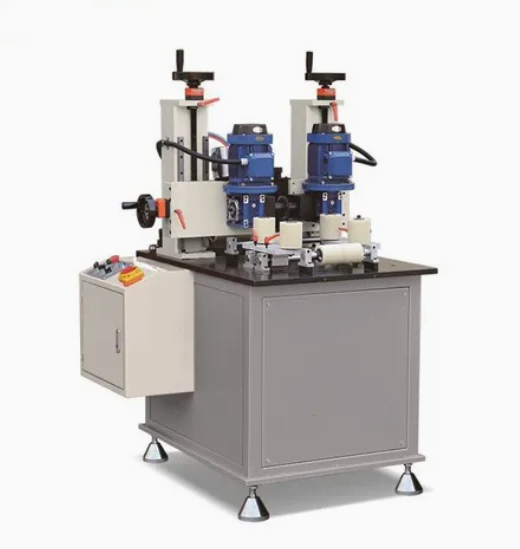

Dual-Motor Aluminum Profile Thermal Break Inserting Machine

Features & Advantages

Product Summary

The Dual-Motor Thermal Break Knurling & Strip Inserting Machine integrates precision knurling and PA66 strip insertion into a single, high-efficiency process. Independent drive heads ensure synchronized operation and accurate profile positioning, while variable frequency control delivers consistent feed rates up to 70m/min. Engineered for aluminum window, door, and curtain wall manufacturers who demand high-shear strength thermal break profiles and reliable production output.

High-Precision Knurling Technology: Imported high-hardness knurling rollers ensure uniform and clear profile tooth patterns. The tight combination of thermal break strip and aluminum profile improves overall structural tightness and thermal insulation performance of finished products.

Automatic Integrated Operation: Realizes automatic feeding, knurling, positioning and strip inserting. Greatly reduces manual intervention, improves production efficiency and lowers labor operation errors.

Wide Compatibility: Supports processing of various specifications of aluminum thermal break profiles and PA66 thermal insulation strips. Adjustable processing parameters to meet customized production demands of different profile sizes.

Stable & Durable Structure: Thickened industrial machine body and anti-vibration structure design reduce operation vibration. Core components adopt wear-resistant materials, extending service life and reducing later maintenance costs.

Safe & Energy-Saving: Equipped with emergency stop protection, overload protection and anti-pinch safety devices. Optimized motor operation program reduces idle power consumption, achieving energy-saving and efficient production.

Technical Parameters

Working Principle

The machine adopts dual-motor synchronous linkage working mode. One motor controls the precision knurling roller to perform uniform tooth rolling on the aluminum profile groove, forming standard anti-slip tooth grooves. The other motor drives the automatic feeding and positioning mechanism to accurately deliver the PA66 thermal break strip into the profile groove. Through mechanical pressing and fitting, the thermal strip and aluminum profile are tightly combined as a whole. The whole process realizes one-time forming of knurling and strip inserting, ensuring stable product quality and high processing consistency.we are one manufacturer for OEM and ODM

Why dual-motor instead of single-motor?

Single-motor machines drive both knurling and insertion from one source, forcing compromises in speed and pressure. Dual-motor gives you independent control over each process, so you can optimize both for every profile type.

What strip sizes and types does it handle?

Standard machines handle PA66 GF25 strips (the industry norm). PA6, fiberglass-reinforced, and custom-width strips are also supported. Send us your strip specs—we'll confirm compatibility.

How precise is the knurling?

Knurling depth and spacing are controlled by CNC-adjusted head positions. The result is consistent micro-tooth patterns that maximize mechanical bite with the insulation strip—critical for long-term thermal performance.

How long does a profile change take?

With stored CNC parameters, most changeovers take 10–15 minutes. The machine "remembers" your common profiles, so you spend less time setting up and more time producing.

What support do you provide after purchase?

We supply installation documentation, remote video guidance, operator training, and spare parts. On-site service is available where feasible. We don't disappear once the machine ships.

Key Features

Dual-Motor Independent Drive — Separate motors control knurling and strip insertion heads, allowing independent adjustment of speed, pressure, and position for optimal process synchronization.

Integrated Knurling & Insertion — One machine performs both critical steps: precision tooth-rolling on the profile groove and accurate PA66 strip feeding, eliminating the need for two separate machines.

Variable Frequency Feed Control — Stepless speed adjustment from 0–70m/min ensures consistent feed rates across different profile sizes and thermal break strip specifications.

CNC-Adjustable Head Positioning — Electric adjustment of head height and horizontal position simplifies profile changeovers and reduces setup time between production runs.

Pneumatic Profile Clamping — Fast-acting pneumatic clamps secure the aluminum profile during processing, preventing slippage and ensuring repeatable accuracy.

High-Shear Strength Knurling — Precision knurling wheels create consistent micro-tooth patterns in the profile groove, maximizing mechanical bite and shear strength of the thermal break assembly.

User-Friendly Control Interface — Intuitive digital control panel with preset programs for common profile types. Operators can store and recall parameters for fast changeovers.

Heavy-Duty Frame Construction — Rigid welded steel frame and industrial-grade components ensure long-term stability and reliable performance in multi-shift production environments.

Why Manufacturers Choose This Machine

Better Bond, Less Risk — Precision knurling means higher shear strength and fewer field failures. Your thermal break profiles stay reliable for years.

One Machine, Not Two — Knurling + inserting in a single pass. Less floor space, fewer operators, simpler workflow.

Faster Changeovers — CNC head positioning and stored parameters cut changeover time to 10–15 minutes. More time cutting, less time adjusting.

Consistent Quality — Independent motors and variable frequency feed keep knurling depth and strip tension steady across every profile.

Built for Production — Heavy-duty frame and industrial components are made for multi-shift operation, not just showroom demos.

Global Support — Installation guidance, spare parts, remote troubleshooting. We stay with you after the sale.
