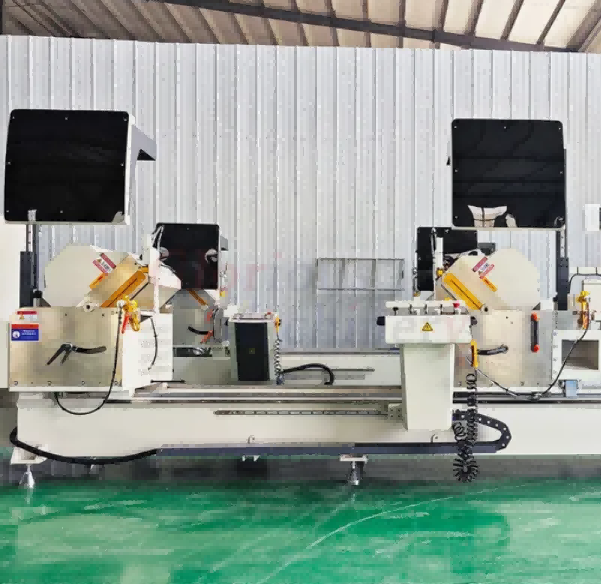

550 CNC Ultra-Precision Internal Pivot Saw (45°/90°)

The 550 CNC Internal Swivel Precision Saw is an automated machine designed specifically for high-end door and window manufacturing. It is primarily used for high-precision cutting of aluminum alloy profiles and can meet complex processing requirements.

Featuring an integrally cast internal swivel structure that never deforms, the machine supports both 90° straight cuts and 45° inward miter cuts with a maximum cutting length of up to 4200mm, easily handling extra-long or special-profile workpieces.

Key Features

Dual-Angle Precision Cutting — 45° and 90° auto-positioning with ±0.1mm accuracy for consistent, repeatable results

Internal Swivel (Inner Swing) Head Design — Inward-tilting cutting heads reduce material interference and enable shorter workpiece cutting

550mm High-Performance Blade System — Large-diameter blades handle thick and wide profiles with smooth, burr-free edges

CNC Control System — Digital interface for easy parameter setting, angle switching, and production data management

Heavy-Duty Construction — Rigid machine frame minimizes vibration and ensures long-term cutting stability

Dust Extraction Ready — Integrated dust collection ports keep the work area clean and improve operator safety

Pneumatic Clamping System — Secure, fast-acting clamps hold profiles firmly in place during cutting

Applications

Why Choose This Machine

Precision You Can Trust — CNC-controlled angle positioning eliminates manual error and ensures every cut meets tolerance

Versatile Material Handling — One machine handles aluminum, UPVC, and thermal break profiles across multiple industries

Operator-Friendly — Intuitive CNC interface reduces training time and minimizes operator fatigue

Built to Last — Industrial-grade components and rigid frame construction deliver years of reliable service

Efficient Production — Fast angle switching and pneumatic clamping maximize throughput

FAQ

Q: What is the difference between internal swivel and standard miter saws?

A: The internal swivel (inner swing) design tilts the cutting heads inward, allowing shorter material lengths to be cut without interference. This is especially useful for small-frame window and door components.

Q: Can the cutting angle be adjusted beyond 45° and 90°?

A: Standard configuration supports 45° and 90°. Custom angle options may be available upon request—please contact us for details.

Q: What materials can this machine cut?

A: It is designed for aluminum profiles, UPVC/PVC, and thermal break aluminum. For other materials, consult our technical team.

Q: Is the CNC system user-friendly for operators with limited experience?

A: Yes. The CNC interface features a straightforward menu system with preset cutting programs. Most operators can be trained within a day.

Q: What after-sales support do you provide?

A: We offer installation guidance, operation training, spare parts supply, and remote technical support. On-site service is available depending on location.
