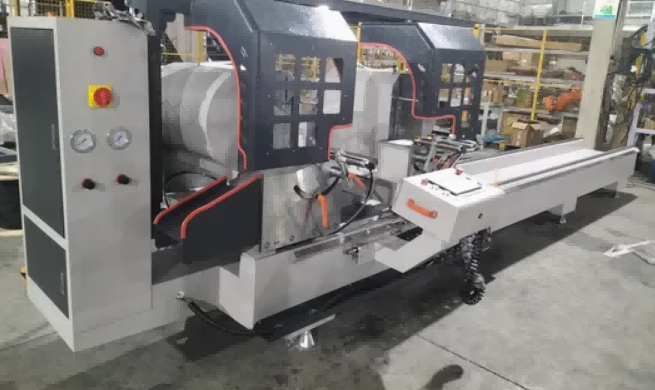

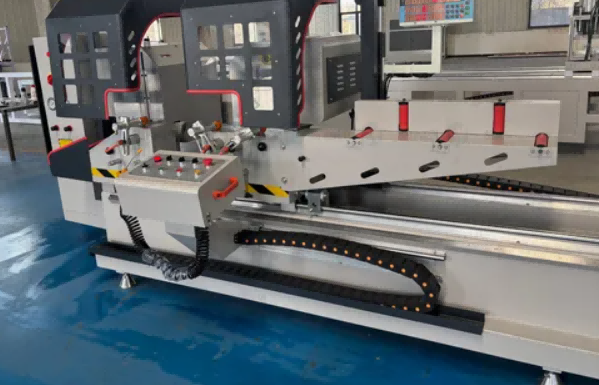

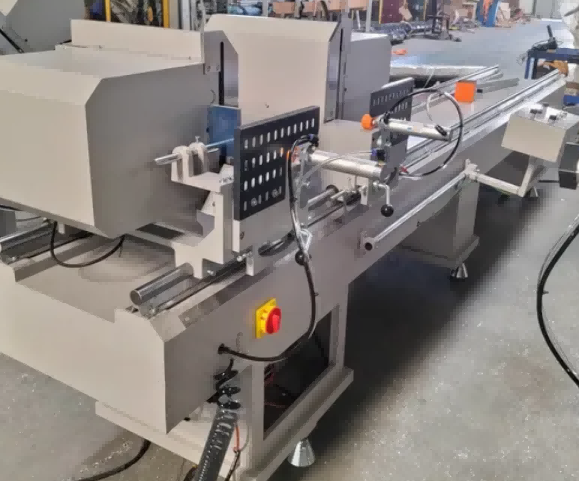

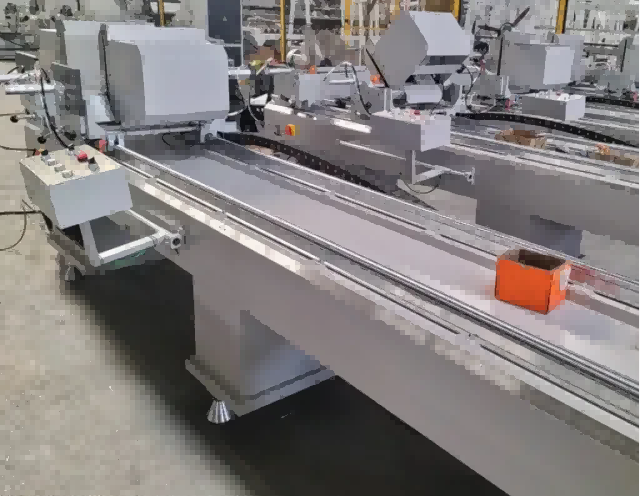

550 CNC Precision Cutting Saw, Fixed-Length, 45°/90°

The 550 CNC Internal Swivel Precision Saw is an automated machine designed specifically for high-end door and window manufacturing. It is primarily used for high-precision cutting of aluminum alloy profiles and can meet complex processing requirements.

Featuring an integrally cast internal swivel structure that never deforms, the machine supports both 90° straight cuts and 45° inward miter cuts with a maximum cutting length of up to 4200mm, easily handling extra-long or special-profile workpieces.

ntegral Casting StructureOne-piece cast-iron swivel body offers superior rigidity and permanent resistance to deformation, ensuring long-term precision.📐45° / 90° Dual CuttingSeamlessly switch between 90° right-angle and 45° internal miter cuts to satisfy complex machining demands.CNC Servo ControlImported linear guides paired with absolute servo motors deliver smooth, stable, and highly repeatable positioning.Touchscreen InterfaceUser-friendly CNC touchscreen with memory positioning for fast, error-free operation and quick job recall.Auto Data PrintingBuilt-in barcode/label printing for cut pieces streamlines production tracking and workshop management.♻️Tail-Material AvoidanceIntelligent remnant avoidance maximizes material utilization and significantly reduces waste.

Applications

High-end aluminum window & door profile cuttingCurtain wall & facade aluminum profilesThermal-break (broken-bridge) aluminum processingSolar frame & photovoltaic aluminum extrusionsUPVC and composite profile cuttingIndustrial aluminum extrusion fabrication

Key Features

CNC Servo Length Control – Automatic positioning of the length stop via servo motor, ensuring repeat accuracy of ±0.02 mm for fixed-length cutting.

Dual-Angle Cutting – Quick-switch cutting head supports 45° mitre and 90° square cuts, ideal for corner joints in window, door, and curtain wall profiles.

550 mm High-Performance Blade – Fitted with a premium carbide-tipped circular saw blade (Ø550 × 30 mm bore), delivering clean, burr-free cuts on aluminum, UPVC, and thin-wall steel.

Rigid Machine Body – Heavy-duty welded steel frame with vibration-damping design ensures long-term cutting stability and blade life.

Pneumatic Clamping System – Dual vertical and horizontal pneumatic clamps secure the profile firmly during the cutting cycle, preventing shifting and ensuring cut squareness.

User-Friendly CNC Interface – 7" color touchscreen with intuitive menu; operators can store up to 50 cutting programs with multi-length settings.

Safety & Efficiency – Full-enclosure safety guard with transparent viewing window, automatic blade lubrication mist system, and chip collection drawer.
