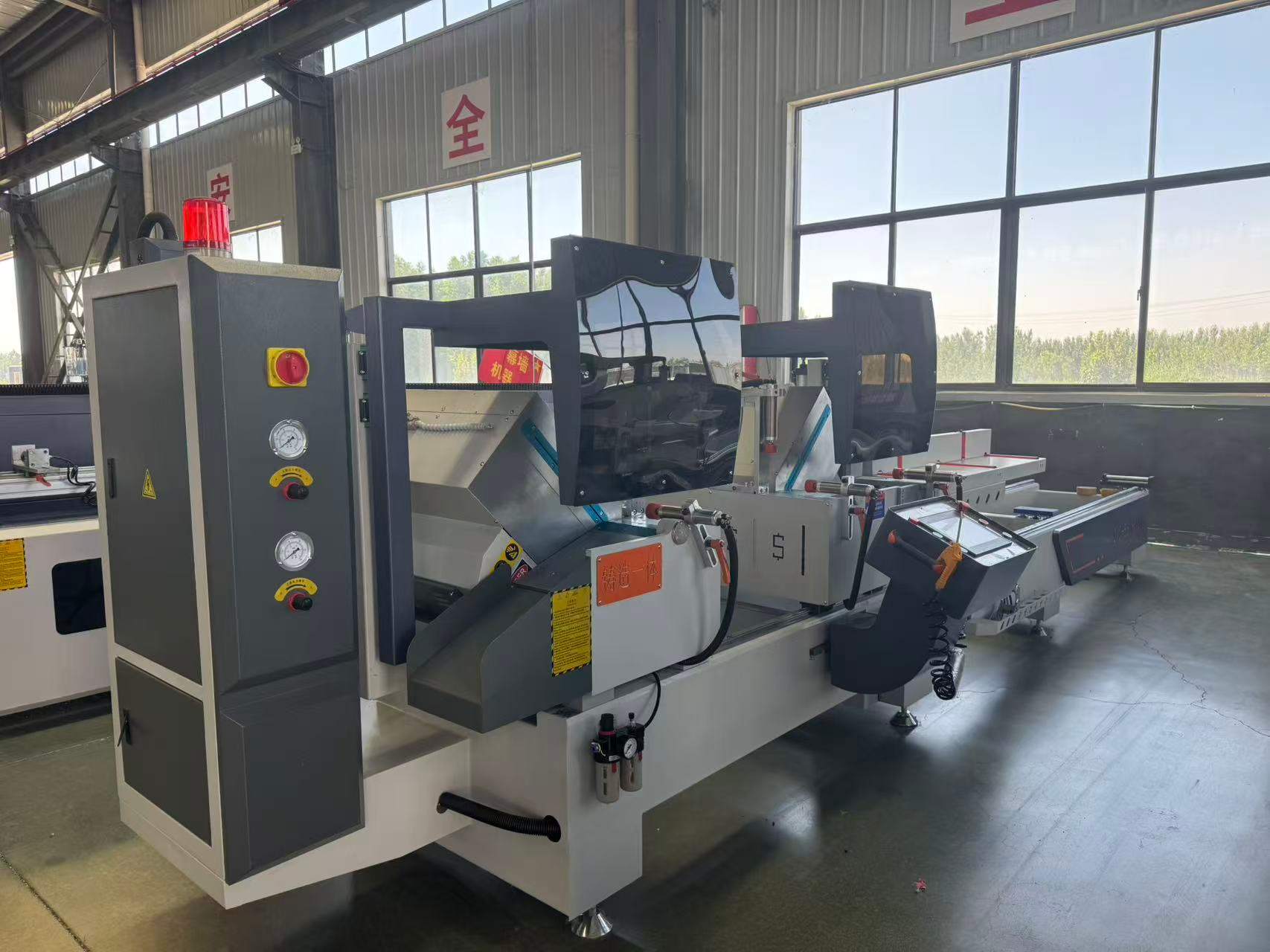

550 CNC Outward Swing Precision Cutting Saw, 45°/90°

Product Overview

This 550 CNC outward swing precision cutting saw is engineered for high-accuracy 45° mitre and 90° square cutting of aluminum profiles, thermal break aluminum windows, and UPVC/PVC profiles. The saw head swings outward from the machine body, providing operators with a clear line of sight, safer blade access, and effortless material loading — especially for long or bulky profiles.

Equipped with a high-performance Ø550 mm carbide circular saw blade, CNC servo control, and a robust pneumatic clamping system, this machine delivers clean, burr-free cuts with exceptional repeatability. Whether you're fabricating window frames, door profiles, or industrial aluminum extrusions, the outward swing design minimizes operator fatigue while maximizing cutting precision.

Available in single-head and double-head configurations to match your production scale.

Key Features

1. High-Precision 45°/90° Cutting

Quick-switch saw head positioning for 45° mitre and 90° square cuts. Pneumatic angle lock ensures the head stays firmly in position during the cutting cycle. Cutting accuracy: ±0.05 mm.

2. Ø550 mm Carbide Blade

Fitted with a premium carbide-tipped circular saw blade (Ø550 × 30 mm bore), delivering clean, burr-free cuts on aluminum, UPVC, and thin-wall steel profiles. Blade guard with automatic closing for safety.

3. CNC Servo Control

7" color touchscreen interface with intuitive menu. Operators can store cutting programs, set cut quantities, and monitor production data in real time. G-code compatible.

4. Pneumatic Clamping System

Dual vertical and horizontal pneumatic clamps secure the profile firmly from all sides, preventing shifting and ensuring cut squareness. Clamping pressure is adjustable to suit delicate UPVC and thin aluminum sections.

5. Robust Machine Body

Heavy-duty welded steel frame with vibration-damping design. The rigid construction ensures long-term cutting stability and extends blade life even under continuous operation.

6. Clean & Safe

Full-enclosure safety guard with transparent viewing window. Automatic blade lubrication mist system reduces friction and heat. Chip collection drawer for easy maintenance.

7. Flexible Configuration

Single-Head — Compact, cost-effective, ideal for small–medium workshops.

Double-Head — Simultaneous cutting of both ends, doubling throughput for high-volume production.

Applications

High-end aluminum window & door profile cuttingCurtain wall & facade aluminum profilesThermal-break (broken-bridge) aluminum processingSolar frame & photovoltaic aluminum extrusionsUPVC and composite profile cuttingIndustrial aluminum extrusion fabrication

Packaging & Delivery

Packaging: Stretch film + plywood crate (ISPM 15 compliant, no fumigation required)

Delivery Time: 15–25 working days after deposit confirmation

Shipping Terms: FOB Qingdao / CIF / EXW available

Warranty: 12 months against manufacturing defects

After-Sales: English manual, operation video, remote technical support via video call
