Industrial-Grade 1800 Vertical Washing Drying Machine for Insulated and Tempered Glass
Designed for insulated and tempered glass processing, this 1800 vertical washing drying machine delivers reliable cleaning and drying performance. With a maximum working width of 1800mm, it handles standard architectural glass sizes with ease. Built from corrosion-resistant stainless steel, the machine includes adjustable brush rollers, multi-stage rinsing, and energy-efficient hot air drying. Low-E compatible option ensures coated glass is safely processed. Ideal for insulating glass units, tempered glass pretreatment, and laminated glass lines.
1800 Vertical Washing Drying Machine for Insulated and Tempered Glass
Product Overview

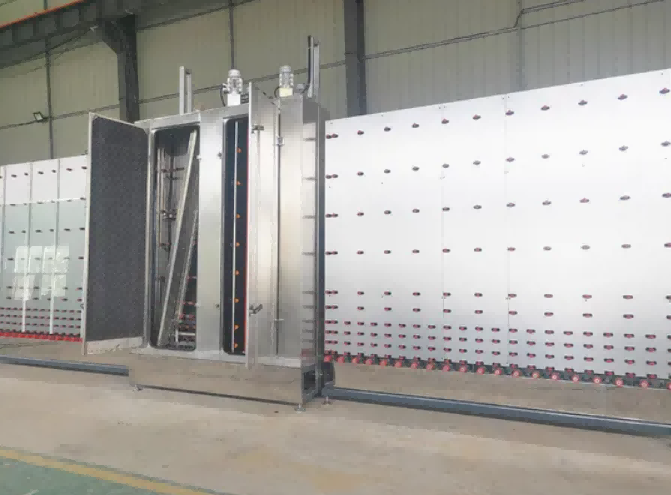

The 1800 Vertical Washing Drying Machine is a high-performance glass pretreatment solution designed specifically for insulated glass (IG) units and tempered glass processing. Featuring a vertical conveyor system, this machine efficiently cleans, rinses, and dries glass panels up to 1800mm in width, ensuring a spotless and moisture-free surface before lamination, sealing, or tempering.

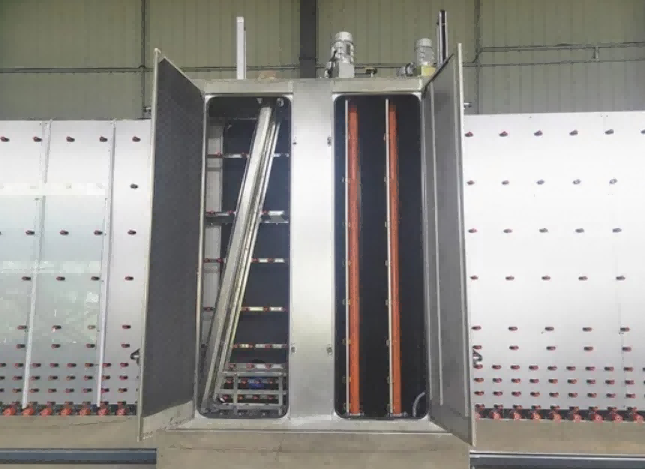

Built with a robust stainless steel frame and equipped with precision brush rollers, high-pressure spray nozzles, and a hot air circulation drying system, this machine delivers consistent results even under continuous heavy-duty operation. An optional Low-E coating compatible mode makes it suitable for processing coated glass without damaging the sensitive layer
Key Features
Maximum Working Width: 1800mm, accommodating standard architectural glass sizes
Vertical Conveyor Design: Space-saving and easy to integrate with existing production lines
Stainless Steel Construction: Corrosion-resistant body for long service life and easy maintenance
Multi-Stage Cleaning System: Brush scrubbing, high-pressure water rinsing, and demineralized water final rinse
Hot Air Circulation Drying: Efficient and uniform drying across the entire glass surface
Low-E Compatible Option: Gentle brush and water pressure settings protect low-emissivity coatings
Adjustable Speed Control: Variable conveyor speed to match different production requirements
Automatic Operation: PLC-controlled system for consistent, unattended performance
Energy Efficient: Optimized water and power consumption reduce operating costs
Control and Energy Use
- PLC with HMI: A touchscreen interface provides access to washing speed, brush pressure, water temperature, air knife heater settings, and alarm logs. Operators can save parameter sets for different glass types and recall them when changing production batches.
- Variable frequency drive: The main conveyor motor is inverter-driven, with speed adjustable from 0 to 8 m/min. This allows the operator to match the feed rate to the required cleaning intensity and the downstream process speed.
- Installed power: Total power consumption is 15 kW, distributed across brush motors, water pumps, heating elements, and the air knife blower. Energy use is reduced in standby mode when no glass is detected on the conveyor.
Low-E and Coated Glass Handling
- Adjustable brush pressure: The brush height and contact pressure can be reduced for sensitive Low-E or coated glass surfaces. Soft-bristle brush sets are available as an option. This allows the machine to clean coated glass without removing or degrading the functional layer, provided the correct parameters are set.
Technical Specifications
| Parameter | Specification |
| Model | 1800 Vertical Washing & Drying Machine |
| Input Voltage | 380V / 50HZ |
| Input Power | 15 KW |
| Max. Glass Size | 1800 x 2500 mm |
| Min. Glass Size | 280 x 450 mm |
| Pane Glass Thickness | 3 - 12 mm |
| Max. I.G. Unit Thickness | 12 - 40 mm |
| Glass Cleaning Speed | 0 - 8 m/min (Variable) |
| Overall Dimension | 8000 x 2100 x 3000 mm (L x W x H) |
Applications
Pretreatment for insulated glass (double glazing / triple glazing) production
Cleaning of tempered glass before lamination or coating
Preparation of glass panels for vacuum glazing
Surface cleaning for architectural and decorative glass
Suitable for float glass, Low-E glass, reflective glass, and patterned glass
Why Choose Us?
Shandong Lebulang Precision Machinery Co., Ltd., operating as Lebulang Machine, has manufactured glass and window processing equipment at its Jinan facility since 1996. The company handles R&D, machining, assembly, testing, and sales in-house, supplying equipment directly from the factory. The 1800 Vertical Washing Drying Machine for Insulated and Tempered Glass is built under this integrated structure, with CE and ISO 9001 certification. A one-year warranty applies to the machine structure, and remote technical support is provided for the lifetime of the equipment. Spare parts are stocked and can be dispatched with regular freight. Detailed operation manuals and video guidance are included with each delivery.
Why Choose This Machine?
Reliable Performance: Proven design used by glass processors worldwide
Easy Integration: Compact vertical layout fits seamlessly into new or existing production lines
Low Maintenance: All major components are easily accessible; spare parts readily available
Cost Effective: Reduced water and energy consumption lower daily operating expenses
Customizable Options: Available with various brush materials, heating methods, and control configurations
FAQ
Q: Can this machine handle Low-E coated glass?
A: Yes, with the optional Low-E compatible mode, the machine uses softer brushes and reduced water pressure to protect the coating.
Q: What is the minimum glass size it can process?
A: The minimum recommended glass size is 300 x 300 mm.
Q: Is installation support available?
A: Yes, we provide remote guidance and optional on-site installation assistance.
Q: What is the warranty period?
A: Standard warranty is 12 months from the date of shipment.
