800mm High-Rigidity Precision CNC Machining Center for Large-Section Industrial Aluminum Profiles

Product Summary

One clamping. Every hole, slot and end face. No re-fixturing tax.

Most profile shops lose more time moving a part between a drill press, a vise and a deburrer than they lose actually cutting metal. This 800mm center closes that loop. Load the extrusion once, lock it against a ground datum, and let the spindle handle drilling, milling, tapping, chamfering and end-face squaring in a single cycle — with the same program repeating part 1 and part 1,000 without drift.

It isn’t a steel VMC dressed up with aluminum tooling. The bed, spindle curve, feed logic and chip path were specified for 6061/6063 extrusions from the start: high rpm, low force, fast swarf evacuation, and clamps that hold thin walls without crushing them.

Technical Specifications



Key Features

Aluminum-first 3-axis design — optimized spindle speed, feed logic and chip evacuation for 6061 / 6063 extrusions

One-clamping multi-process — drill, mill, tap, countersink, chamfer and engrave without moving the profile

Tilting / rotatable worktable (-90° / 0° / +90°) — top and both side faces machined in a single setup

Servo-driven X/Y/Z — stable positioning, repeatable hole patterns, smooth contour milling

High-speed electric spindle — air-cooled or liquid-cooled options, tuned for aluminum chip load

Graphic CNC programming — select hole/slot type, enter dimensions, generate toolpath; CAD/G-code import on request

Pneumatic profile clamps — fast loading, secure holding, minimal deformation on thin-wall sections

Mist / spray cooling — keeps cutter cool, clears long aluminum swarf, protects anodized or powder-coated surfaces

Compact industrial build — fits window-door shops, facade workshops, automation-frame makers and OEM profile processors

Machining Capabilities

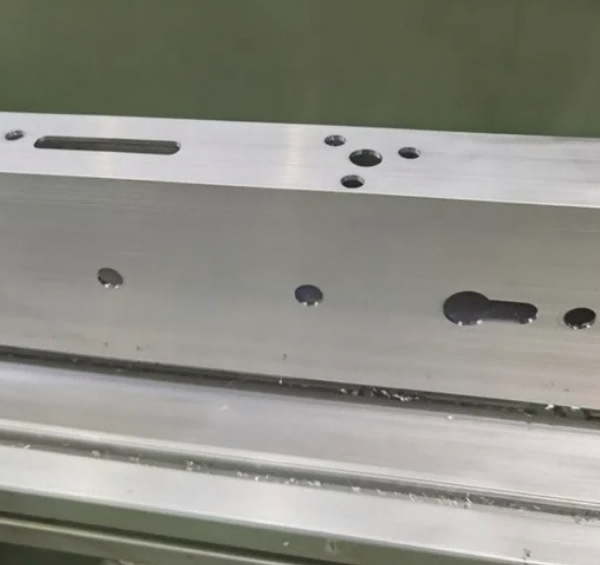

Round holes, oblong holes, keyholes, square holes, special-shape cutouts

End-face milling and squaring

Slot milling, hinge pockets, lock cases, hardware holes

Thread tapping (optional rigid tapping)

Chamfering, countersinking, light engraving

Deep through-holes via table tilt

Short industrial extrusions, bracket plates, T-slot rails, machine-frame nodes

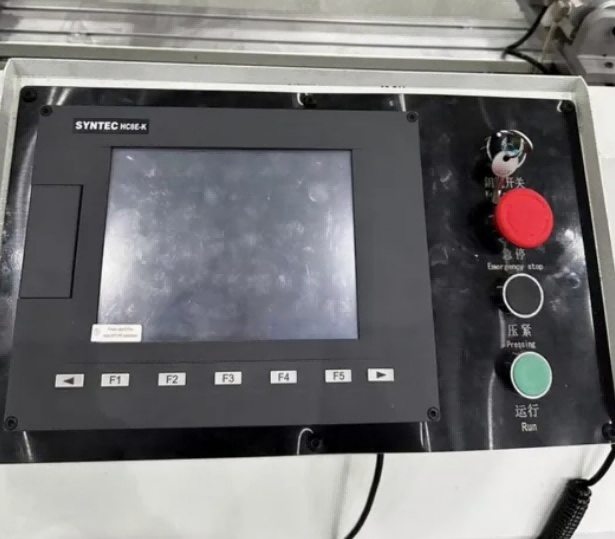

800mm CNC Machining Center for Industrial Aluminum Profiles Intelligent CNC Control System, Easy Operation For Non-Professional Workers

• 10-inch multi-language touch screen CNC controller (English, Spanish, Arabic, Russian optional)
• Built-in dedicated aluminum profile process library: pre-stored parameters for curtain wall connectors, window hinge holes, solar bracket mounting holes, one-click call
• Support DXF CAD drawing import via USB flash drive, system auto-generates NC machining program without complex manual programming
• Optional remote IoT module: online remote debugging, fault diagnosis and production data statistics 24/7

800mm CNC Machining Center for Industrial Aluminum Profiles

We are one leading enterprise located in Jinan, China, specializing in the design, manufacturing, and distribution of high-quality Aluminum window door machine, UPVC window door machine, Glass processing machine. Our company is committed to providing innovative and customized solutions to meet the diverse needs of our global clientele.

Products and Services: We offer a comprehensive range of machinery that caters to the manufacturing of aluminum and UPVC windows, as well as double glazing solutions. Our products are engineered for precision, efficiency, and durability, ensuring that our customers can produce high-quality windows that meet international standards.

Market Presence: Our advanced machinery has found extensive applications across North America, South America, Europe, the Middle East, and other regions. Our global presence is a testament to our commitment to quality and customer satisfaction.

Research and Development: we place a strong emphasis on research and development. Our dedicated R&D team works tirelessly to innovate and enhance our product offerings.

Customization Capabilities: Understanding that every customer has unique requirements, we offer tailored solutions to address specific production needs.

Why Choose This 800mm Profile CNC Center

Most shops do not need a 6-meter gantry machine to start aluminum profile machining. They need a machine that is accurate, easy to program, cheap to run, and does not turn a 300mm bracket into a 3-station job. This 800mm center removes the re-fixturing step, shortens operator training, and keeps hole patterns consistent across batches.

Compared with manual machining:

Fewer setups = fewer tolerance stacks

One program = repeatable parts

One clamping = square holes, aligned slots, clean end faces

One operator = drilling + milling + tapping in the same cycle

Control & Software

The CNC interface is built for profile work, not for machinists who already speak G-code. Operators pick the feature — hole, slot, pocket, thread, end-mill pass — enter the size and position, and the system handles the toolpath. For advanced users, CAD drawings and G-code import are supported, and the machine can be integrated with window-door / curtain-wall software or ERP data export on request.

Tooling & Cooling

Aluminum wants sharp tooling, correct rake angle and fast chip evacuation. The machine supports carbide end mills, drill/mill combos, tapping collets, engraving bits and saw-blade units. Mist cooling prevents swarf welding to the cutter; flood cooling is available for heavier sections.

Clamping & Workholding

Pneumatic clamps hold the profile against the reference datum without crushing thin walls. Fixture stations can be repositioned for different section heights and widths. Optional custom jaws are available for system profiles, thermal-break sections and non-standard extrusions.

Quality & Rigidity

Key structures are stress-relieved to reduce long-term distortion. Linear guides and ball screws are selected for repeat positioning, not just top speed. The result is stable accuracy across batch runs — not just a good first part.

Packaging & Delivery

Plywood case / stretch film + steel strapping for export

Operation manual and English training video included

Remote installation guidance and program training

OEM / ODM model name, color and label supported

MOQ: 1 set

Lead time: 10–30 working days depending on configuration

After-Sales Service

12–24 month warranty by configuration

Lifetime remote technical support

Spare parts and consumables supply

On-site service available for selected markets

English/Chinese/Spanish/Russian/Arabic support optional

FAQ

Can it cut steel or stainless?

It is optimized for aluminum and PVC/light alloys. Occasional mild-steel thin parts are possible with correct tooling and reduced feed, but it is not a steel machining center.

Is 800mm enough for long curtain-wall profiles?

For full-length 6m mullions, no — those need a long-stroke profile center. But for machined nodes, end details, brackets and short sections, 800mm is ideal.

Can it tap threads?

Yes. Rigid tapping is optional depending on control system and spindle.

How hard is it to learn?

A new operator can run standard hole/slot jobs after short video training. Complex 3D milling needs CAD/CAM experience.

Do you support custom fixtures?

Yes. Send profile cross-section, hole pattern and batch size; we propose clamps, tools and cycle layout.
