High-Precision CNC Circular Saw for Industrial Aluminum Profiles

Technical Specifications

How the Saw Operates

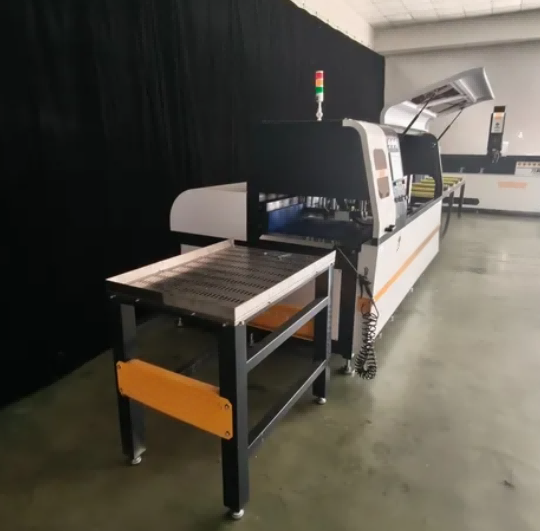

The CNC Circular Saw for Industrial Aluminum Profiles operates with a servo-driven feed axis that positions the profile under the saw blade according to the length entered on the touchscreen. The operator loads the aluminum extrusion onto the input roller table, selects the cutting program from memory or enters new dimensions, and starts the cycle. Pneumatic clamps engage from both vertical and horizontal directions to hold the profile against the reference stops. The saw head, equipped with a gas-liquid damping cylinder, descends through the material with a controlled feed rate to produce a square, burr-free cut. An atomized cutting fluid spray cools the blade and workpiece during the cut. After the blade retracts, the clamps release and the servo feed advances the profile to the next cut position. The standard configuration cuts at 90° and ±45°. With the optional CNC angle module, the saw head rotates to any angle between 22.5° and 157.5° under program control.

Key Features

Fully Automatic Operation – Automatic material feeding, clamping, and sawing for maximum efficiency.

Heavy-Duty Structure – Reinforced machine frame minimizes vibration and ensures long-term stability.

Burr-Free Technology – Optimized blade speed and cooling system reduce burrs and secondary processing.

User-Friendly CNC Interface – Intuitive touchscreen control for quick setup and easy operation.

Flexible Cutting Angles – Supports 45°, 90°, and custom angle cutting for versatile applications

CNC Circular Saw for Industrial Aluminum Profiles Standard Accessories

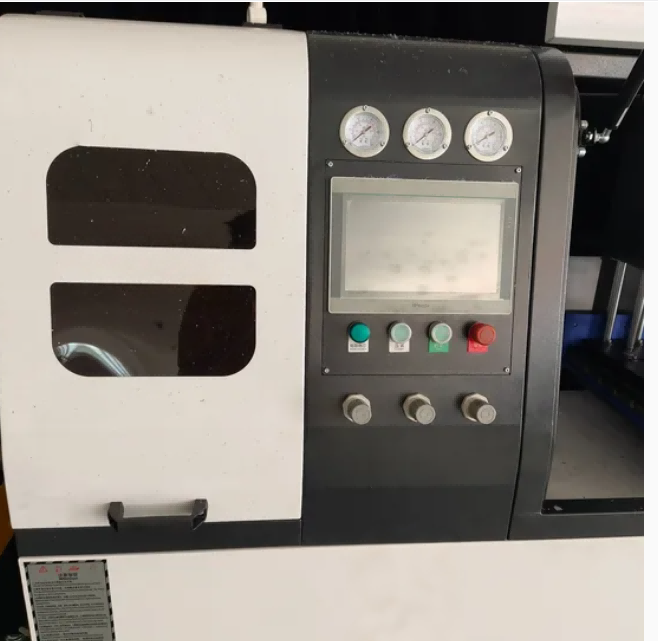

1. CNC servo feeding control system + 10-inch multi-language touch screen
2. Imported tungsten carbide circular saw blade for aluminum
3. Gas-liquid damping cutting saw head assembly

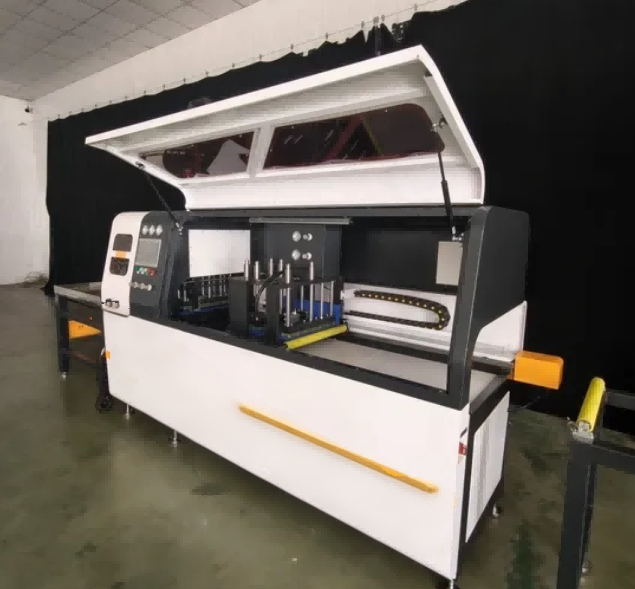

4. Dual pneumatic automatic clamping device with soft anti-scratch jaws
5. Automatic cooling lubrication circulation system
6. Full enclosed safety blade protective cover
7. Aluminum chip dust collection pipeline
8. Emergency stop button, collision protection sensor
9. Complete English operation & maintenance manual, spare parts toolkit

CNC Circular Saw for Industrial Aluminum Profiles Optional Upgrade Modules

1. Zero-tail cutting structure (residual tail ≤5mm, high material utilization)
2. Automatic loading & unloading roller conveyor line for 6m long profiles
3. CNC arbitrary angle cutting module (22.5°--157.5°)
4. Large capacity chip storage dust collector
5. IoT remote online diagnosis & data statistics module
6. Bundle multi-piece synchronous clamping fixture
7. Custom extended feeding travel up to 12000mm

Application Scenarios

Aluminum window and door profiles

Curtain wall and facade systems

Solar panel frame cutting

Industrial aluminum extrusions

Rail transit and automotive aluminum parts

Furniture and heat sink profiles

Our Service

1. A minimum one-year warranty from the date of commissioning.
2. Complimentary consultation before, during, and after the sale.
3. Complimentary project planning and layout design.
4. Complimentary equipment debugging until all functions operate as specified.
5. Complimentary coordination of long-distance shipping arrangements.
6. Complimentary training on equipment operation and maintenance.
7. One-year complete warranty and lifetime maintenance service.
