2m Vertical Insulating Glass Washing Machine

Key Features

Max. Processing Width: 2000mm (79"), suitable for standard residential and commercial glass sizes

Vertical Design: Space-saving footprint, glass stands vertically on conveyor, no suction cups required

Low-E Compatible: 3 pairs of soft brushes (or customizable) protect Low-E coatings while ensuring thorough cleaning

Efficient Drying: High-pressure hot-air knife system with automatic temperature control, ensures zero water spots

Durable Construction: Stainless steel washing chamber and rust-proof materials for long service life

Easy Operation: PLC control with touchscreen HMI, adjustable washing speed (2–8 m/min)

Safety: Photoelectric sensors for glass detection, automatic stop on jam, CE certified



Technical Parameters

Line Configuration & Workflow

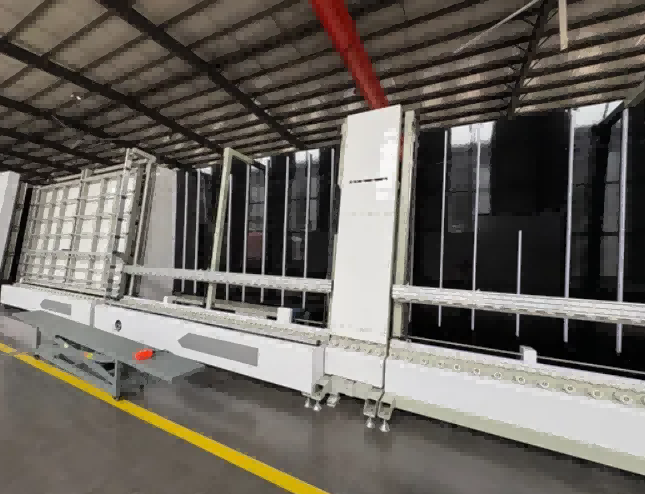

The Automatic Washing Drying Press Line for Insulated Glass is arranged as a straight-flow production line consisting of four interconnected stations. Glass sheets enter at the loading end and pass sequentially through each section:

• Loading and inspection section: Glass panes are placed manually or by loader onto the input conveyor. Optical sensors detect glass presence, dimensions, and coated surfaces before feeding into the washing zone.

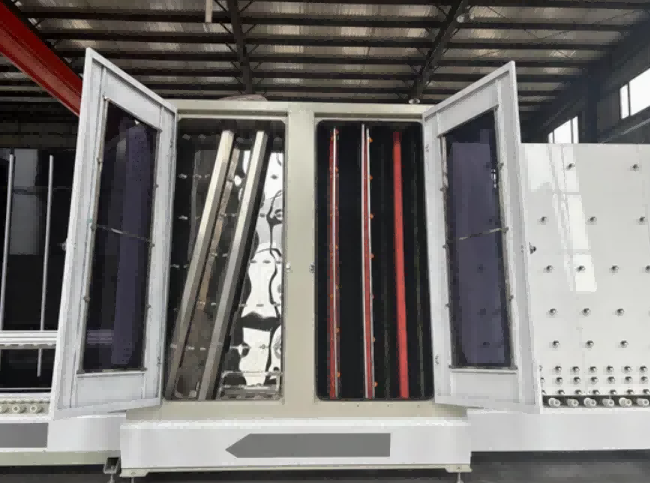

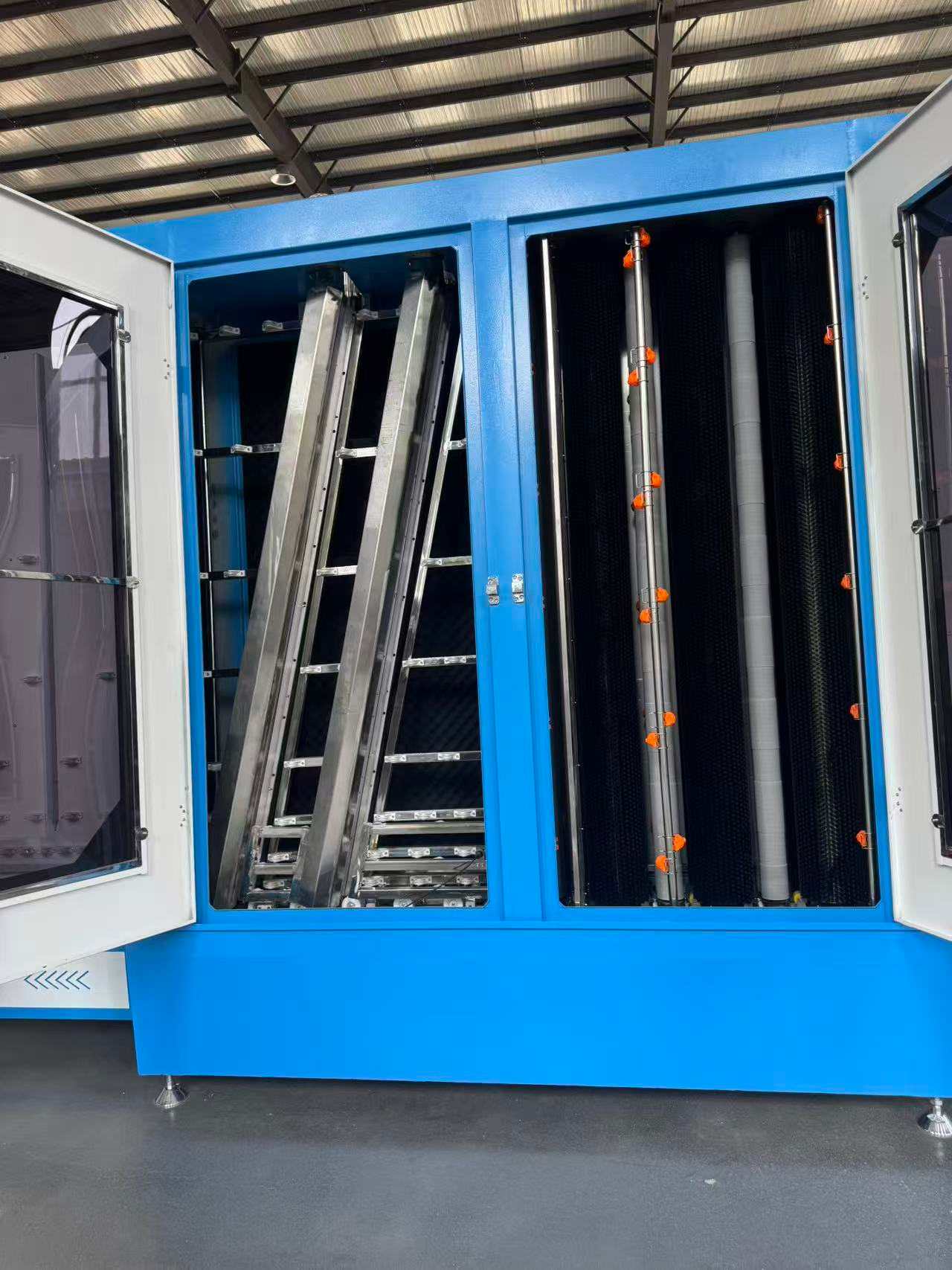

• Washing and rinsing section: Rotating nylon brushes with adjustable pressure scrub both glass surfaces. Fresh water or recirculated water is sprayed through flat-jet nozzles, followed by a demineralized water rinse to prevent mineral residue.
• Drying section: Heated air is blown through air knives positioned above and below the glass path. The air knife gap adjusts to glass thickness automatically. A closed-loop heating system recirculates and reheats the air to maintain drying efficiency while managing energy consumption.
• Assembly and press section: The aluminum spacer frame, pre-filled with desiccant and coated with primary seal, is positioned on the glass pane. The second glass pane is aligned pneumatically. The servo-driven press brings the panes together at a controlled rate. Argon filling can be performed in this section through a probe inserted between the panes before final pressing.

Applications

Pre-processing for insulating glass (IGU) production lines

Double glazing and triple glazing manufacturing

Low-E glass and tempered glass cleaning

Architectural glass fabrication workshops

Manufacturer & Warranty

LEBULANG, operating as Lebulang Machine, has produced glass processing equipment at its Jinan factory since 1996. The Automatic Washing Drying Press Line for Insulating Glass is manufactured under an integrated system covering R&D, machining, assembly, and testing. Each line undergoes a full test run with actual glass before shipment, and a pre-delivery inspection report is provided. The standard warranty is one year on the main structure and components. Remote technical support, online program updates, and operation training are included. Spare parts are stocked and can be dispatched with regular freight shipments. On-site installation and commissioning can be arranged at additional cost.

Why Choose Us）

Factory Direct: Competitive pricing with full technical support

Customization: Width, voltage, and optional modules tailored to your needs

After-Sales: 12-month warranty, remote commissioning, spare parts available globally

Experience: 10+ years in IG manufacturing equipment
