Precision PVC Corner Cleaning Machine for Windows
Professional CNC corner cleaning machine for PVC/UPVC windows. Features 3-axis automatic control, heavy-duty construction, and high-speed cleaning. Ideal for post-welding profile finishing. Factory direct price, global shipping.
This CNC 3-axis automatic PVC corner cleaning machine is engineered for post-welding finishing of UPVC window and door profiles. Combining high-speed servo-driven cutters with a robust heavy-duty frame, it precisely removes welding seams, burrs, and flashing from all corners in seconds. Designed to handle colored, co-extruded, and laminated profiles, it delivers flawless, paint-ready surfaces without manual grinding—maximizing both production efficiency and product aesthetics.
Specifications & Compatibility:
Designed for versatility, the machine handles UPVC profiles ranging from 20–120mm in width and 30–120mm in height, streamlining workflows across factories. Its advanced mechanics accommodate complex geometries, ensuring consistent results for diverse window types.
🎯
3-Axis CNC Precision
Simultaneous cleaning of top surface, bottom surface, rubber groove, and weld seam. Servo-controlled cutters follow exact profile contours for consistent, burr-free results.
02
⚙️
Automatic Tool Change
Quick-change cutter system adapts to different profile shapes in seconds. Pre-programmed recipes for instant switching between window types.
03
🖥️
Touchscreen CNC Control
Intuitive HMI with programmable parameters. Store hundreds of profile cleaning programs. Real-time monitoring and fault diagnostics.
04
🏗️
Heavy-Duty Industrial Frame
Reinforced steel construction with vibration-damping design. Built for 24/7 continuous operation in high-volume production environments.
05
🎨
Gentle on Colored Profiles
Optimized cutting paths protect co-extruded, laminated, and spray-coated surfaces from damage. No scratching, no peeling, perfect finish.
Application Scenarios
UPVC casement window production lines
Sliding window & door fabrication
Tilt-and-turn window manufacturing
PVC profile post-weld finishing stations
OEM window factories requiring consistent corner aesthetics
No.IconTitleDescription01🎯3-Axis CNC PrecisionSimultaneous cleaning of top surface, bottom surface, rubber groove, and weld seam. Servo-controlled cutters follow exact profile contours for consistent, burr-free results.02⚙️Automatic Tool ChangeQuick-change cutter system adapts to different profile shapes in seconds. Pre-programmed recipes for instant switching between window types.03🖥️Touchscreen CNC ControlIntuitive HMI with programmable parameters. Store hundreds of profile cleaning programs. Real-time monitoring and fault diagnostics.04🏗️Heavy-Duty Industrial FrameReinforced steel construction with vibration-damping design. Built for 24/7 continuous operation in high-volume production environments.05🎨Gentle on Colored ProfilesOptimized cutting paths protect co-extruded, laminated, and spray-coated surfaces from damage. No scratching, no peeling, perfect finish.
Product Details
- Professional UPVC Welding Seam Processing: This PVC Corner Cleaning Machine for Windows is exclusively designed for removing welding burrs and finishing welding corners of UPVC/PVC window profiles, solving the problems of uneven manual cleaning and low consistency.
- Intelligent CNC Data Storage: The advanced CNC control system can store more than 100 groups of processing parameters. Users can call preset data directly for mass production, greatly improving production consistency and efficiency.

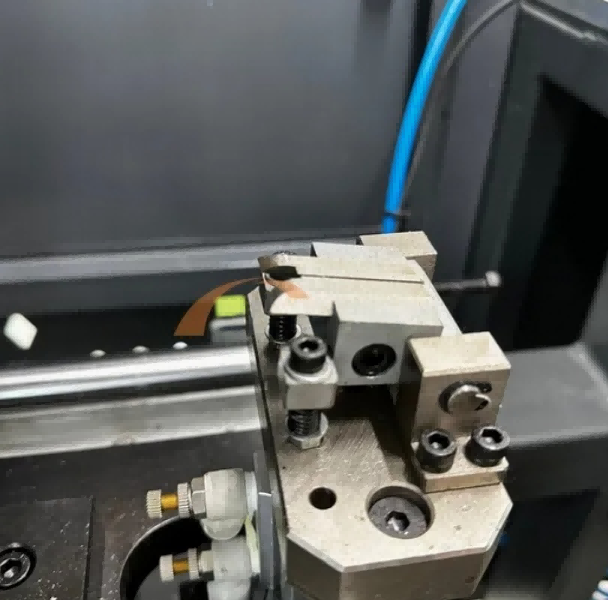

- Complete Multi-directional Cleaning: With four built-in cutters working synchronously, the machine automatically finishes outer corner, vertical surface, upper and lower welding seam cleaning in one cycle, no manual auxiliary trimming needed.
- Precision Compensation Technology: Equipped with size tolerance compensation and circular interpolation functions, it effectively eliminates processing errors, ensures smooth arc transition and tight corner fitting for finished windows.

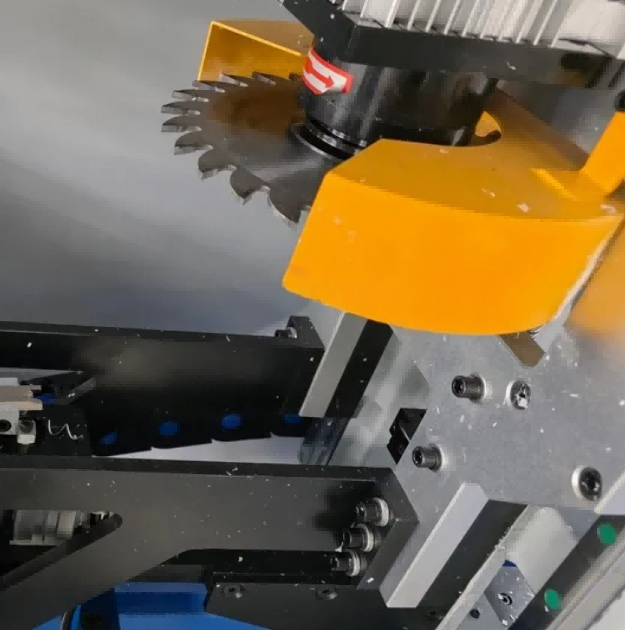

- High-speed & Stable Servo Performance: Adopting original YASKAWA servo motor system and 2800r/min high-speed spindle, it only takes 25 seconds to complete one full corner cleaning, supporting long-term high-intensity batch operation.
- Standardized & Safe Production: CE and ISO certified, matched with stable 0.5--0.8MPa pneumatic system and 3KW rated power, the PVC Corner Cleaning Machine for Windows runs stably with low failure rate, fully meeting industrial standardized production requirements.
Detailed Highlights
1️⃣ Multi-Surface Cleaning
Cleans top weld seam, bottom surface, rubber seal groove, and diagonal weld bead in one cycle
Independent servo control for each axis ensures precise depth and angle
Adjustable cutting speed for different profile materials
2️⃣ Smart CNC System
7-inch color touchscreen with user-friendly interface
USB port for program backup and transfer
Password-protected parameter settings prevent unauthorized changes
Multi-language support (English, Spanish, Russian, Arabic, etc.)
3️⃣ Efficient Production Design
Pneumatic clamping system with adjustable pressure
Automatic profile detection and positioning
Cycle time: approximately 25-40 seconds per corner (depending on profile complexity)
Compatible with inline conveyor systems for continuous flow
4️⃣ Quality Assurance
Key components from international brands (Schneider, Siemens, Omron, Airtac)
Hardened and ground cutter blades for extended service life
72-hour continuous test run before factory dispatch
Complete operation manual, training video, and remote support included
Technical Parameters
| Item | Specification |
| Product Name | UPVC Window CNC Corner Cleaning Machine |
| Certification | CE, ISO |
| Automatic Grade | Full Automatic, CNC Controlled |
| Input Voltage | 380V / 50Hz |
| Input Power | 3KW |
| Main Cutter Revolution | 2800r/min |
| Working Air Pressure | 0.5--0.8MPa |
| Air Consumption | 60L/min |
| Applicable Profile Height | 30--120mm |
| Applicable Profile Width | 20--120mm |
| Single Corner Processing Time | ≤25 seconds |
| Overall Dimension | 2000×1820×1500mm |
| Machine Weight | 600kg |
| Origin | China |
| Transport Package | Wooden Export Package |
Frequently Asked Questions (FAQ)
Q1: Can this machine clean all types of UPVC profiles?
A: Yes. The CNC system can be programmed for any PVC/UPVC profile shape—casement, sliding, tilt-and-turn, and more. It handles white, colored, co-extruded, and laminated profiles with appropriate cutter paths to avoid surface damage.
Q2: How long does it take to clean one window corner?
A: Cycle time is approximately 25–40 seconds per corner, depending on profile complexity and the number of surfaces to clean. This is significantly faster than manual grinding and delivers superior consistency.
Q3: Is the machine difficult to program for new profiles?
A: Not at all. The touchscreen interface is intuitive. Operators can manually teach new profiles by moving the cutter to key points, and the system automatically generates the cleaning path. Saved programs can be recalled instantly for repeat orders.
Q4: What maintenance is required?
A: Routine maintenance includes periodic lubrication of guide rails, checking pneumatic connections, and replacing cutter blades. We provide a maintenance schedule and spare parts list. Most wearing parts are standard and readily available.
Q5: Do you provide installation and training?
A: Yes. We supply a full English manual, instructional video, and remote training via video call. On-site installation and training can be arranged for large orders or production lines.
Why Choose Us
10+ years specializing in PVC window machinery
CE certified production with strict QC on every unit
Custom tooling available for proprietary profile designs
Global shipping with installation support and spare parts network
12-month warranty + lifetime technical assistance
