Precision CNC Circular Saw for Industrial Aluminum Profiles

Technical Specifications

How the Saw Operates

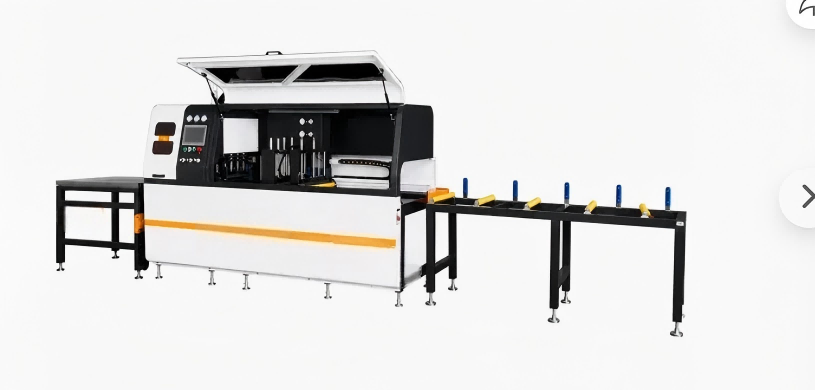

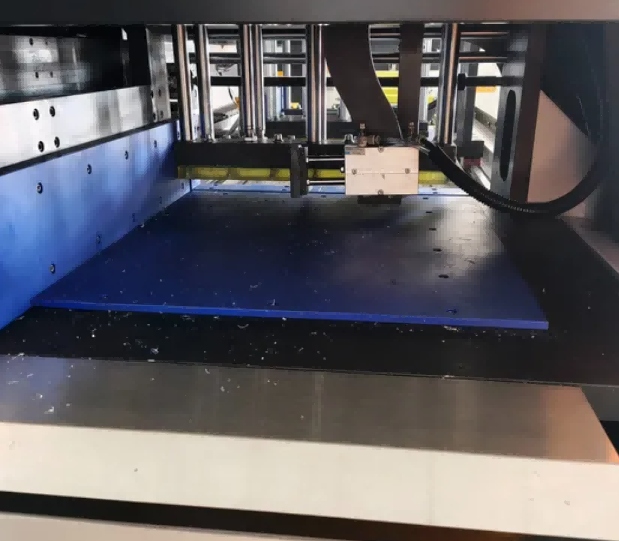

The CNC Circular Saw for Industrial Aluminum Profiles operates with a servo-driven feed axis that positions the profile under the saw blade according to the length entered on the touchscreen. The operator loads the aluminum extrusion onto the input roller table, selects the cutting program from memory or enters new dimensions, and starts the cycle. Pneumatic clamps engage from both vertical and horizontal directions to hold the profile against the reference stops. The saw head, equipped with a gas-liquid damping cylinder, descends through the material with a controlled feed rate to produce a square, burr-free cut. An atomized cutting fluid spray cools the blade and workpiece during the cut. After the blade retracts, the clamps release and the servo feed advances the profile to the next cut position. The standard configuration cuts at 90° and ±45°. With the optional CNC angle module, the saw head rotates to any angle between 22.5° and 157.5° under program control.

Key Features

Fully Automatic Operation – Automatic material feeding, clamping, and sawing for maximum efficiency.

Heavy-Duty Structure – Reinforced machine frame minimizes vibration and ensures long-term stability.

Burr-Free Technology – Optimized blade speed and cooling system reduce burrs and secondary processing.

User-Friendly CNC Interface – Intuitive touchscreen control for quick setup and easy operation.

Flexible Cutting Angles – Supports 45°, 90°, and custom angle cutting for versatile applications

Working Process

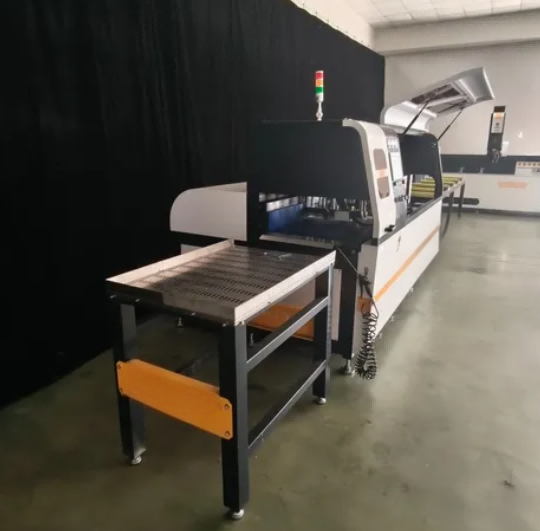

Automatic Loading – Profiles are loaded via roller conveyor or automatic loader.

Precision Positioning – Servo-driven feeding ensures exact cutting length.

Secure Clamping – Pneumatic/hydraulic clamps hold profiles firmly.

High-Speed Cutting – CNC-controlled saw head executes clean, accurate cuts.

Chip Removal & Cooling – Integrated cooling and chip conveyor keep the workspace clean.

CNC Circular Saw for Industrial Aluminum Profiles Optional Upgrade Modules

1. Zero-tail cutting structure (residual tail ≤5mm, high material utilization)
2. Automatic loading & unloading roller conveyor line for 6m long profiles
3. CNC arbitrary angle cutting module (22.5°--157.5°)
4. Large capacity chip storage dust collector
5. IoT remote online diagnosis & data statistics module
6. Bundle multi-piece synchronous clamping fixture
7. Custom extended feeding travel up to 12000mm

Application Scenarios

Aluminum window and door profiles

Curtain wall and facade systems

Solar panel frame cutting

Industrial aluminum extrusions

Rail transit and automotive aluminum parts

Furniture and heat sink profiles

FAQ

Q1: What profiles can this CNC saw cut?

A: It is designed for industrial aluminum profiles, including window/door sections, curtain walls, and solar frames. Custom solutions are available for larger extrusions.

Q2: Is the machine fully automatic?

A: Yes. It supports automatic feeding, clamping, cutting, and unloading, requiring only one operator.

Q3: Can it cut at angles other than 90°?

A: Yes. Standard models support 45° and 90°; custom angle cutting is available upon request.

Q4: What is the cutting accuracy?

A: The feeding accuracy is ±0.1 mm, ensuring high repeatability for mass production.
