High-Precision UPVC Window Glazing Bead Cutting Saw
This Heavy-Duty UPVC Window Glazing Bead Cutting Saw is engineered for precision and efficiency in PVC window and door fabrication. Designed to deliver flawless 45° mitre cuts, it ensures seamless corners and a perfect fit for glazing beads. Featuring a robust pneumatic clamping system and high-speed carbide-tipped saw blade, this machine minimizes vibration and maximizes cutting accuracy. Ideal for window manufacturers seeking to boost production speed and maintain superior quality
Shandong Lebulang Precision Machinery Co., Ltd., a trusted global supplier dedicated to PVC/UPVC window & door processing equipment, introduces the cutting-edge Glazing Bead Cutting Saw engineered for exceptional efficiency. This innovative machine features a dual 0.75kw motor system with twin saw blades, enabling simultaneous cutting of two glazing bead profiles to double productivity. Leveraging our years of industry expertise, the machine ensures precise 45° angled cuts and flawless chamfers through advanced positioning technology, aligning with diverse window fabrication demands and embodying Lebulang’s commitment to technological advancement and customer-centric solutions.
This Heavy-Duty UPVC Window Glazing Bead Cutting Saw is purpose-built for high-precision 45° mitre cutting of PVC window glazing beads. Designed for modern window and door fabrication, it ensures clean, burr-free cuts with tight corner joints. Equipped with a pneumatic clamping system, carbide-tipped saw blade, and stable cutting head, this machine improves production efficiency while reducing material waste. It is an essential solution for UPVC window manufacturers, fabricators, and door & window assembly lines.
Key Features
45° Precision Mitre Cutting
Delivers seamless corner joints for UPVC window glazing beads with ±0.1mm accuracy.
Pneumatic Clamping System
Holds profiles firmly in place during cutting to minimize vibration and deviation.
Heavy-Duty Saw Blade
High-speed carbide-tipped blade ensures smooth, clean cutting surfaces without burrs.
Double-Head Design (Optional)
Supports simultaneous cutting of both ends to significantly increase productivity.
User-Friendly Operation
Simple control panel with button or foot pedal operation reduces operator fatigue.
Robust Industrial Structure
Heavy-duty steel frame with anti-corrosion coating ensures long service life in workshop environments.
Safety Protection
Fitted with safety guards and emergency stop switch for operator safety.
Technical Specifications
| Item | Specification |
| Power Supply | 380V, 50-60Hz, 3Ph |
| Input Power | 2*0.75kw |
| Spindle Rotary Speed | 2800r/min |
| Working Air Pressure | 0.5~0.8Mpa |
| Air Consumption | 20L/min |
| Cutting Depth | 29mm |
| Cutting Width | 120mm |
| Cutting Range | 320~1800mm |
| Saw Blade Diameter | Ø210mm |
| Milling Cutting Diameter | Ø135mm |
| Overall Dimension(L*W*H) | 1300*700*1350mm |
| Applicable Materials | UPVC, PVC Plastic Glazing Bead |
| Core Structure | 2 sets of motor + blade + milling cutter, vertical clamping device |
| Processing Capacity | 2 pcs profiles cutting at one time |

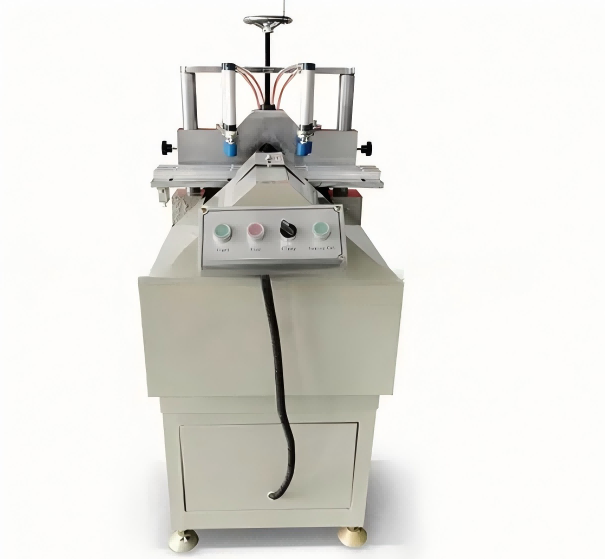

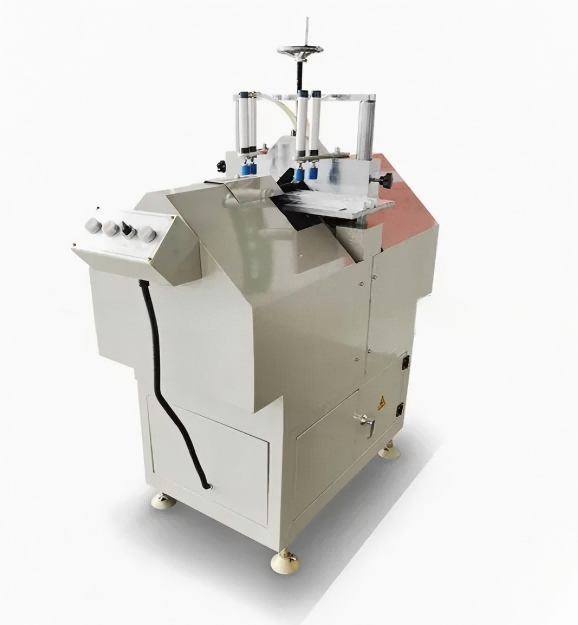

Machine Details
This professional Glazing Bead Cutting Saw UPVC Window Glazing Bead Cutting Machine is dedicated to UPVC window glazing bead processing, featuring dual saw blades to finish cutting and chamfering in one go. It performs 45° cutting and angle milling for glass beads, and can process two profiles simultaneously for higher productivity.
Built with horizontal structure, the equipment runs steadily and allows easy profile clamping with simple operation. It comes with adjustable positioning plate, fine-tuning device and pressure strip gaskets, ensuring precise assembly fit and no frequent part replacement during profile switching.
FAQ
Q1: Is this machine suitable for aluminum glazing beads?
A: This model is designed for UPVC and PVC profiles. For aluminum cutting, please refer to our aluminum cutting saw series.
Q2: Can the cutting angle be adjusted?
A: The standard model is fixed at 45° for glazing bead corners. Adjustable-angle models are available upon request.
Q3: Do you provide installation and training?
A: Yes, we provide operation manuals, instructional videos, and online guidance. On-site installation is available for bulk orders.
Q4: What is the lead time?
A: Standard machines require 7–15 working days. Customized machines require 15–25 working days.
