High-Precision CNC Glass Cutting Machine for Insulating Glass
The CNC Glass Cutting Machine for Insulating Glass is a high-precision, automated solution designed specifically for cutting glass sheets used in insulated glass unit (IGU) production. Equipped with a servo-driven control system, automatic loading table, and intelligent optimization software, it delivers clean, accurate cuts with minimal material waste. Compatible with various glass thicknesses and sizes, this machine integrates seamlessly into double glazing and IG production lines. Built for high throughput, energy efficiency, and operator-friendly control, it is a reliable choice for modern glass processing facilities.
The CNC Glass Cutting Machine for Insulating Glass is a high-performance, automated cutting solution engineered specifically for insulated glass unit (IGU) and double glazing production. Featuring servo-driven precision control, automatic loading system, and intelligent nesting software, it delivers clean, accurate cuts with minimal glass waste. Designed to handle various glass thicknesses and sizes, this machine integrates seamlessly into modern IG production lines. Built for high throughput, energy efficiency, and operator-friendly control, it is a reliable choice for glass processors worldwide
Technical Parameters
| Item | Specification |
| Max Processing Glass Size | 3800×2600mm |
| Min Processing Glass Size | 300×300mm |
| Applicable Glass Thickness | 3-19mm |
| Cutting Speed | 0-120m/min (Stepless Adjustable) |
| Cutting Accuracy | ±0.1mm |
| Diagonal Accuracy | ±0.2mm/m |
| Working Air Pressure | 0.6-0.8MPa |
| Input Voltage | 380V/50Hz (Customizable) |
| Total Power | 12.5kW |
| Overall Dimension | 5500×4200×1200mm |
| Machine Weight | About 6500kg |
Advantages
This innovative system is the only one that ensures perfect uniformity and consistent quality across all machines produced. Every component, including the felt table surface, can be easily replaced if needed.
Its control panel features an integrated independent computer and software package with an optimization program developed under multitasking systems. It includes a user-friendly graphical interface for managing the cutting cycle and monitoring the machine, along with a hydraulic tilting surface, air cushion, and ventilator for moving glass sheets across the table.
Equipped with renowned imported electrical components or reliable domestic brands, CNC Glass Cutting Machine for Insulating Glass delivers high cutting precision and stability, capable of handling various glass shapes.

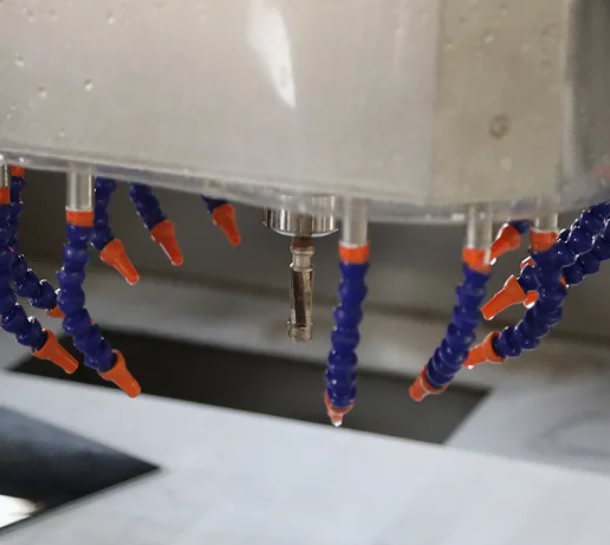

Automatic oil injection and constant pressure regulation functions effectively ensure stable cutting performance and high-quality results. The system is simple, easy to manage, and requires no special operator skills. Training is straightforward, and even unskilled workers can quickly learn to operate CNC Glass Cutting Machine for Insulating Glass.
Glass presence safety: An automatic sensor is installed on the cutting head, which stops the machine immediately if no glass sheet is detected on CNC Glass Cutting Machine for Insulating Glass.
CNC Glass Cutting Machine for Insulating Glass includes imported cutter wheels and setting tools, stable voltage power supply, English cutting software and instructions, and AutoCAD-designed graphics and figures. All cutting operations are fully CNC controlled.
Key Features
✅ Servo-Driven Precision – High-accuracy cutting with repeatable positioning

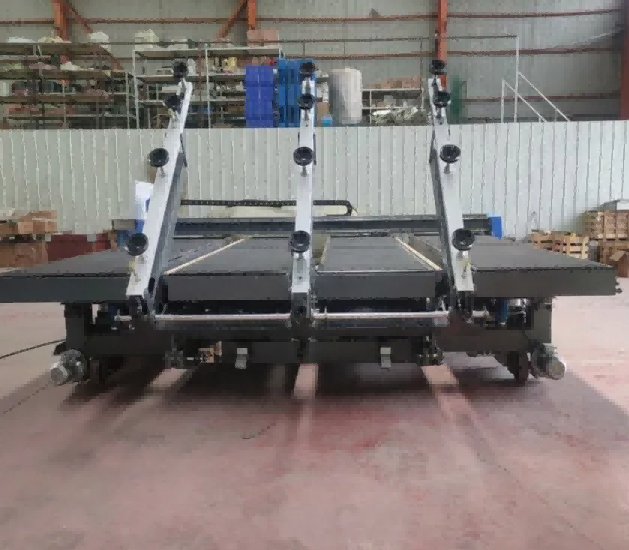

✅ Automatic Loading Table – Reduces manual labor and improves safety
✅ Intelligent Nesting Software – Optimizes glass yield and minimizes waste
✅ User-Friendly Interface – Touch screen control with intuitive operation
✅ Versatile Cutting Capability – Straight line, shape cutting, notching supported
✅ Heavy-Duty Frame – Rigid construction ensures long-term stability
✅ Low Breakage Rate – Optimized cutting pressure and speed control
✅ Customizable Configuration – Voltage, cutting size, software language available
Applications
Insulated Glass Units (IGU) production
Double glazing for windows and doors
Curtain wall and façade glass
Architectural energy-saving glass
Residential and commercial window manufacturing
FAQ
Q1: What kinds of glass can this CNC cutting machine process?
A: It is suitable for cutting float glass, pre-tempered glass, Low-E coated glass, laminated glass and patterned glass, covering the common glass types required for insulating glass production.
Q2: Does it support custom special-shaped cutting?
A: Yes. The system supports DXF format file import, which can realize cutting of circles, arcs, triangles and various irregular special-shaped glass, meeting personalized processing requirements.
Q3: Is the equipment easy to operate for new workers?
A: Equipped with intuitive touch screen operation interface and multi-language system, it supports one-key setting of conventional sizes. We provide detailed operation manuals and video tutorials, and new operators can master basic operations in a short time.
Q4: Can this machine be connected with a complete insulating glass production line?
A: Absolutely. This equipment is designed for supporting insulating glass production, which can be seamlessly connected with glass washing machine, hot press machine, sealing machine and other equipment to realize automated assembly line operation.
