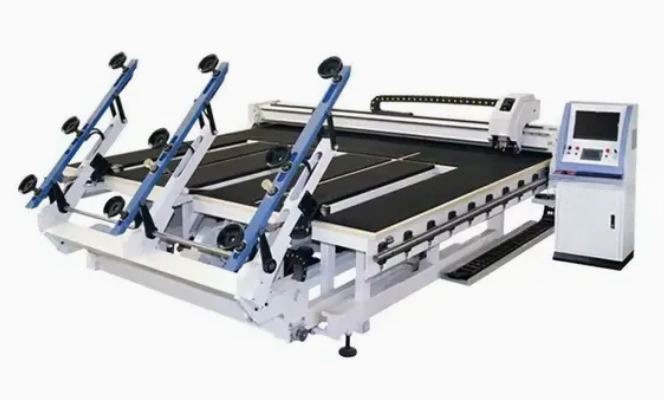

High-Precision Automatic CNC Glass Cutting Machine for Insulating Glass

Technical Parameters

Item	Specification
Max Processing Glass Size	3800×2600mm
Min Processing Glass Size	300×300mm
Applicable Glass Thickness	3-19mm
Cutting Speed	0-120m/min (Stepless Adjustable)
Cutting Accuracy	±0.1mm
Diagonal Accuracy	±0.2mm/m
Working Air Pressure	0.6-0.8MPa
Input Voltage	380V/50Hz (Customizable)
Total Power	12.5kW
Overall Dimension	5500×4200×1200mm
Machine Weight	About 6500kg



Advantages

This innovative system is the only one that ensures perfect uniformity and consistent quality across all machines produced. Every component, including the felt table surface, can be easily replaced if needed.

Its control panel features an integrated independent computer and software package with an optimization program developed under multitasking systems. It includes a user-friendly graphical interface for managing the cutting cycle and monitoring the machine, along with a hydraulic tilting surface, air cushion, and ventilator for moving glass sheets across the table.

Equipped with renowned imported electrical components or reliable domestic brands, CNC Glass Cutting Machine for Insulating Glass delivers high cutting precision and stability, capable of handling various glass shapes.

Automatic oil injection and constant pressure regulation functions effectively ensure stable cutting performance and high-quality results. The system is simple, easy to manage, and requires no special operator skills. Training is straightforward, and even unskilled workers can quickly learn to operate CNC Glass Cutting Machine for Insulating Glass.

Glass presence safety: An automatic sensor is installed on the cutting head, which stops the machine immediately if no glass sheet is detected on CNC Glass Cutting Machine for Insulating Glass.

CNC Glass Cutting Machine for Insulating Glass includes imported cutter wheels and setting tools, stable voltage power supply, English cutting software and instructions, and AutoCAD-designed graphics and figures. All cutting operations are fully CNC controlled.

Key Features

✅ Servo-Driven Precision – High-accuracy cutting with repeatable positioning

✅ Automatic Loading Table – Reduces manual labor and improves safety

✅ Intelligent Nesting Software – Optimizes glass yield and minimizes waste

✅ User-Friendly Interface – Touch screen control with intuitive operation

✅ Versatile Cutting Capability – Straight line, shape cutting, notching supported

✅ Heavy-Duty Frame – Rigid construction ensures long-term stability

✅ Low Breakage Rate – Optimized cutting pressure and speed control

✅ Customizable Configuration – Voltage, cutting size, software language available

Buyer's Reasons）

Less Glass Waste → Nesting software pays for itself in material savings within months.

Fewer Operators → One person can run loading + cutting vs. traditional 2–3.

Better IG Quality → Accurate cut sizes mean tighter seals and fewer rejected units.

Faster ROI → High throughput + low scrap + low labor = shorter payback period.

Proven Reliability → Machines running in 20+ countries, backed by spare parts & remote support

Why Choose This Machine

Maximized Material Yield – Intelligent nesting reduces glass waste by up to 5–8%.

Consistent Cutting Quality – Servo control ensures every cut meets tight tolerances.

Reduced Labor Cost – Automatic loading and breakout minimize manual handling.

Seamless Line Integration – Compatible with washing, pressing, and sealing machines in IG lines.

Global Support – Installation guidance, remote troubleshooting, spare parts supply.
