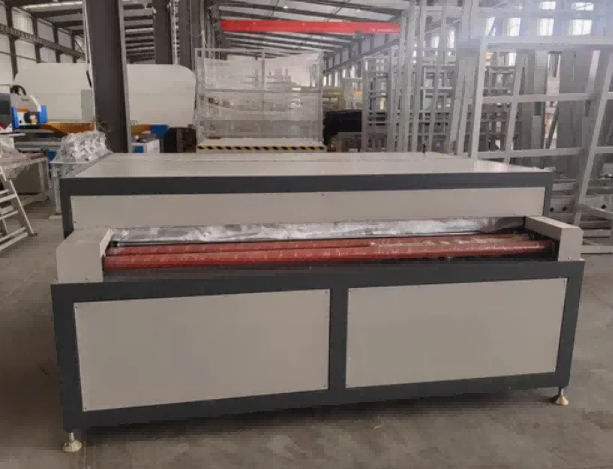

High-Precision 1600 Insulating Glass Hot Press Machine

Core Features

• Designed for warm-edge insulating glass processing and compatible with mainstream warm-edge spacer specifications. Also usable for conventional rigid spacer IGU pressing.
• The lifting mechanism uses one-way overall adjustment to distribute the load evenly across the press, reducing uneven wear and supporting stable rotation during operation.
• A closed-loop temperature control system keeps the heating plates at a stable preset temperature, lowering energy consumption while maintaining uniform heat transfer to the glass edges.
• Conveyor speed is steplessly adjustable from 0 to 4.0 m/min, enabling the operator to match feed rate to glass size, thickness, and production volume.
• A PLC interface allows setting and monitoring of key parameters such as temperature, pressure, and cycle time through a single panel.
• Standard safety provisions include an emergency stop circuit and overload protection for the drive and heating elements.
• A welded heavy-duty steel frame reduces vibration during press cycles and is built for continuous operation in high-output IGU lines.
• Accepts double and triple insulating glass units with total thickness up to 50 mm.
• Key service points are accessible through removable panels, allowing routine checks and component replacement with minimal downtime.



Technical Parameters

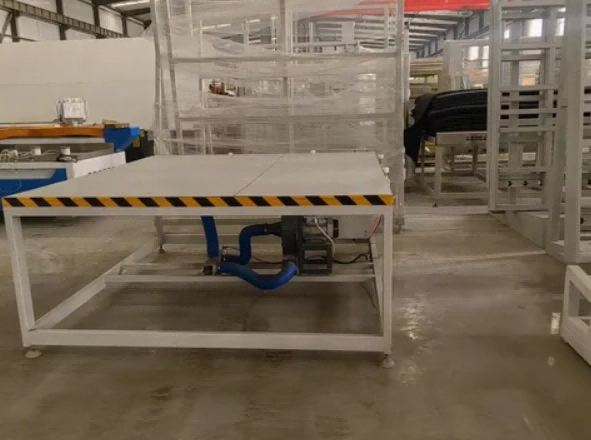

Glass Loading – The glass and spacer assembly is manually or automatically placed on the press table.

Positioning & Alignment – The machine aligns the glass panels for precise bonding.

Heating Stage – The heating plates raise the temperature to activate the sealant.

Pressing Stage – Hydraulic cylinders apply uniform pressure across the entire glass surface.

Cooling & Unloading – The bonded IGU is stabilized and removed for next processing steps.

（Applications）

Curtain wall insulated glass

Window and door double glazing units

Architectural energy-saving glass

Commercial façade glass

Residential insulated windows

FAQ

Q1: What type of insulating glass is this 1600 Insulating Glass Hot Press Machine suitable for?

A: It is built for warm-edge insulating glass production and works with all mainstream warm-edge spacer specifications. It can also be applied to conventional rigid spacer IGU pressing when the corresponding tooling is used.

Q2: Is the working speed adjustable during operation?

A: Yes, the conveyor speed is adjustable from 0 to 4.0 m/min. The operator sets the speed based on glass dimensions and line throughput, with no fixed steps between speeds.

Q3: Does the temperature control system support automatic adjustment?

A: The heating plates are regulated by an automatic temperature controller. Once the target temperature is set on the PLC, the system holds it within a narrow band, which keeps pressing conditions consistent and reduces unnecessary power draw.

Q4: What is the advantage of the equipment's lifting mechanism?

A: The one-way overall adjustment design spreads the mechanical load across the lifting structure. This reduces localized stress, helps maintain parallel alignment, and contributes to stable, vibration-free rotation during the press cycle.

Q5: What after-sales services can you provide?

A: The standard package includes a one-year warranty on core components, 24-hour remote technical support, free operator training materials, and long-term supply of spare parts. Parameter customization and on-site service can be arranged at additional cost where local support is not available.
