Automatic Glass Cutting Machine

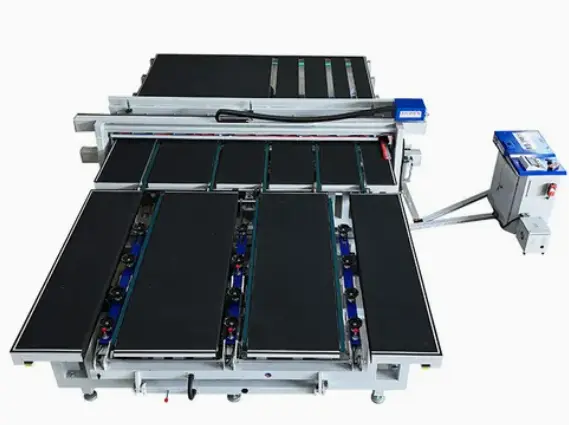

The Automatic Glass Cutting Machine is a high-precision CNC cutting system engineered for flat glass processing. Equipped with a servo-driven gantry, automatic loading table, and intelligent nesting software, it delivers fast, accurate cutting for float glass, tempered glass (pre-cut), laminated glass, and mirror. The machine supports cutting lengths up to 6000mm and widths up to 3300mm, with cutting accuracy of ±0.15mm and repeatability of ±0.10mm. Features include automatic air-float positioning, oil-free linear guides, and a user-friendly touchscreen interface compatible with DXF, NC, and CNC file formats. Ideal for architectural glass, furniture glass, automotive glass, and solar panel production lines. CE certification and OEM customization available.
Overview

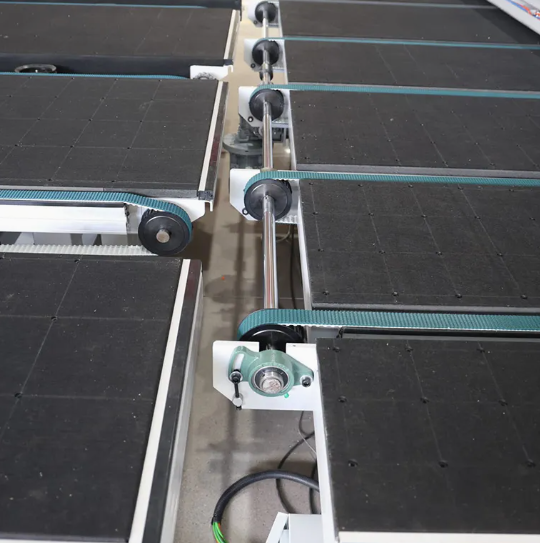

The Fully Automatic Window & Door Glass Cutting Machine integrates automatic loading → edge finding → CAD nesting → CNC cutting → air-float transfer → automatic breaking → labeling into one seamless, unmanned production line.
Designed for window and door glass fabricators who demand maximum throughput with minimum labor, this system eliminates every manual step between raw glass sheet and finished cut pane. Import your cutting list from window software, press start, and the machine delivers perfectly sized glass — labeled and ready for glazing.
Key Features
🤖 Truly Unmanned Production — From raw sheet to finished pane, zero manual handling. One operator monitors the entire line from a single HMI terminal.

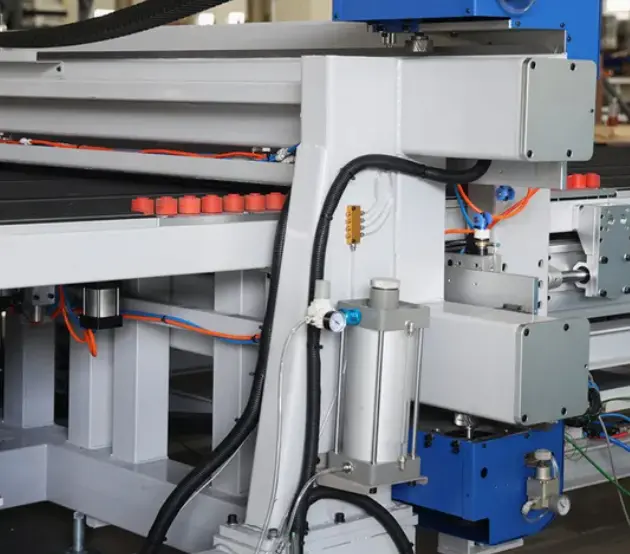

⚡ 24/7 Continuous Operation — Servo-driven gantry, industrial-grade components (Yaskawa / Panasonic / SMC / HIWIN). Built for non-stop production.
🔄 Auto Job Changeover < 2 min — Import multiple orders from window software (Klaes, Logikal, FeneVision). Software auto-nests mixed sizes and switches jobs without operator intervention.
🎯 ±0.15 mm Accuracy — Linear guide + direct-drive servo. Every pane fits the frame perfectly. No rework, no callbacks.
🏷️ Auto Labeling — Prints and applies QR/barcode labels with order info, glass specs, and frame matching data. Enables full traceability and MES integration.
🪟 Low-E Ready — Optional defilm module processes coated glass without damaging the low-emissivity layer.
| 📦 95–98% Material Yield — Optima / Guiyou nesting maximizes every raw lite. Waste reduced 10–15% vs. manual layout.
🏗️ Modular Layout — 3-in-1 compact (load+cut+break) or separate modules for larger plants. Customizable to your shop floor.
| Automation level |
Fully automatic (loading → cutting → breaking → labeling)
|
|
Recommended models |
DS-CM2621-FA / 3725-FA / 4228-FA |
|
Max cutting size |
2600×2100 / 3700×2500 / 4200×2800 mm |
| Min cutting size |
200x200mm |
|
Glass thickness |
2–12 mm (standard window glass) |
|
Cutting accuracy |
±0.15 mm (2621/3725) · ±0.20 mm (4228) |
|
Cutting speed |
0–200 m/min |
|
Acceleration |
≥ 8 m/s² |
|
Loading cycle |
15–40 s/sheet (automatic vacuum arms) |
|
Labeling |
Auto print & apply, QR/barcode, customizable content |
|
Air pressure |
0.55–0.8 MPa |
|
Power supply |
10–18 kW, 380V/50Hz/3P (customizable) |
|
Control system |
CNC + PLC, 10" touch HMI |
|
Nesting software |
Optima / Guiyou, DXF/DWG import |
|
Table height |
900 ± 30 mm |
Safety Systems:
Emergency stop at every station
Light curtain on loading area
Vacuum-failure auto-alarm & auto-pause
Overload, overheat, and collision protection
CE certified safety circuit
Service & Support:
12-month warranty (extendable to 36 months)
On-site installation & operator training / remote video guidance
24/7 online support via WhatsApp / WeChat / Email
Free CAD shop floor layout drawing with every quote
FAQ
Q: How is this different from a semi-automatic cutting table?
A: Semi-auto requires manual loading, breaking assistance, and labeling. This fully automatic line handles everything — loading, cutting, breaking, and labeling — with one operator only monitoring. Labor is reduced by 60–70%.
Q: Can it run overnight unattended?
A: Yes. With automatic loading and labeling, the line can run continuous shifts. The operator only needs to replenish raw glass sheets and remove finished pallets.
Q: How long to train an operator?
A: Most operators are confident after 2–3 days of training. The touch-screen HMI is intuitive — no CNC programming background required.
Q: What's the typical ROI?
A: Most fabricators see payback within 12–18 months through labor savings (2–3 fewer workers per shift) and material savings (10–15% less scrap from optimized nesting).
Q: Can we integrate it with our existing window software?
A: Yes. We support DXF/DWG import and CSV/API integration with Klaes, Logikal, FeneVision, and most主流门窗软件. Send us your software name and we'll confirm compatibility
