Automatic​ 1800 Vertical Washing Drying Machine for Insulated and Tempered Glass

1800 Vertical Washing Drying Machine for Insulated and Tempered Glass

1. Product Overview

The 1800 Vertical Washing Drying Machine is a heavy-duty, high-efficiency industrial solution engineered specifically for the surface preparation of insulated glass (IGU) and tempered glass. Designed with a space-saving vertical structure, this machine delivers a continuous, automated process of washing, rinsing, and hot-air drying, ensuring a flawless, spot-free, and moisture-free surface before the critical stages of lamination, sealing, or tempering.

Built with a premium stainless steel frame, the machine is resistant to corrosion and wear, guaranteeing a long service life even in demanding 24/7 production environments. It is the ideal pretreatment equipment for modern glass processing factories aiming to boost productivity and maintain high-quality standards.

. Key Features & Advantages

Optimized for Insulated & Tempered Glass: Specifically calibrated to handle the unique requirements of IGU base sheets and tempered glass raw panels without causing micro-scratches or edge damage.

1800mm Processing Width: Accommodates standard architectural glass sizes, making it versatile for various construction and automotive glass projects.

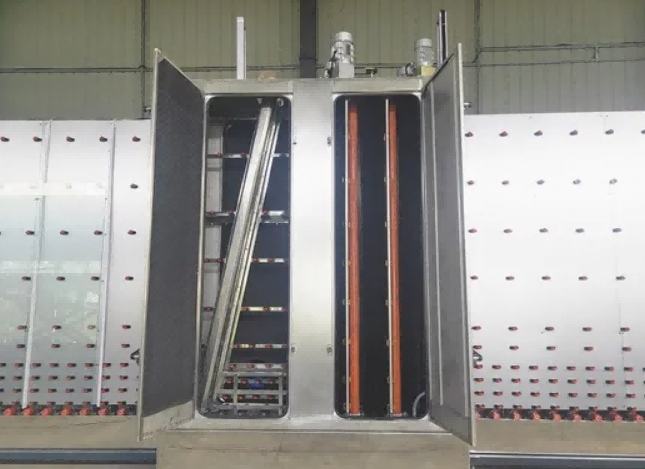

Advanced Multi-Stage Cleaning System: Features 4 pairs of high-quality, stainless steel brush rollers and a high-pressure spray system. A final deionized water rinse ensures zero water marks.

Efficient Hot-Air Drying: Utilizes a powerful, circulating hot-air system that guarantees complete dryness across the entire glass surface, preventing contamination in downstream processes.

Low-E Compatibility (Optional): Equipped with a specialized "Soft Wash" mode. Softer brushes and adjustable water pressure protect sensitive low-emissivity (Low-E) coatings from damage.

Intelligent PLC Control: A user-friendly touchscreen interface allows operators to easily adjust conveyor speed, temperature, and washing cycles to match different glass thicknesses (3mm - 25mm).

Seamless Line Integration: The vertical design allows for easy integration into fully automated insulating glass production lines or tempering furnace loading systems.

Control and Energy Use

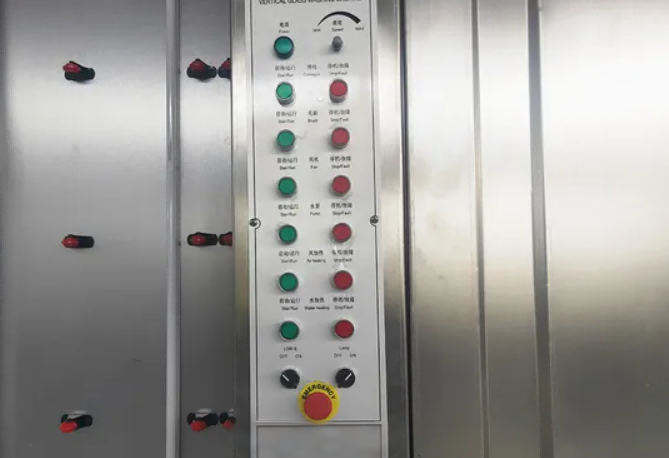

• PLC with HMI: A touchscreen interface provides access to washing speed, brush pressure, water temperature, air knife heater settings, and alarm logs. Operators can save parameter sets for different glass types and recall them when changing production batches.
• Variable frequency drive: The main conveyor motor is inverter-driven, with speed adjustable from 0 to 8 m/min. This allows the operator to match the feed rate to the required cleaning intensity and the downstream process speed.
• Installed power: Total power consumption is 15 kW, distributed across brush motors, water pumps, heating elements, and the air knife blower. Energy use is reduced in standby mode when no glass is detected on the conveyor.

Low-E and Coated Glass Handling

• Adjustable brush pressure: The brush height and contact pressure can be reduced for sensitive Low-E or coated glass surfaces. Soft-bristle brush sets are available as an option. This allows the machine to clean coated glass without removing or degrading the functional layer, provided the correct parameters are set.

Technical Specifications

Parameter	Specification
Model	1800 Vertical Washing & Drying Machine
Input Voltage	380V / 50HZ
Input Power	15 KW
Max. Glass Size	1800 x 2500 mm
Min. Glass Size	280 x 450 mm
Pane Glass Thickness	3 - 12 mm
Max. I.G. Unit Thickness	12 - 40 mm
Glass Cleaning Speed	0 - 8 m/min (Variable)
Overall Dimension	8000 x 2100 x 3000 mm (L x W x H)

Why Choose Us?

Shandong Lebulang Precision Machinery Co., Ltd., operating as Lebulang Machine, has manufactured glass and window processing equipment at its Jinan facility since 1996. The company handles R&D, machining, assembly, testing, and sales in-house, supplying equipment directly from the factory. The 1800 Vertical Washing Drying Machine for Insulated and Tempered Glass is built under this integrated structure, with CE and ISO 9001 certification. A one-year warranty applies to the machine structure, and remote technical support is provided for the lifetime of the equipment. Spare parts are stocked and can be dispatched with regular freight. Detailed operation manuals and video guidance are included with each delivery.

Why Choose This Machine?

Reliable Performance: Proven design used by glass processors worldwide

Easy Integration: Compact vertical layout fits seamlessly into new or existing production lines

Low Maintenance: All major components are easily accessible; spare parts readily available

Cost Effective: Reduced water and energy consumption lower daily operating expenses

Customizable Options: Available with various brush materials, heating methods, and control configurations
