1600mm High-Efficiency Fully Automatic Horizontal Insulated Glass Washing and Drying Machine
Achieve crystal-clear results with our 1600mm Horizontal Insulated Glass Washing and Drying Machine. From pre-wash to final drying, every stage is optimized for speed, precision, and reliability. Built with corrosion-resistant stainless steel and intelligent automation, it minimizes water spots, reduces manual handling, and keeps your IGU production line running at peak efficiency. Trusted by glass processors worldwide
The 1600mm Horizontal Insulated Glass Washing and Drying Machine is a critical component in modern insulating glass unit (IGU) production lines. Designed for continuous industrial operation, it processes flat glass panels up to 1600mm wide through a fully automated sequence of washing, rinsing, and drying stages. The result is a perfectly cleaned and completely dried glass surface, ready for immediate assembly into sealed IGUs.
This machine handles float glass, tempered glass, laminated glass, and Low-E coated glass with equal effectiveness, making it a versatile solution for architectural glass fabricators, window manufacturers, and facade contractors
Construction and Materials
Frame: Heavy-duty carbon steel with anti-corrosion paint coating
Washing Chamber: 304 stainless steel interior panels

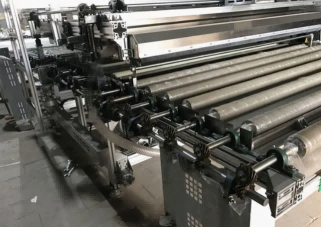

Rollers: Rubber-coated steel conveyor rollers with non-marking surface
Brushes: High-density nylon bristles with replaceable brush strips
Air Knives: Stainless steel nozzles with adjustable gap

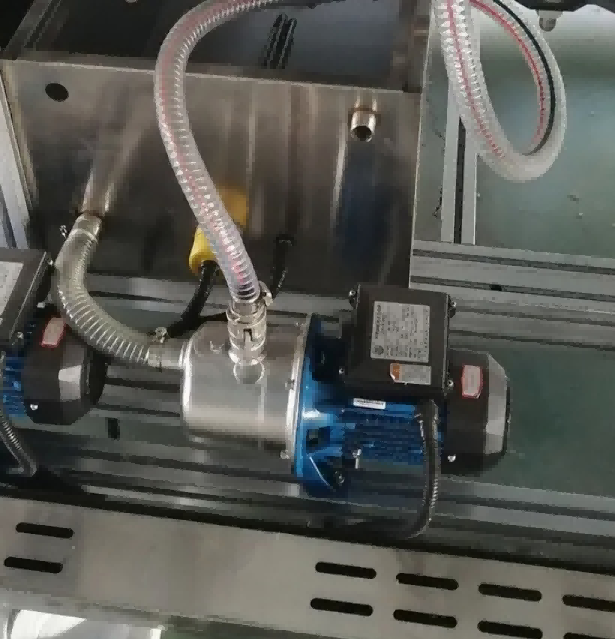

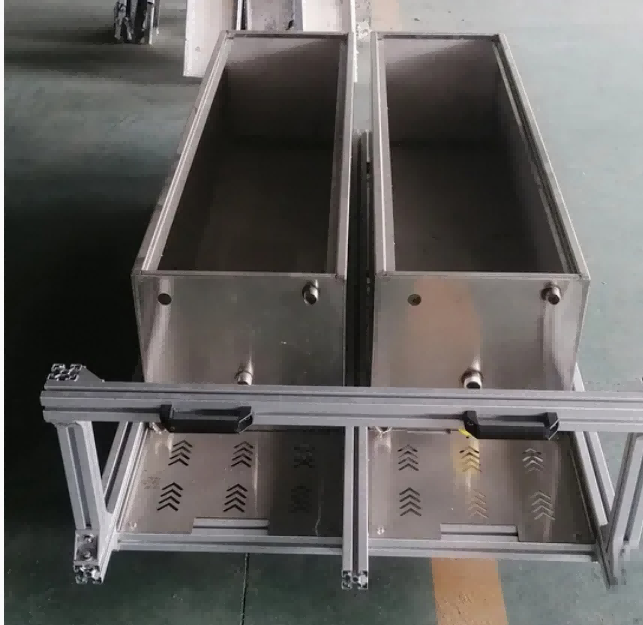

Water Tank: Stainless steel with built-in heating element and thermostat
Piping: PVC and stainless steel for corrosion resistance
All materials are selected for durability in wet, chemically active environments typical of glass washing operations.
Technical Specifications
| Parameter | Specification |
| Max. Glass Size | 1600 × 2000 mm |
| Min. Glass Size | 200 × 200 mm |
| Glass Thickness Range | 2 -- 20 mm |
| Washing Speed | 2 -- 12 m/min (frequency‑controlled) |
| Voltage | 380V / 220V / 415V · 50/60Hz (customizable) |
| Total Power | 9 kW |
| Machine Dimension (L×W×H) | 3800 × 2000 × 1100 mm |
| Weight | 800 kg |
| Brush Rollers | 4 sets (8 pieces) |
| Sponge Rollers | 3 sets (6 pieces) |
| Drying System | Circulating air + air knife |
| Cover & Bed Material | 304 Stainless Steel (rust‑proof) |
| Core Electrical Components | CHINT / DELIXI (pump, gearbox, motor) |
| Working Air Pressure | 0.6 -- 0.8 MPa |
| Water Pump & Tank | 1 water pump + 1 water tank |
Key Features
PLC Automatic Control — Intelligent touch-screen interface for easy operation, speed adjustment, and fault diagnosis.
Stainless Steel Washing Section — Corrosion-resistant construction ensures long service life and hygienic operation.
Soft Roller Brushing — High-quality nylon brushes gently remove contaminants without scratching glass surfaces, including delicate Low-E coatings.
Multi-Stage Cleaning — Pre-wash, main wash with detergent, fresh water rinse, and deionized water final rinse for zero water spots.
High-Efficiency Air Knife Drying — Adjustable air knives with powerful blowers deliver complete moisture removal in a single pass.
Variable Speed Drive — Frequency-controlled conveyor speed (2–10 m/min) adapts to different production requirements.
Safety Protection — Automatic glass thickness detection, overload protection, and emergency stop ensure operator safety.
Easy Maintenance — Quick-access panels, self-cleaning filters, and a user-friendly layout simplify routine servicing.
How It Works
Step 1: Loading and Conveyance
Glass panels enter the machine via motorized rubber-coated rollers. A variable frequency drive controls the conveyor speed from 2 to 10 meters per minute, allowing synchronization with upstream and downstream equipment.
Step 2: Pre-Wash Stage
High-pressure water spray loosens and removes loose particles, dust, and light surface debris before the glass enters the brush section.
Step 3: Main Wash with Brushes
Soft nylon roller brushes rotate against the glass surface while warm water mixed with a mild detergent is applied. The brush pressure is adjustable to accommodate different glass thicknesses and coating types. For Low-E glass, reduced pressure settings prevent coating damage.
Step 4: Fresh Water Rinse
Clean water rinses away any remaining detergent residue and suspended particles. A separate deionized water rinse stage is available as an optional upgrade for applications requiring zero mineral deposits.
Step 5: Air Knife Drying
High-pressure air knives positioned above and below the glass strip away all surface moisture. The blower speed and air temperature can be adjusted to match production speed and ambient conditions.
Step 6: Output to Next Station
Dry, clean glass exits the machine ready for inspection, spacer application, and pressing into finished IGUs.
Control System
The machine is equipped with a Siemens or Mitsubishi PLC controller paired with a color touch-screen HMI. Operators can:
Set and monitor conveyor speed
Adjust brush rotation speed and pressure
Control water temperature
Monitor water level and filter status
View real-time production counters
Access fault logs and diagnostic information
Switch between preset recipes for different glass types
Multiple language interfaces are available, including English, Chinese, Spanish, Arabic, and Russian.
Optional Upgrades
Deionized water rinse module for streak-free drying
Hot air drying system for increased throughput in cold climates
Ultrasonic pre-wash tank for heavily soiled glass
Automatic glass thickness measurement and adjustment
Remote monitoring and IoT connectivity
Extended conveyor sections for larger buffer zones
Custom voltage and frequency configurations
Customer Support Package
Every machine purchase includes:
12-month comprehensive warranty on all components
Spare parts starter kit (brushes, seals, filters, fuses)
Digital documentation package (manual, wiring diagram, parts list)
Remote commissioning assistance via video call
Lifetime technical support hotline and email
Annual maintenance service plan available
Optional on-site installation and training services can be quoted separately based on location and requirements.
Technical Data Sheet Download
A complete technical data sheet in PDF format is available upon request. The document includes detailed dimensional drawings, electrical schematics, pneumatic diagrams, and a full spare parts catalog.
Contact Information
For pricing, lead time, and customization inquiries, please contact our sales team with the following information:
Required glass sizes and thickness range
Expected daily production volume
Existing production line configuration
Preferred control system brand
Power supply specifications
Our engineers will prepare a tailored proposal within 48 hours.
