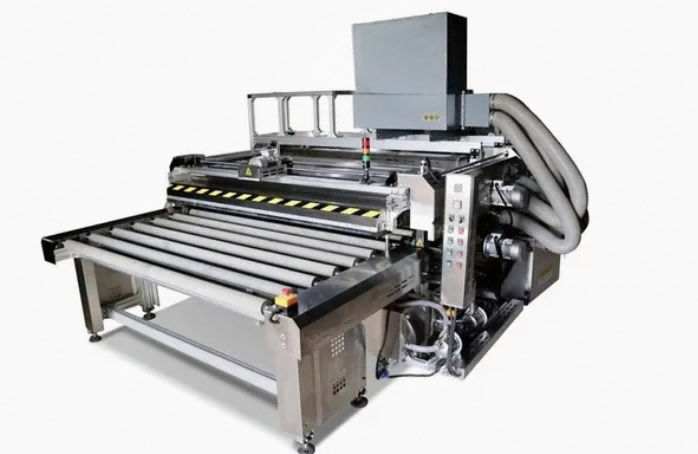

1600mm Fully Automatic Horizontal Insulated Glass Washing and Drying Machine

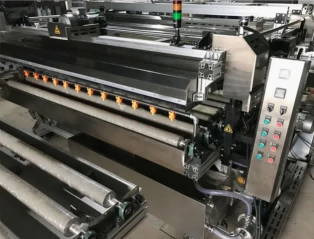

This 1600mm Horizontal Insulated Glass Washing and Drying Machine is engineered for high-efficiency cleaning of insulated glass units (IGUs) up to 1600mm in width. Featuring a fully automatic PLC control system, multi-stage washing with soft roller brushes, fresh water rinsing, and a high-power air knife drying system, it delivers spotless, moisture-free glass surfaces ready for sealing. The washing section is constructed from stainless steel for long-term corrosion resistance, making it suitable for processing float glass, tempered glass, and Low-E coated glass. An indispensable piece of equipment for double and triple glazing production lines.

Technical Specifications

Key Features

PLC Automatic Control — Intelligent touch-screen interface for easy operation, speed adjustment, and fault diagnosis.

Stainless Steel Washing Section — Corrosion-resistant construction ensures long service life and hygienic operation.

Soft Roller Brushing — High-quality nylon brushes gently remove contaminants without scratching glass surfaces, including delicate Low-E coatings.

Multi-Stage Cleaning — Pre-wash, main wash with detergent, fresh water rinse, and deionized water final rinse for zero water spots.

High-Efficiency Air Knife Drying — Adjustable air knives with powerful blowers deliver complete moisture removal in a single pass.

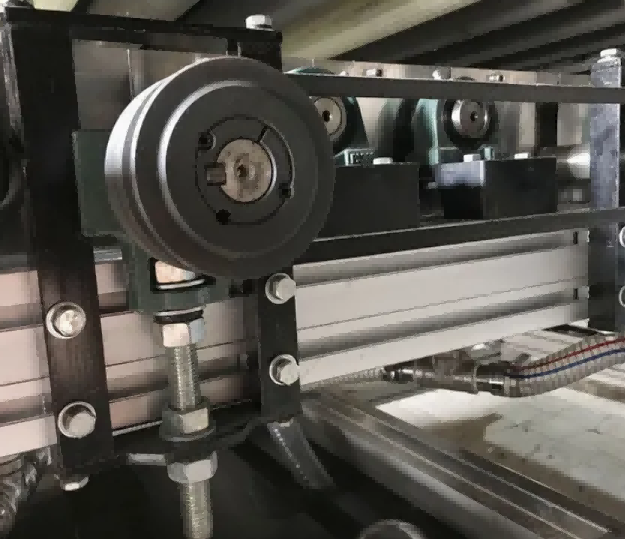

Variable Speed Drive — Frequency-controlled conveyor speed (2–10 m/min) adapts to different production requirements.

Safety Protection — Automatic glass thickness detection, overload protection, and emergency stop ensure operator safety.

Easy Maintenance — Quick-access panels, self-cleaning filters, and a user-friendly layout simplify routine servicing.



Why Choose This Machine

Consistent Cleaning Quality — Every glass panel exits the machine perfectly clean and dry, eliminating sealing failures caused by surface contamination.

Built to Last — Heavy-duty frame and stainless steel components withstand continuous industrial operation in demanding production environments.

Operator Friendly — Intuitive controls, clear status indicators, and automated settings reduce training time and operator dependency.

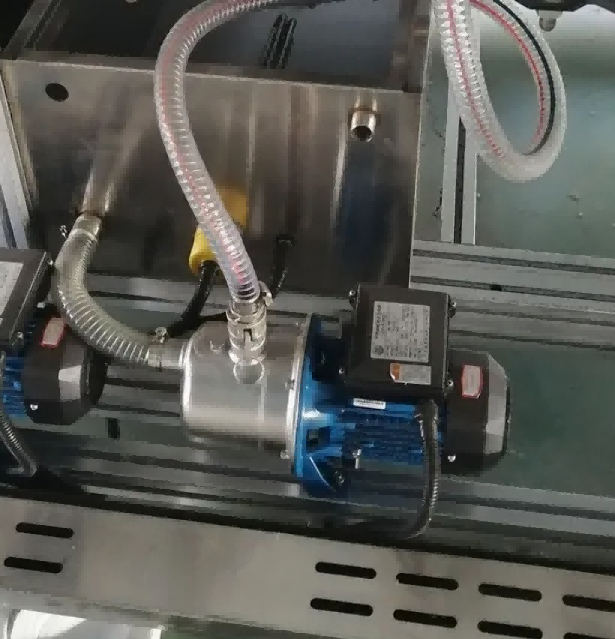

Low Operating Cost — Recirculating water system minimizes consumption, while energy-efficient motors and blowers reduce power usage.

Proven Reliability — Trusted by glass processors across Europe, North America, the Middle East, and Southeast Asia.

Frequently Asked Questions

Q: Can this machine handle Low-E coated glass?

A: Yes. The soft nylon brushes and adjustable pressure settings are specifically designed to clean Low-E and other sensitive coated glass without damaging the coating.

Q: What is the daily maintenance requirement?

A: Daily tasks include checking water levels, cleaning filters, and inspecting brush condition. Full maintenance schedule is provided in the operation manual.

Q: Can the machine be integrated into an existing production line?

A: Absolutely. The machine is designed for seamless integration with vertical sealing machines, pressing machines, and automated handling systems.

Q: What after-sales support do you provide?

A: We offer 12-month warranty, lifetime technical support, spare parts supply, and remote troubleshooting. On-site service can be arranged upon request.
