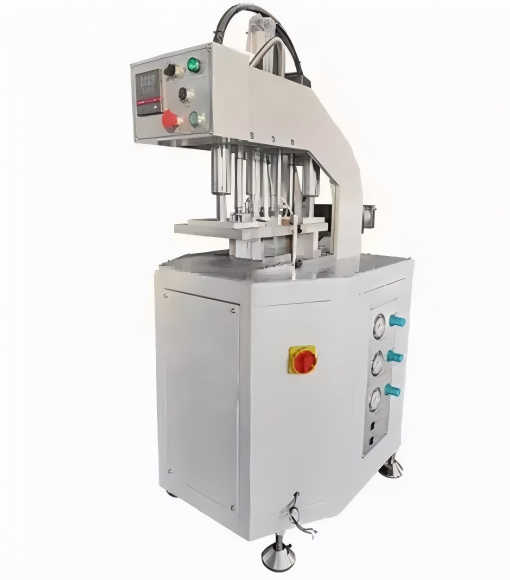

High-Precision CNC Arbitrary Angle Welding Machine for PVC

The Arbitrary Angle Welding Machine for PVC / UPVC Windows is a specialized single-head corner welding solution engineered for non-90° and arch window fabrication. It supports continuous angle adjustment from 30° to 180°, enabling precise welding of special-shaped vinyl window and door frames including arc windows, bay windows, triangular frames, and custom-angled structures.

Equipped with a PLC control system, pneumatic clamping mechanism, and an intuitive touch screen interface, the machine delivers ±0.2mm welding accuracy with stable, repeatable results. The heating, pressing, and cooling cycles are fully programmable to match different profile formulations. Optional seamless welding function is available for colored and co-extruded profiles, producing clean corners without secondary cleaning.

This machine is the ideal solution for UPVC door and window manufacturers who need to expand beyond standard right-angle production and handle a wider variety of custom frame geometries.

Company Advantages

Expertise & Innovation: With years of experience in precision machinery, Lebulang specializes in developing solutions that balance efficiency, accuracy, and affordability.

Global Compliance & Support: Products meet stringent international safety standards (CE, ISO) and include export-ready packaging for seamless global deployment.

Customer-Centric Approach: Prioritizes user needs, offering technical documentation, installation guidance, and post-sale support to ensure smooth integration.

Sustainability Focus: Designs emphasize energy efficiency and long-term reliability, reducing operational costs and environmental impact.

Core Product Features

•


  1. 30°–180° Continuous Angle Adjustment

  The welding head rotates smoothly across the full range from 30 to 180 degrees, covering every angle needed for arch windows, angled corners, and irregular frame shapes. Angle setting is digital and precise.

  2. Single-Head Flexible Operation

  One welding head handles all angles, making it versatile for both small-batch custom orders and mixed production runs. Simple to set up, quick to switch between angles.

  3. PLC + Touch Screen Control

  The HMI interface allows operators to input angle values, set heating time, pressing time, and cooling time with a few taps. Parameter presets can be saved for different profile types, reducing setup time between jobs.

  4. Pneumatic Clamping System

  High-quality pneumatic cylinders provide consistent, adjustable clamping force. The system maintains firm pressure throughout the welding cycle, ensuring joint strength and dimensional accuracy.

  5. Seamless Welding Option

  When equipped with the seamless module, the machine performs integrated corner cleaning after welding. Both upper and lower surfaces are smooth with zero visible seam—especially important for colored and laminated profiles where weld marks are highly visible.

  6. PTFE-Coated Heating Plate

  The anti-stick heating surface ensures clean melt lines and prevents profile material from adhering to the plate. Temperature is digitally controlled and monitored in real time.

  7. Colored Profile Compatible

  Designed to handle co-extruded, laminated, and foil-wrapped UPVC profiles. The welding parameters can be fine-tuned to prevent discoloration or deformation on sensitive surface layers.

  8. Safety Protection

  Emergency stop button, safety guards on moving parts, and air pressure monitoring ensure safe operation. The machine will not cycle if clamping pressure is insufficient.

  9. Durable Construction

  Built with a heavy-duty steel frame and precision-machined welding tools. Key components are sourced from reputable brands for long service life and minimal downtime.

  10. Easy Maintenance

  Modular internal layout makes routine inspection and part replacement straightforward. Standard wearing parts (heating plates, seals, blades) are readily available and easy to swap.




Product Details

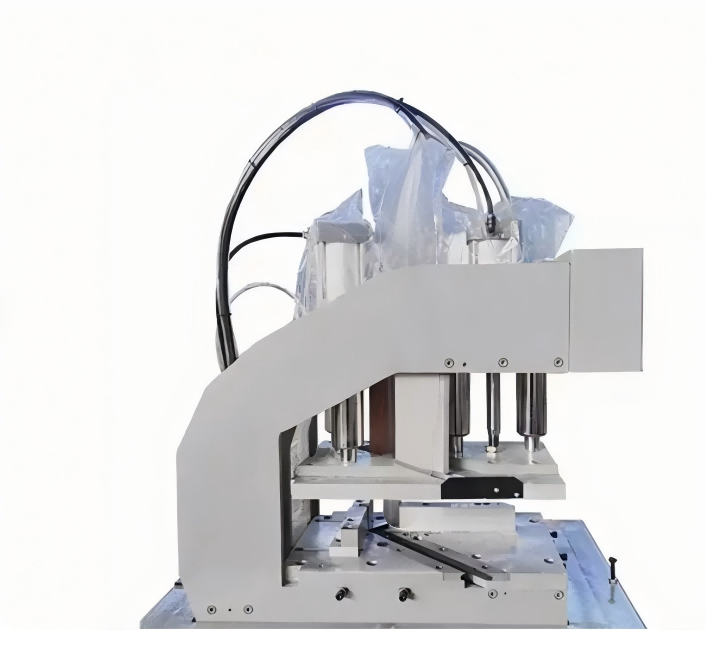

This Arbitrary Angle Welding Machine for PVC Windows adopts optimized mechanical positioning and pressing structure, specially tailored for special-shaped PVC window welding scenarios different from conventional right-angle welding equipment. The adjustable turntable and positioning backing plate allow free angle switching and precise locking, ensuring high fitting accuracy of welding joints. The left and right pressing structures work stably to ensure uniform stress on profiles during welding, effectively improving the flatness and firmness of welding corners. With a rated voltage of 380V and low power design, it adapts to most ordinary factory power supply environments without special circuit transformation. The whole machine has a compact overall size of 960*900*1460mm, occupying little workshop space. It supports ordinary packaging and export wooden box packaging, convenient for global transportation and trade export.
