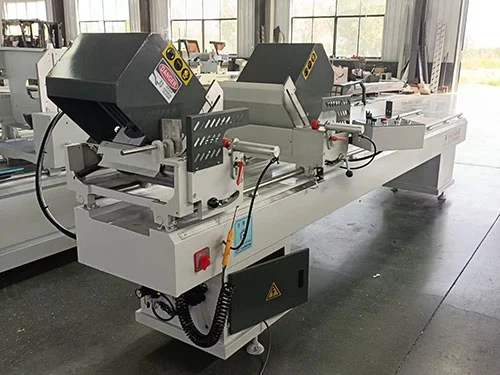

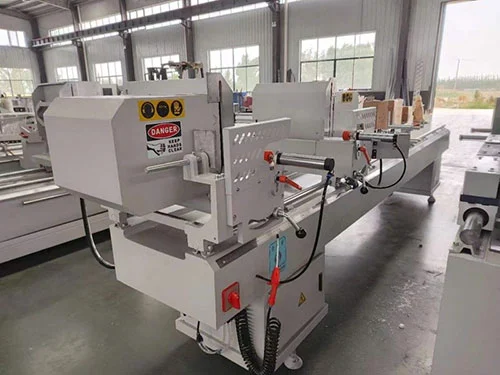

400mm Double Head Cutting Saw PVC Window Profile Processing Equipment
This 400mm Double Head Cutting Saw PVC Window Profile Processing Equipment is a professional precision processing equipment dedicated to PVC, UPVC and vinyl window and door profile fabrication. Supported by 2.2KW stable power and dual-head independent/combined working modes, it supports 45° to 90° angle cutting with high accuracy and safety. Adopting forward-backward cutting design and CHINT PLC programmable control system, the machine features simple operation, stable operation and high production efficiency. It can stably output 25-35 finished windows per 8-hour shift, and supports customized power supply adaptation, complying with CE and ISO certification standards for standard industrial window and door processing.
This double-head cutting saw is built for PVC, UPVC, and vinyl window and door profiles, with light aluminum cutting also possible. The two saw heads are arranged on a common bed and can pivot between 45° and 90°, operating in three selectable modes: independent, simultaneous, or combined. A CHINT PLC manages the control sequence, and the blade feed follows a backward-forward cutting cycle designed to leave ends clean enough that secondary trimming is usually unnecessary.
Profile height capacity spans from 20 to 110 mm, covering most standard window and door extrusions. The drivetrain combines a 2.2 kW motor with a gearbox and bearing set chosen for steady, low-failure-rate operation during continuous shifts. In a typical eight-hour shift, the machine handles enough cutting for roughly 25 to 35 standard window frames, depending on profile geometry. Power supply can be configured to match the local voltage and frequency at the time of order, and the standard build accepts both 380V and 220V three-phase inputs.
Each machine undergoes a factory-run test before shipment, with a machinery test report and an outgoing-inspection video provided as documentation. The welded frame measures 4000 × 900 × 1500 mm and weighs approximately 600 kg. Lebulang Machine, which has manufactured window and door processing equipment at its China factory for close to 30 years, produces this saw. The unit holds CE and ISO certification, and custom OEM specifications are accepted. Supply is on a factory-direct basis, the design is laid out for straightforward daily upkeep, and remote installation guidance is included at no extra charge.
Core Features
Professional Material Adaptation:
Ideal for PVC, UPVC, and vinyl window profiles, plus light aluminum cutting. For high-volume mixed processing, our 400mm Double Head Cutting Saw PVC Window Profile Processing Equipment is recommended.
Wide Processing Range:
Accommodates profile heights of 20--110mm, fully compatible with most standard door and window profiles.
Stable Core Performance:
High-quality bearings, gearbox, and motor ensure stable operation and low failure rate for continuous production.
Reliable Quality Assurance:
Each Equipment passes strict factory tests, with full reports and outgoing inspection videos provided.
Global Power Adaptability:
Customizable power configurations to meet local electrical standards worldwide.
High-Precision Efficient Processing:
Produces burr-free cuts, eliminating secondary trimming. This 400mm Double Head Cutting Saw PVC Window Profile Processing Equipment significantly enhances both production quality and efficiency.
Technical Parameters
| Item | Specification |
| Applicable Material | PVC, Stainless Steel, Carbon Steel, UPVC, Vinyl Plastic Profile |
| Working Voltage | 380V/220V 50Hz (Customizable) |
| Rated Power | 2.2KW |
| Saw Blade Swing Angle | 45°~90° |
| Welding Profile Height | 20-110mm |
| Core Components | Gearbox, Bearing, Motor, CHINT PLC |
| Overall Dimension | 4000*900*1500mm |
| Machine Weight | 600kg |
| Certification | CE, ISO |
| Warranty Period | 1 Year |
| Inspection Documents | Video Outgoing-inspection, Machinery Test Report Provided |
| After-sales Service | Professional After-sales Service Provided |

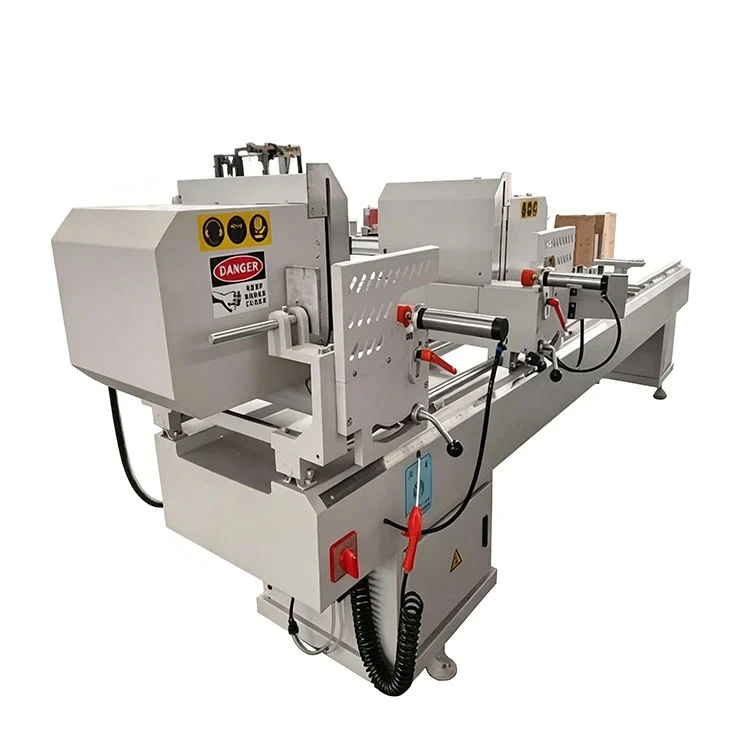

Product Details
The 400mm Double Head Cutting Saw PVC Window Profile Processing Equipment adopts premium dual-head structure and backward-forward safe cutting technology, supporting flexible 45°-90° angle adjustment and three working modes of independent, simultaneous and combined operation. Fitted with CHINT PLC intelligent control system, it delivers stable and accurate cutting results with simple operation. Capable of producing 25--35 standard windows per 8-hour shift, this machine features strong compatibility and low failure rate, perfectly satisfying batch and standardized processing demands of various PVC and UPVC door and window profiles.
FAQ
Q1: What types of profiles can this four-head welding machine process?
A: It is fully applicable to ordinary UPVC/PVC profiles, co-extruded colored profiles, and film-coated profiles. It can effectively avoid film tearing and foaming, ensuring flawless and seamless welding for high-end colored window frames.
Q2: What welding angles can the machine achieve?
A: This machine supports multi-angle welding ranging from 30° to 180°. The machine heads can work separately or in combination, realizing standard 90° right-angle welding and special irregular angle welding for customized window and door frames.
Q3: Is the weld seam adjustable? What is the adjustment range?
A: Yes. Equipped with profile clamps with cutters, the welding seam is precisely adjustable from 0.2mm to 2mm, meeting both standard and colored profile processing requirements, with clean and flat welding corners.
Q4: Do you support customization and OEM service?
A: Yes. We support OEM/ODM, custom machine color, special fixtures, film-coating anti-tearing functions and special size parameters to match customers' unique profile production needs.
