High-Precision​ PVC UPVC Windows High Speed Copy Routing Machine

Key Features & Advantages

1. High-Speed Precision Routing

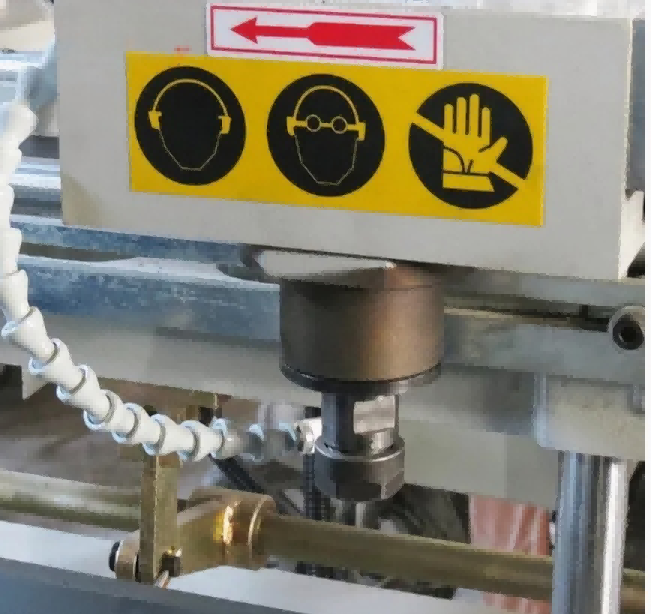

Equipped with a high-performance spindle motor, the machine delivers rapid cutting speeds while maintaining superior surface finish. The template-based copy routing mechanism allows operators to replicate complex profiles effortlessly, ensuring every cut matches the master template with minimal deviation.

2. Robust Pneumatic Clamping System

Features a pneumatic profile clamping system that secures workpieces firmly in place, minimizing vibration during operation. This not only guarantees clean, precise cuts but also reduces operator fatigue and improves overall safety.

3. Heavy-Duty Steel Frame Construction

Built with a reinforced steel frame, the machine is designed for long-term durability and stability. The rigid structure absorbs operational vibration, ensuring consistent accuracy even under continuous, high-volume production demands.

4. User-Friendly Operation

Intuitive controls and a straightforward template setup process mean minimal training is required. Operators can switch between different profile designs quickly, significantly reducing downtime and increasing daily output.

5. Versatile Application

Compatible with a wide range of PVC and UPVC profile systems. Ideal for processing lock holes, hinge recesses, drainage slots, and decorative contours on window and door frames.



Product Details

The PVC UPVC Windows High Speed Copy Routing Machine is specially developed for precision copy routing and grooving of plastic door and window profiles. Adopting advanced variable-speed spindle technology, it can freely adjust rotating speed according to processing technology, effectively avoiding profile cracking and edge chipping during high-speed milling. The equipment features a scientific structural design with reasonable vertical stroke and ultra-wide processing range, fully meeting the grooving and routing requirements of various complex UPVC and PVC window profiles. Matched with standard pneumatic control system, it realizes stable feeding and precise positioning, greatly improving processing consistency and finished product qualification rate. Compact overall structure (2180×870×1400mm) and 230kg lightweight design save workshop space and facilitate daily equipment movement and maintenance, making it ideal supporting equipment for standardized UPVC door and window production lines.

Product Technical Parameters

FAQ

Q1: What is the main application of this machine?

A1: This high speed copy routing machine is mainly used for grooving, copy routing and precision shaping of PVC and UPVC window and door profiles, suitable for standardized plastic window processing.

Q2: Is the spindle speed adjustable?

A2: Yes. It supports stepless speed adjustment from 0 to 12000r/min, which can be adjusted freely according to cutter size and processing requirements.

Q3: Does the machine support custom voltage?

A3: Absolutely. The working voltage can be customized according to customers' local power supply standards to adapt to different regional working environments.

Q4: What cutters are compatible with the machine?

A4: It is applicable to milling cutters with a diameter of Ø5mm to Ø8mm, meeting daily precision routing and grooving work for UPVC profiles.

Q5: What air pressure is required for normal operation?

A5: The standard working air pressure is 0.5--0.8Mpa with an air consumption of 30L/min, ensuring stable and efficient pneumatic operation.
