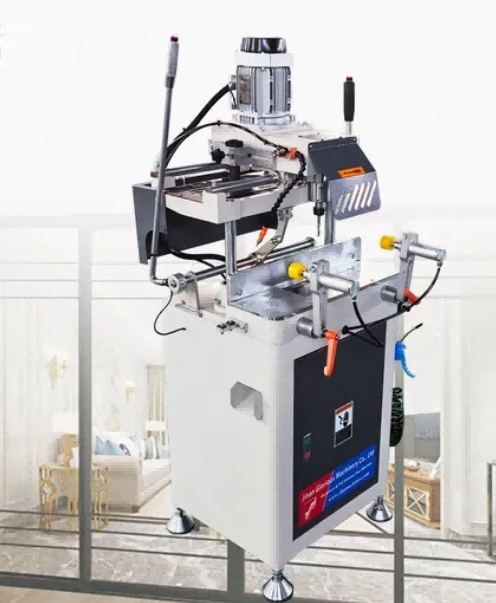

Heavy-Duty​ PVC UPVC Windows High Speed Copy Routing Machine

Key Features & Advantages

1. High-Speed Precision Routing

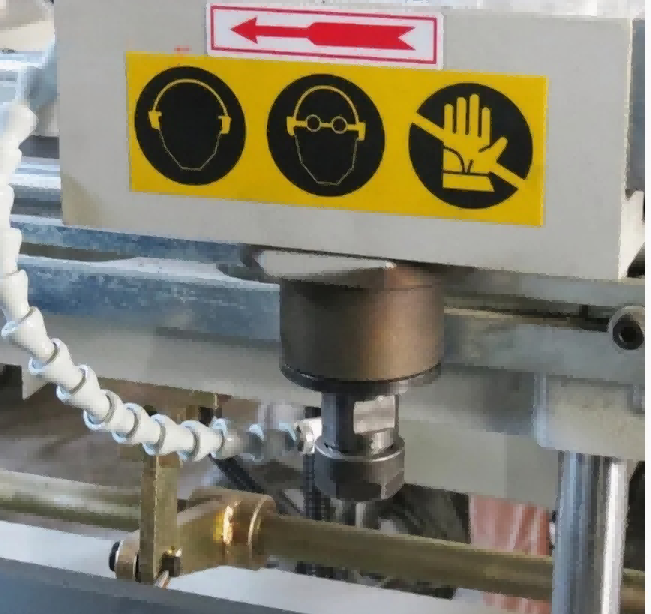

Equipped with a high-performance spindle motor, the machine delivers rapid cutting speeds while maintaining superior surface finish. The template-based copy routing mechanism allows operators to replicate complex profiles effortlessly, ensuring every cut matches the master template with minimal deviation.

2. Robust Pneumatic Clamping System

Features a pneumatic profile clamping system that secures workpieces firmly in place, minimizing vibration during operation. This not only guarantees clean, precise cuts but also reduces operator fatigue and improves overall safety.

3. Heavy-Duty Steel Frame Construction

Built with a reinforced steel frame, the machine is designed for long-term durability and stability. The rigid structure absorbs operational vibration, ensuring consistent accuracy even under continuous, high-volume production demands.

4. User-Friendly Operation

Intuitive controls and a straightforward template setup process mean minimal training is required. Operators can switch between different profile designs quickly, significantly reducing downtime and increasing daily output.

5. Versatile Application

Compatible with a wide range of PVC and UPVC profile systems. Ideal for processing lock holes, hinge recesses, drainage slots, and decorative contours on window and door frames.



Product Details

The PVC UPVC Windows High Speed Copy Routing Machine is specially developed for precision copy routing and grooving of plastic door and window profiles. Adopting advanced variable-speed spindle technology, it can freely adjust rotating speed according to processing technology, effectively avoiding profile cracking and edge chipping during high-speed milling. The equipment features a scientific structural design with reasonable vertical stroke and ultra-wide processing range, fully meeting the grooving and routing requirements of various complex UPVC and PVC window profiles. Matched with standard pneumatic control system, it realizes stable feeding and precise positioning, greatly improving processing consistency and finished product qualification rate. Compact overall structure (2180×870×1400mm) and 230kg lightweight design save workshop space and facilitate daily equipment movement and maintenance, making it ideal supporting equipment for standardized UPVC door and window production lines.

Product Technical Parameters

Application Scenarios

Lock Hole Milling: Precision routing of multi-point lock recesses on casement windows.

Hinge Routing: Accurate hinge pocket cutting for smooth door and window operation.

Drainage Slots: Clean, consistent water drainage slot cutting on window frames.

Custom Profiles: Template-based replication of decorative or non-standard profile shapes.

Why Choose Our Machine?

Factory-Direct Pricing: Competitive pricing with no middleman markup.

Quality Assurance: Every machine undergoes rigorous testing before shipment.

Global Support: Technical assistance and spare parts available worldwide.

Customization Options: OEM/ODM services available to meet specific production needs.

FAQ

Q: Is this machine suitable for aluminum profiles?

A: This model is specifically designed for PVC and UPVC. For aluminum processing, we recommend our dedicated aluminum copy routing series.

Q: Can I use my own templates?

A: Yes, the machine supports both standard templates and custom-made templates provided by the customer.

Q: What is the minimum operator skill level required?

A: Basic training is sufficient. The machine is designed for ease of use with minimal technical expertise.

Q: Do you provide installation support?

A: Yes, we provide operation manuals, instructional videos, and remote technical support. On-site installation is available upon request.
