Heavy-Duty Precision Glazing Bead Cutting Machine for UPVC Windows
The UPVC Glazing Bead Cutting Machine is a specialized industrial-grade tool designed for cutting PVC window glazing beads. It utilizes a dual-head cutting mechanism (optional) and a high-torque motor to achieve precise 45° mitre joints. The machine is equipped with a pneumatic clamping device to secure profiles during operation, ensuring safety and accuracy. It is compatible with various UPVC profile sizes, making it a versatile solution for door and window manufacturers.
Shandong Lebulang Precision Machinery Co., Ltd., a trusted global supplier dedicated to PVC/UPVC window & door processing equipment, introduces the cutting-edge Glazing Bead Cutting Saw engineered for exceptional efficiency. This innovative machine features a dual 0.75kw motor system with twin saw blades, enabling simultaneous cutting of two glazing bead profiles to double productivity. Leveraging our years of industry expertise, the machine ensures precise 45° angled cuts and flawless chamfers through advanced positioning technology, aligning with diverse window fabrication demands and embodying Lebulang’s commitment to technological advancement and customer-centric solutions.
This heavy-duty UPVC Window Glazing Bead Cutting Saw is engineered for precision and efficiency in modern PVC window and door fabrication. Designed to deliver flawless 45° mitre cuts, it ensures seamless corner joints and a perfect fit for UPVC glazing beads. Equipped with a robust pneumatic clamping system and a high-speed carbide-tipped blade, this machine minimizes vibration while maximizing cutting accuracy. It is the ideal solution for window manufacturers looking to boost production speed and maintain superior quality in PVC window making.
Key Features
Precision 45° Mitre Cutting
Achieve clean, gap-free corners with ±0.1mm accuracy. This UPVC glazing bead cutting machine is optimized for perfect joints in window assembly lines.

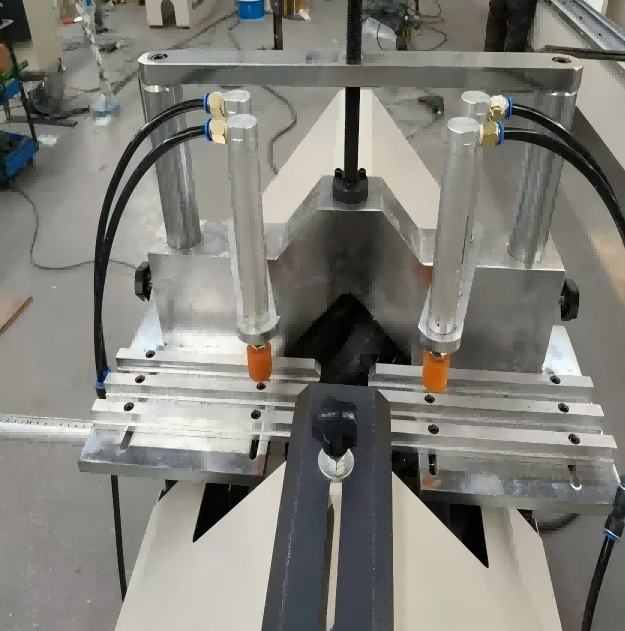

Stable Pneumatic Clamping System
The integrated pneumatic clamping system holds the UPVC profile firmly in place, preventing shifting during cutting and ensuring operator safety.
High-Speed Carbide Tipped Saw Blade
Fitted with an industrial-grade blade, the saw delivers smooth, burr-free surfaces, reducing the need for secondary finishing on PVC window beads.
Double-Head Cutting (Optional)
Increase productivity with the optional double-head design, allowing simultaneous cutting of both ends of the glazing bead.
Robust Industrial Structure
Built with a heavy-duty steel frame and anti-corrosion coating, this glazing bead mitre saw is designed for long-term use in demanding workshop environments.

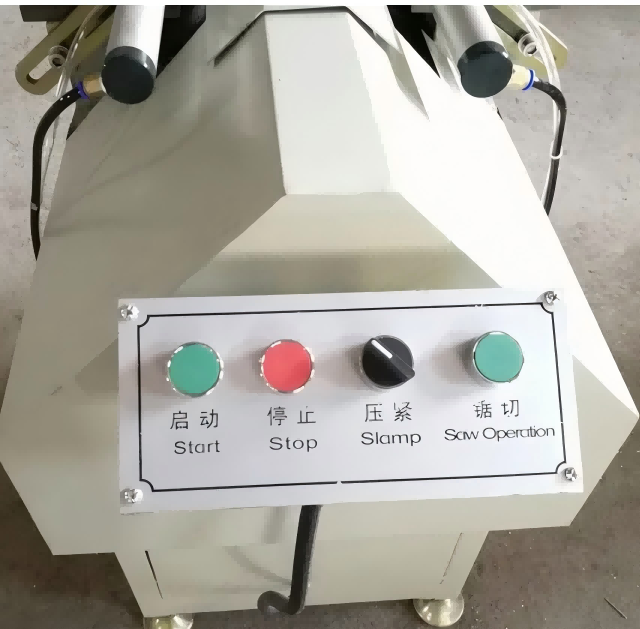

User-Friendly Operation
Simple control panel with button or foot pedal operation reduces operator fatigue and shortens the learning curve.
Safety First Design
Equipped with transparent safety guards and an emergency stop switch to ensure a secure working environment.
Technical Specifications
| Item | Specification |
| Power Supply | 380V, 50-60Hz, 3Ph |
| Input Power | 2*0.75kw |
| Spindle Rotary Speed | 2800r/min |
| Working Air Pressure | 0.5~0.8Mpa |
| Air Consumption | 20L/min |
| Cutting Depth | 29mm |
| Cutting Width | 120mm |
| Cutting Range | 320~1800mm |
| Saw Blade Diameter | Ø210mm |
| Milling Cutting Diameter | Ø135mm |
| Overall Dimension(L*W*H) | 1300*700*1350mm |
| Applicable Materials | UPVC, PVC Plastic Glazing Bead |
| Core Structure | 2 sets of motor + blade + milling cutter, vertical clamping device |
| Processing Capacity | 2 pcs profiles cutting at one time |
Machine Details
This professional Glazing Bead Cutting Saw UPVC Window Glazing Bead Cutting Machine is dedicated to UPVC window glazing bead processing, featuring dual saw blades to finish cutting and chamfering in one go. It performs 45° cutting and angle milling for glass beads, and can process two profiles simultaneously for higher productivity.
Built with horizontal structure, the equipment runs steadily and allows easy profile clamping with simple operation. It comes with adjustable positioning plate, fine-tuning device and pressure strip gaskets, ensuring precise assembly fit and no frequent part replacement during profile switching.
Application）
This UPVC glazing bead cutting machine is widely used in:
UPVC / PVC window and door manufacturing
Window profile cutting workshops
Glazing bead corners fabrication for double or triple glazed units
Window assembly line equipment setups
OEM and ODM PVC window making machine factories
Why Choose Us）
🏭 Professional Manufacturer
Over 10 years of experience in window machine manufacturing.
🔧 Strict Quality Control
Every machine is tested before delivery to ensure perfect performance.
🌍 Global Export Experience
Exported to Europe, Southeast Asia, Middle East, and South America.
🛠 Customization Available
Voltage, blade size, cutting length, and color can be customized.
🚚 Fast Delivery & After-Sales Support
Spare parts supply, video technical support, and online guidance.
FAQ
: Is this machine suitable for aluminum glazing beads?
A: This specific model is designed for UPVC and PVC profiles. For aluminum cutting, we recommend our aluminum cutting saw series.
Q2: Can the cutting angle be adjusted?
A: The standard UPVC window glazing bead cutting saw is fixed at 45° for optimal corner joints. Adjustable-angle models are available upon request.
Q3: Do you provide installation and training?
A: Yes, we provide detailed operation manuals, instructional videos, and online guidance. On-site installation is available for bulk orders.
Q4: What is the lead time?
A: Standard machines are typically ready within 7–15 working days. Customized glazing bead cutting equipment may require 15–25 working days.
