Automatic Argon Gas Filling Machine for Insulating Glass Units

Product Summary

The Automatic Argon Gas Filling Machine for Insulating Glass Units (IGU) is a specialized gas charging solution designed to enhance the thermal insulation and acoustic performance of double and triple glazing. It delivers high-purity argon gas at 90%+ concentration into sealed IG units through a multi-channel filling system, capable of processing 4 to 8 units simultaneously.

Equipped with a PLC control system and real-time concentration monitoring, the machine automatically regulates gas flow, filling time, and pressure to ensure every unit meets energy efficiency standards with minimal gas waste. The system starts and stops filling automatically when the preset concentration is reached, preventing over-filling or under-filling. An integrated low-gas alarm alerts operators before the argon supply runs out, avoiding production interruptions.

This machine is the ideal solution for IGU manufacturers who need to improve product energy ratings, reduce gas consumption, and maintain consistent filling quality across high-volume production runs. It can be used as a standalone workstation or integrated into an online insulating glass production line.

Key Features

1. Multi-Channel Simultaneous Filling

The machine supports 4, 6, or 8 filling heads working in parallel, allowing multiple IG units to be charged at the same time. This significantly increases throughput compared to single-channel fillers. Head count is customizable based on production requirements.

2. Real-Time Concentration Monitoring

Each filling channel is equipped with a gas concentration sensor that continuously measures argon purity during the filling process. The system displays real-time concentration on the HMI and automatically stops filling once the target (typically 90% or higher) is reached.

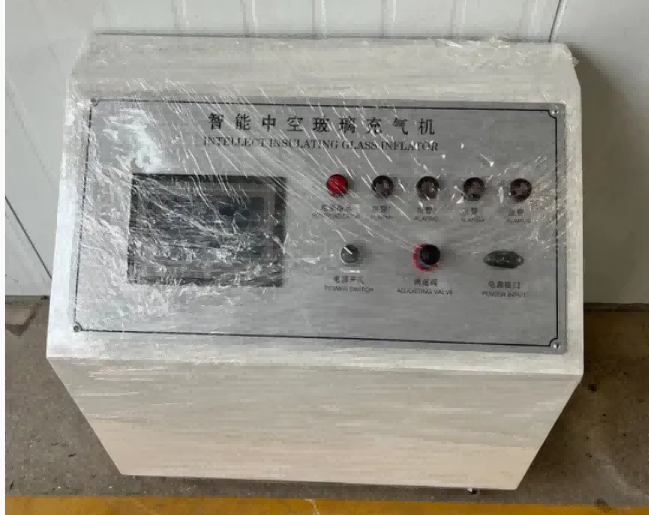

3. PLC + Touch Screen Control

The intuitive HMI interface allows operators to set filling time, gas pressure, target concentration, and alarm thresholds. Parameter presets can be saved for different IG unit sizes and cavity thicknesses, reducing setup time between batches.

4. Automatic Start/Stop Function

Filling begins automatically when the gas nozzle is inserted into the spacer frame valve and stops automatically when the preset concentration is achieved. This eliminates manual timing errors and ensures uniform results across all units.

5. Gas Pressure Regulation

Built-in pressure regulators and flow meters maintain stable gas delivery throughout the filling cycle. The system compensates for pressure fluctuations in the supply line, ensuring consistent fill quality from the first unit to the last.

6. Low Gas Supply Alarm

When the argon cylinder pressure drops below the set threshold, the machine triggers an audible and visual alarm. This gives operators time to replace the cylinder without interrupting production or producing under-filled units.

7. Compatible with Double and Triple Glazing

The filling parameters can be adjusted for different cavity configurations—single cavity (double glazing) or dual cavity (triple glazing). The machine handles spacer thicknesses from 6mm to 27mm and IG unit thicknesses from 12mm to 60mm.

8. Optional Krypton Gas Filling

In addition to argon, the machine can be configured for krypton gas filling, which provides even higher thermal insulation for premium IG units. The system uses the same sensors and controls, with adjusted flow parameters.

9. Portable Nozzle Design

The filling nozzles are lightweight and ergonomically positioned for easy insertion into the spacer frame valve. Quick-connect fittings allow nozzles to be replaced or repositioned without tools.

10. Easy Maintenance

Modular internal layout with clearly labeled components. Gas sensors are calibrated annually; regulators and flow meters require minimal servicing. Spare nozzles, seals, and sensors are standard and readily available.



Product Details

• Automatic stop and alarm reminder for unattended operation cycles.
• 4 insulating glass units can be filled simultaneously through independent ports.
• Separately adjustable argon concentration and fill time for different product specifications.
• Multi-language operating system, selectable on the touchscreen.
• Precision pressure gauge and regulating valve prevent overpressure on glass panes.
• Sealing nozzles designed to minimize argon escape during the fill process.
• High-sensitivity touch screen provides stable control response.

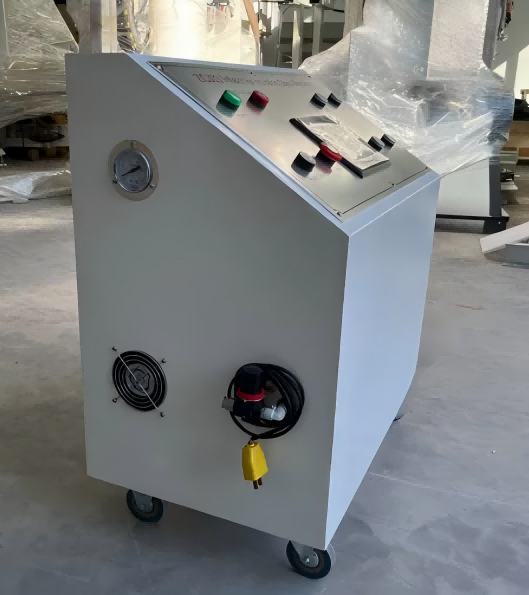

• Lightweight construction allows the unit to be moved and repositioned as needed.
• Post-fill inspection can be carried out to verify argon concentration levels.
• One-key start for standard cycles; no complex programming required.
• Status indicator lights and high-precision components for real-time operational feedback.

Working Principle

The Argon Gas Filling Machine for Insulating Glass Units uses a pressure-differential filling method. High-purity argon from an external cylinder is fed through the machine’s internal regulator and directed into the sealed cavity of the insulating glass unit via dedicated nozzles. Built-in sensors monitor cavity pressure and gas flow, while the PLC controls the fill duration and stops the cycle when the target argon concentration is achieved. The incoming argon displaces the air originally inside the cavity, raising the unit’s thermal and acoustic insulation performance and reducing the risk of internal fogging over time.
