Argon Gas Filling Machine for Insulating Glass Units

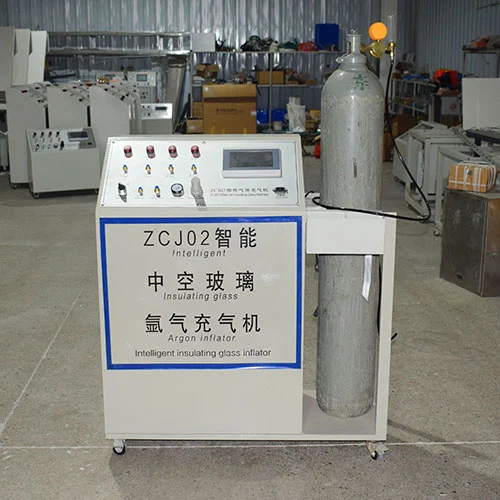

• Multi-channel simultaneous filling: The Argon Gas Filling Machine for Insulating Glass Units is configured with four independent filling ports, enabling up to four insulating glass units to be filled in a single cycle without cross-contamination.
• Adjustable process parameters: Argon concentration target and filling duration are set through the control interface. The machine stops automatically when the preset values are reached, reducing variability between units.
• Pressure monitoring and protection: Built-in sensors track cavity pressure during fill. If the pressure exceeds a defined threshold, an alarm triggers and the system shuts down to prevent glass breakage.
• Leak-minimizing nozzles: Dedicated sealing nozzles reduce argon waste at the injection point. Filling quality can be verified after the cycle to meet specified concentration requirements.
• Multi-language touchscreen operation: A one-touch control panel with language selection allows operators to start, monitor, and adjust cycles without deep technical training.
• Status indicators and control components: Real-time indicator lights show machine state, while the electrical and pneumatic components are selected for stable long-term operation under continuous use.

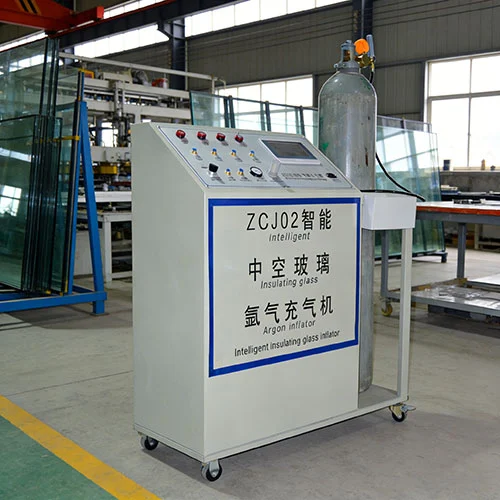

• Portable design: Weighing 24 kg and measuring 900×500×900 mm, the unit can be repositioned within a factory floor plan or transported for on-site filling work.

Technical Specifications

Product Details

• Automatic stop and alarm reminder for unattended operation cycles.
• 4 insulating glass units can be filled simultaneously through independent ports.
• Separately adjustable argon concentration and fill time for different product specifications.
• Multi-language operating system, selectable on the touchscreen.
• Precision pressure gauge and regulating valve prevent overpressure on glass panes.
• Sealing nozzles designed to minimize argon escape during the fill process.
• High-sensitivity touch screen provides stable control response.
• Lightweight construction allows the unit to be moved and repositioned as needed.
• Post-fill inspection can be carried out to verify argon concentration levels.
• One-key start for standard cycles; no complex programming required.
• Status indicator lights and high-precision components for real-time operational feedback.

Working Principle

The Argon Gas Filling Machine for Insulating Glass Units uses a pressure-differential filling method. High-purity argon from an external cylinder is fed through the machine’s internal regulator and directed into the sealed cavity of the insulating glass unit via dedicated nozzles. Built-in sensors monitor cavity pressure and gas flow, while the PLC controls the fill duration and stops the cycle when the target argon concentration is achieved. The incoming argon displaces the air originally inside the cavity, raising the unit’s thermal and acoustic insulation performance and reducing the risk of internal fogging over time.

FAQ

Q1: What types of insulating glass can this machine fill?

A: It is suitable for standard double and triple insulating glass units, as well as decorative and shaped glass, within the minimum size of 100×100 mm and maximum of 2000×6000 mm.

Q2: How is the argon concentration set?

A: The desired argon concentration and fill time are entered on the touchscreen. The PLC manages the process and stops automatically at the preset values.

Q3: What safety measures prevent glass breakage?

A: A pressure sensor monitors the cavity in real time. If the pressure exceeds the safe range, the machine triggers an alarm and halts filling to protect the glass.

Q4: Does the machine waste a lot of argon?

A: The filling nozzles are designed with a sealing mechanism that limits gas escape. Consumption is further controlled by the automated stop, which avoids overfilling.

Q5: Can the fill quality be checked?

A: Yes, the argon concentration inside the glass unit can be measured after the cycle with a separate analyzer to confirm compliance with required standards.

Q6: Is the machine portable?

A: With a weight of 24 kg and compact dimensions, it can be moved between work areas on a production floor or transported for on-site installation jobs.

Q7: What power supply is needed?

A: Standard configuration runs on 220V single-phase. Other voltage requirements can be accommodated at the time of order.

Q8: What maintenance is required?

A: Periodic inspection of nozzles, hoses, and pressure sensors is recommended. Commonly replaced items are available as spare parts, and the machine is designed for easy access to serviceable components.
